Philips EasyKey 9000 Series - Exploded Views

4

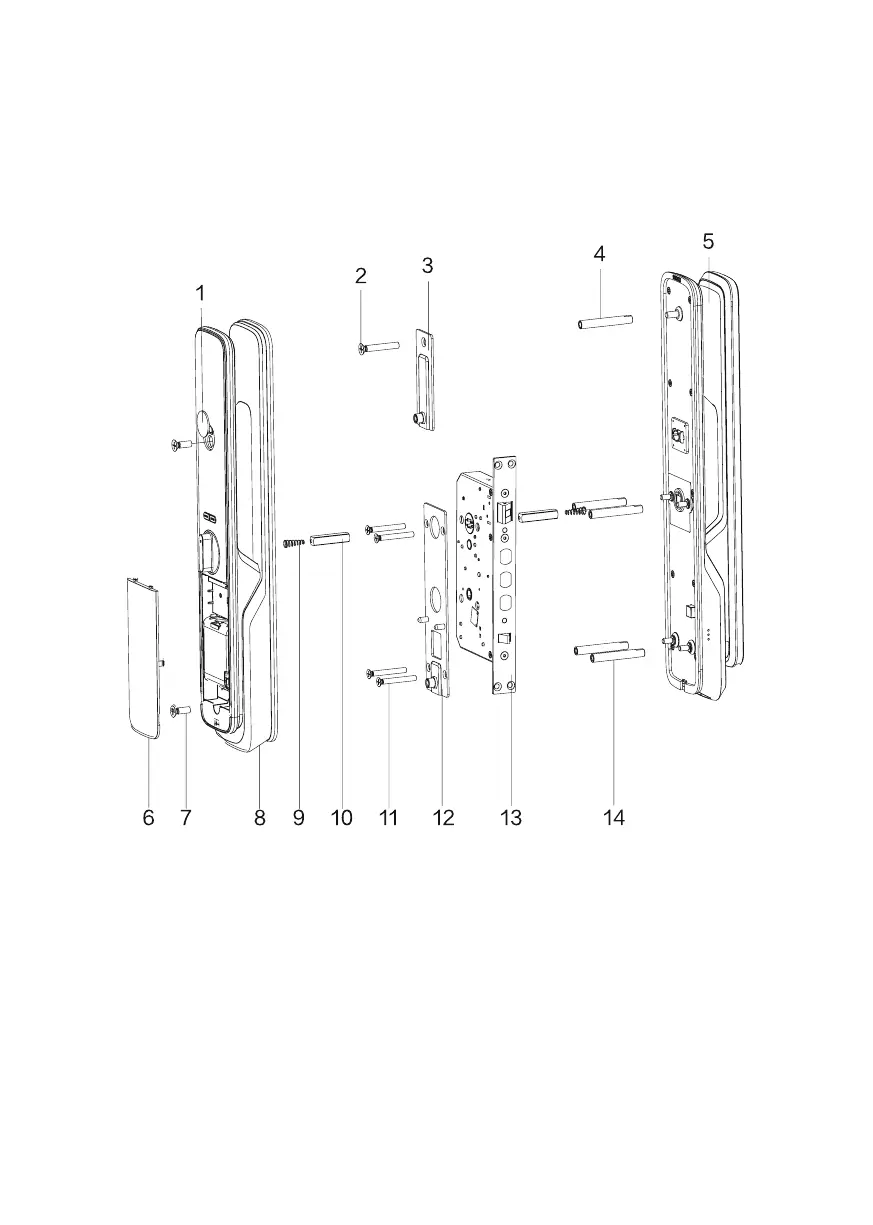

Exploded Views
1. Deco Cover
2. M6 Connecting Screw
(X1)
3. Upper Mounting
Plate Set (X1)
4. M6 Connecting Screw
Tube (X1)
5. Outside Escutcheon
(X1)
6. Battery Cover
7. M6 Anchor Screw (X2)
8. Inside Escutcheon
(X1)
9. Compressed Spring
(X2)
10. Square Shaft (X2)
11. M5 Connecting Screw
(X4)
12. Mounting Plate (X1)
13. Mortise (X1)
14. M5 Connecting
Screw Tube (X4)
