Philips EasyKey DDL608-5HWS - Assembly Procedures

7
1
2
3

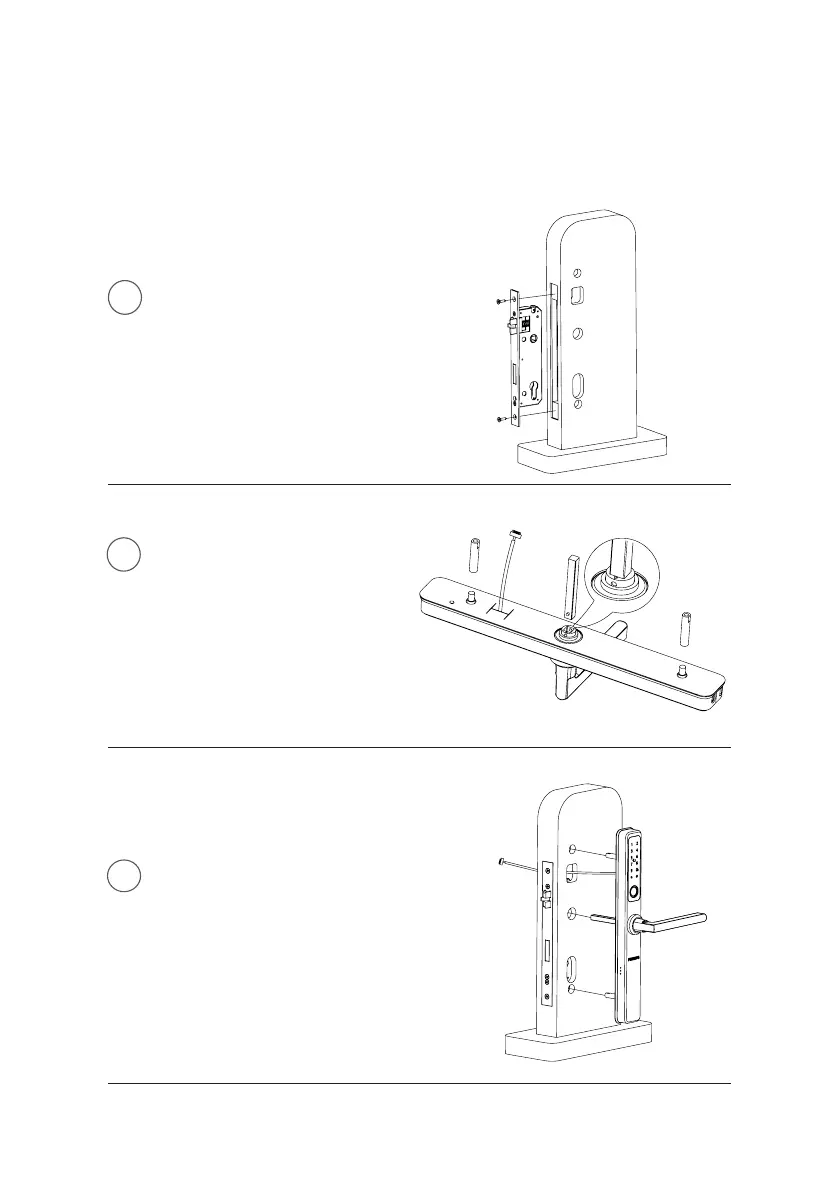

To drill holes in the door
according to the drilling template,
mount the mortise into the jamb,
and secure the anchor screws.
Attach the connecting screw
tubetothe exterior assembly
and insert the square shaft into
the hole accordingly. Please
ensurethattheprotrudingpart
on the square shaft is inserted
into the hole until it issecurely
seated.
Pass the connecting cable
through the hole, align and insert
the square shaft of the exterior
assembly into the rotary hole,
and ensure the exterior assembly
is rmly attached to the door
surface.
Assembly procedures
The following assembly procedures apply to the right-hand swing doors. For left-
hand swing doors, please read through the [Notice before assembling] and adjust
the lever/latch direction rst.
