Philips EM5.1E - Page 3

Technical Specifications, Connections and Chassis Overview
EN 3EM5.1E 1.
External 2: CVBS and SVHS - In (for VCR)

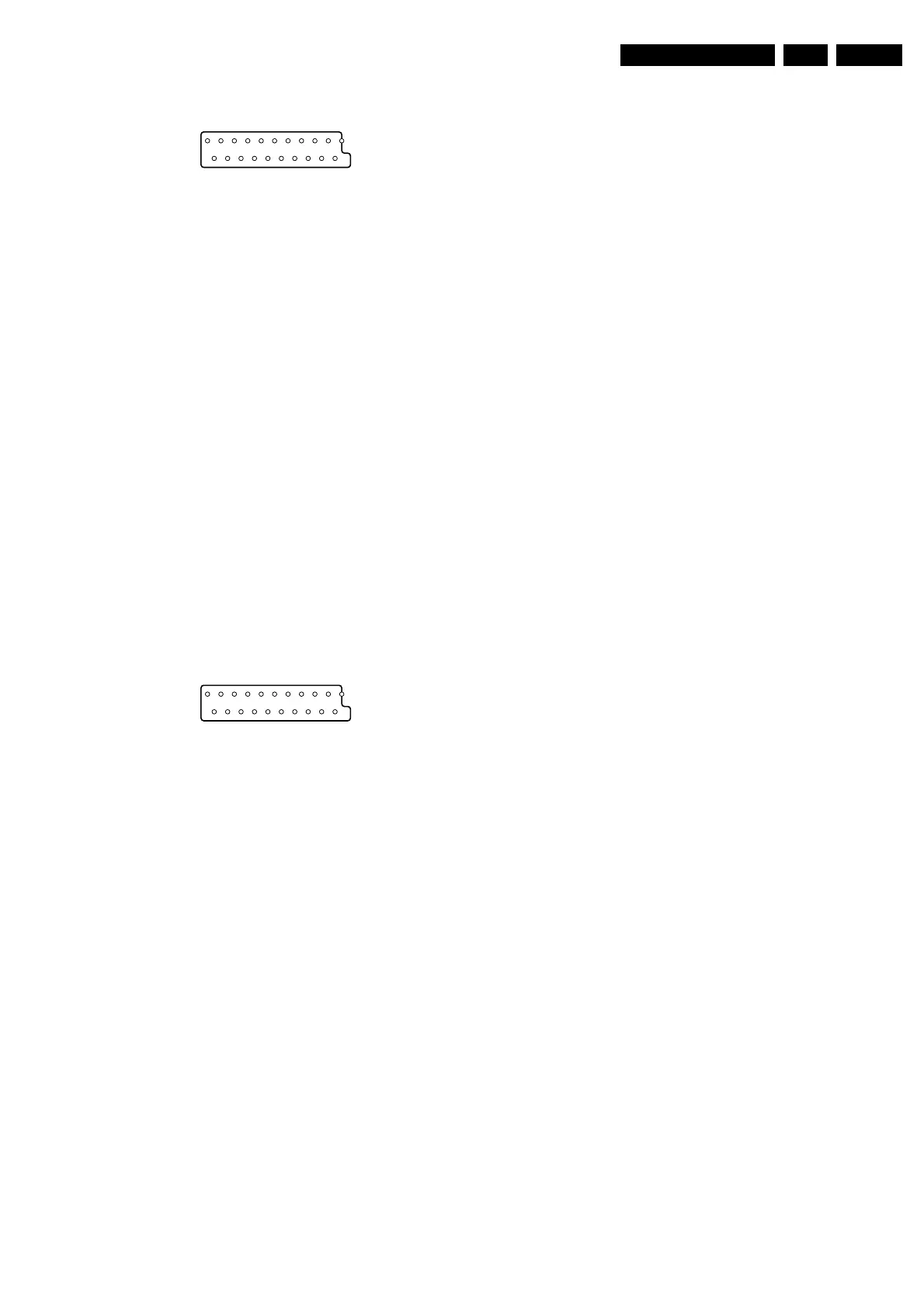

Figure 1-4 SCART connector
1 - Audio - R 0.5 Vrms / 1 kohm 
2 - Audio - R 0.5 Vrms / 10 kohm 
3 - Audio - L 0.5 Vrms / 1 kohm 
4 - Audio Ground 
5 - Audio Ground 
6 - Audio - L 0.5 Vrms / 10 kohm 
7 - C-out 0.7 Vpp / 75 ohm 
8 - CVBS-status 0 - 1.3 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3
9 - Video Ground 
10 - Easylink (P50) 
11 - n.c.
12 - n.c.
13 - Video Ground 
14 - Video Ground 
15 - C-in 0.7 Vpp / 75 ohm 
16 - n.c.
17 - Video Ground 
18 - Video Ground 
19 - CVBS-out 1 Vpp / 75 ohm 
20 - Y / CVBS-in 1 Vpp / 75 ohm 
21 - Shielding Ground 
External 3: RGB and CVBS - In
Figure 1-5 SCART connector
1-n.c.
2 - Audio - R 0.5 Vrms / 10 kohm 
3-n.c.
4 - Audio Ground 
5 - Audio Ground 
6 - Audio - L 0.5 Vrms / 10 kohm 
7 - Blue-in 0.7 Vpp / 75 ohm 
8 - CVBS-status 0 - 1.3 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3
9 - Video Ground 
10 - n.c.
11 - Green-in 0.7 Vpp / 75 ohm 
12 - n.c.
13 - Video Ground 
14 - Video Ground 
15 - Red-in 0.7 Vpp / 75 ohm 
16 - Status / FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 ohm 
17 - Video Ground 
18 - Video Ground 
19 - n.c.
20 - CVBS-in 1 Vpp / 75 ohm 
21 - Shielding Ground 
RJ45: Wireless Surround Transmitter - Out
1 - SDA2_TM Signal 
2 - SCL2_TM Signal 
3 - GND Ground 
4 - I2C_MUTE Signal 
5 - 15V Supply 
6 - AUDIO_
SL_S_TM Signal 
7 - GND_AUD Ground 
8 - PILOT_MUTE Signal 
Jack: Surround - Out
1 - Audio 0.2 - 2 Vrms / 10 kohm 
