Technical Specifications, Connections and Chassis Overview
EN 2 EM5.1E1.
1. Technical Specifications, Connections and Chassis Overview
1.1 Technical Specifications
1.1.1 Vision
Display type : CRT, Real Flat WS
Screen size : 28” (70 cm)
: 32" (82 cm)
: 36” (92 cm)
Tuning system : PLL
Colour systems : PAL B/G, D/K, I
: SECAM B/G, D/K, L/L’
: NTSC playback only
Channel selections : 100 presets
: UVSH
Aerial input : 75 ohm, IEC-type
1.1.2 Sound
Sound systems : FM-mono
: AM-mono
: FM-stereo B/G,
Czech
: NICAM B/G, D/K, I, L
Maximum power : 4 x 15 W rms (int.)
1.1.3 Miscellaneous
Mains voltage : 220 - 240 V
Mains frequency : 50 / 60 Hz
Ambient temperature : +5 to +45 deg. C
Maximum humidity : 90 % R.H.
Power consumption : ?
- Normal operation : ≈ 130 W
- Standby : < 1 W
1.2 Connections
1.2.1 Front View / Side Connections

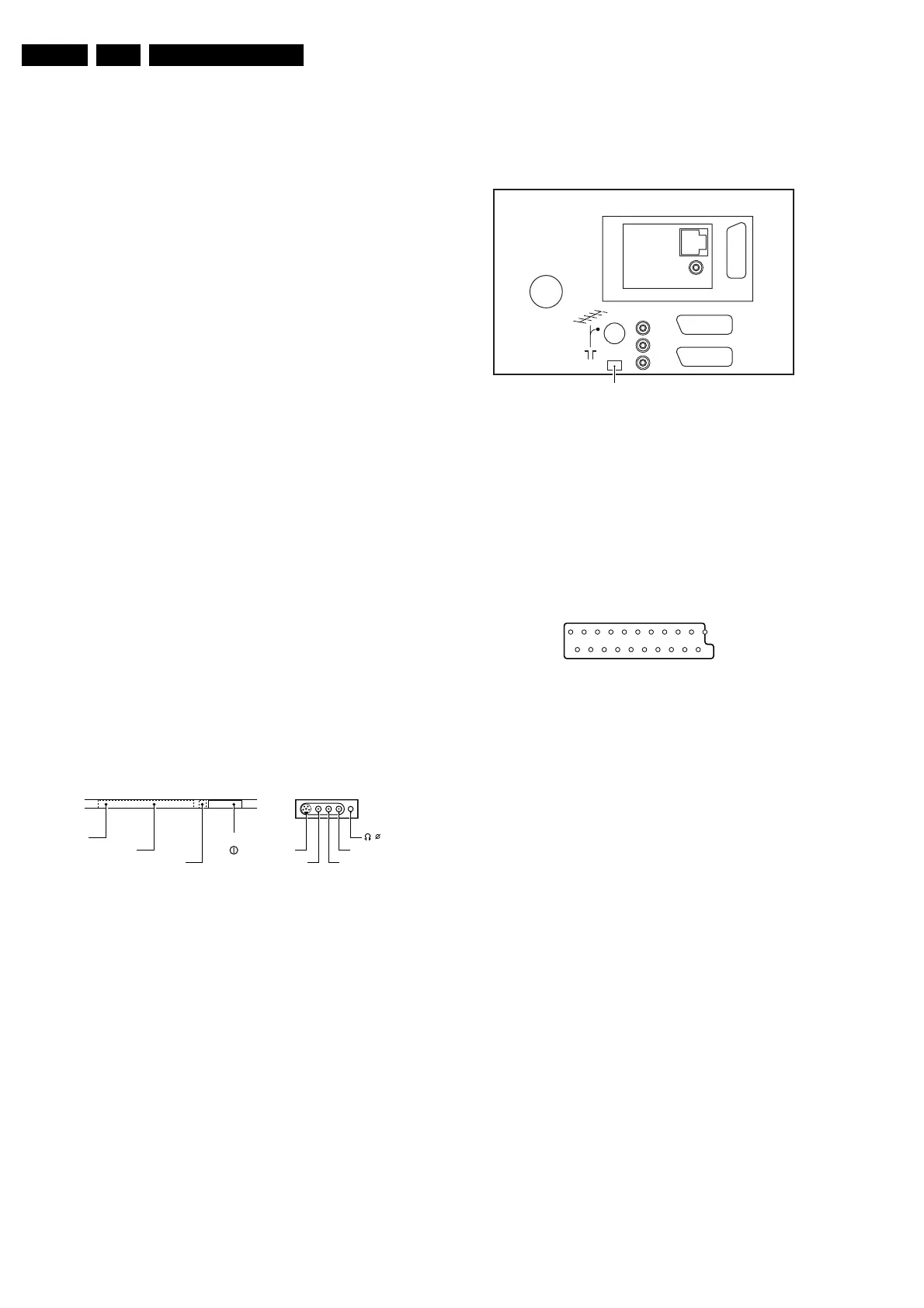

Figure 1-1 Front View and Side I/O
Hosiden: SVHS - In
1 - Y Ground 
2 - C Ground 
3 - Y 1 Vpp / 75 ohm 
4 - C 0.3 Vpp / 75 ohm 
Cinch: In
1 - CVBS 1 Vpp / 75 ohm 
2 - Audio - L 0.5 Vrms / 10 kohm 
3 - Audio - R 0.5 Vrms / 10 kohm 
Mini Jack: Headphone - Out
- Headphone 32 - 600 ohm / 10 mW 
1.2.2 Rear Connections
Figure 1-2 Rear View
Aerial - In
- IEC-type Coax, 75 ohm 
Cinch: Audio - Out
- Audio - R 0.5 Vrms / 1 kohm 
- Audio - L 0.5 Vrms / 1 kohm 
External 1: RGB/YUV and CVBS - In/Out
Figure 1-3 SCART connector
1 - Audio - R 0.5 Vrms / 1 kohm 
2 - Audio - R 0.5 Vrms / 10 kohm 
3 - Audio - L 0.5 Vrms / 1 kohm 
4 - Audio Ground 
5 - Audio Ground 
6 - Audio - L 0.5 Vrms / 10 kohm 
7 - Blue / U 0.7 Vpp / 75 ohm 
8 - CVBS-status 0 - 1.3 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3
9 - Video Ground 
10 - n.c.
11 - Green / Y 0.7 Vpp / 75 ohm 
12 - n.c.
13 - Video Ground 
14 - Video Ground 
15 - Red / V 0.7 Vpp / 75 ohm 
16 - Status / FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 ohm 
17 - Video Ground 
18 - Video Ground 
19 - CVBS-out 1 Vpp / 75 ohm 
20 - CVBS-in 1 Vpp / 75 ohm 
21 - Shielding Ground 
SK 1LIGHT SENSOR
STANDBY LED
IR-RECEIVER
CL 26532041_070.eps
110402
SVHS
VIDEO
AUDIO R
AUDIO L
3.5
CL 26532041_071.eps
110402
AUDIO OUT
SURR.
SURR.
L
R
EXT1
EXT3
EXT2
SERVICE
CONNECTOR
121
202
CL96532137_056.eps
171199
