PCS 103 873
12-2
MECHANICAL & ACCESSORIES PARTS LIST - MAIN UNIT SCREW LISTS - MAIN UNIT
166 D3 x 12
185 D3 x 12
186 D3 x 25
189 D3 x 12
198 M3 x 16
200 D3 x 12
204 M3 x 16
206 M3 x 6
207 D3 x 16
208 M3 x 6
209 M3 x 6
213 M3 x 6
214 D3 x 12
215 D3 x 12
216 D3 x 12
231 D3 x 12
232 M3 x 10
239 M3 x 10
240 D3 x 12
241 M3 x 10
242 M3 x 10
276 D3 x 12
277 D3 x 12
278 D3 x 12
279 D3 x 12
12-2
0101 3139 118 11820 Cabinet Front /21/21M
0101 3139 118 11790 Cabinet Front /22
0101 3139 118 13850 Cabinet Front /30
0101 3139 118 11680 Cabinet Front /37
0105 3139 118 12110 Button Set CDC Select
0106 3139 118 11070 Cover Tray CDC
0107 3139 118 11080 Cover Ornament CDC Tray
0108 4822 454 13408 Badge, Philips
0110 3139 118 12100 Cover Ornament CDC
0124 3139 118 11420 Button Power /21/21M/30
0124 3139 118 11090 Button Power /22/37
0126 3139 114 69060 Window IR
0127 3139 118 11410 Button RDS/News /22
0128 3139 118 12590 Window Display
0128 3139 118 11690 Window Display /37
0131 3139 114 68810 Lightguide Source Select
0132 3139 118 12150 Button Set Source Select
0134 3139 118 11140 Button Set Control
0135 3139 118 11110 Knob Jog Rotary
0136 3139 118 11740 Button Set Jog Sound
0138 3139 114 70220 Lightguide Jog DVD Rotary
0139 3139 118 11710 Knob Volume Rotary
0140 3139 118 11720 Ring Ornament Volume
0141 3139 118 11770 Button Set DVD Control
0142 3139 118 11730 Button Set Jog DVD
0144 3139 118 11170 Ring Ornament Jog Sound
0145 3139 118 11750 Cover Ornament Control
0146 3139 118 12170 Button Set DPL
0157 3139 118 11810 Knob Karaoke /21/21M
0158 3139 118 11780 Button Open/Close DVD
0160 3139 118 11800 Cover Tray DVD
0162 3139 118 11760 Cover Ornament Front
0164 3139 240 00010 DVD Logo
0210 3139 113 10570 Felt Cloth 0.2x160x53mm
0252 4822 462 40683 Foot Rubber (SQ)
0258 4822 462 40683 Foot Rubber (SQ)
0259 3139 114 69230 Cabinet Rear
0259 3139 114 71450 Cabinet Rear /37
0283 3139 114 70330 Plate FM Socket
0350 3139 118 77820 Left/Right LS Box
9965 000 05697 Center Box
9965 000 05698 Surround Box
0351 4822 303 50063 FM Aerial
0351 4822 320 11094 FM Aerial Wire /37
0356 3139 228 85410 Remote Control RC2567/01
0356 3139 228 84540 Remote Control RC2516/01
0383 4822 320 11642 Cinch Cable 1.7m
0384 4822 303 50082 AM Frame Aerial
0385 4822 321 10249
!
Mains Cord
0385 4822 321 10954
!
Mains Cord /30
0385 4822 321 11466
!
Mains Cord /37
0386 4822 263 21092
!
Adapter Plug /21
0387 3139 115 20050 Instruct. For Use /21/21M/30
0387 3139 115 20030 Instruct. For Use /22
0387 3139 116 19770 Instruct. For Use /37
1106-29 4822 466 93148 Spacer 5mm
1673 3139 110 34800 Flex Cable 19pin 18cm BD
1673 3139 110 34790 Flex Cable 23pin 18cm BD
1680 4822 320 12713 Flex Cable 6pin 34cm AD
1681 3139 110 33960 Flex Cable 4pin 12cm BD
1682 3139 110 34750 Flex Cable 5pin 8cm AD
1683 3139 110 34920 Flex Cable 8pin 28cm BD
1683 3139 110 34780 Flex Cable 4pin 28cm BD
1684 3139 110 34560 Flex Cable 19pin 28cm BD
1685 3139 110 34740 Flex Cable 8pin 18cm AD
1685 3139 110 34730 Flex Cable 12pin 18cm AD
1686 4822 320 12702 Flex Cable 6pin 14cm BD
1691 3139 110 34760 Flex Cable 9pin 28cm BD
1692 3139 110 34870 Flex Cable 9pin 22cm BD
1693 3139 110 34810 Flex Cable 16pin 14cm
1694 3139 110 34820 Flex Cable 22pin 14cm
5280 3139 118 32210
!
Mains Transformer /21/21M
5280 3139 118 32220
!
Mains Transformer /22/30
5280 3139 118 32200
!
Mains Transformer /37

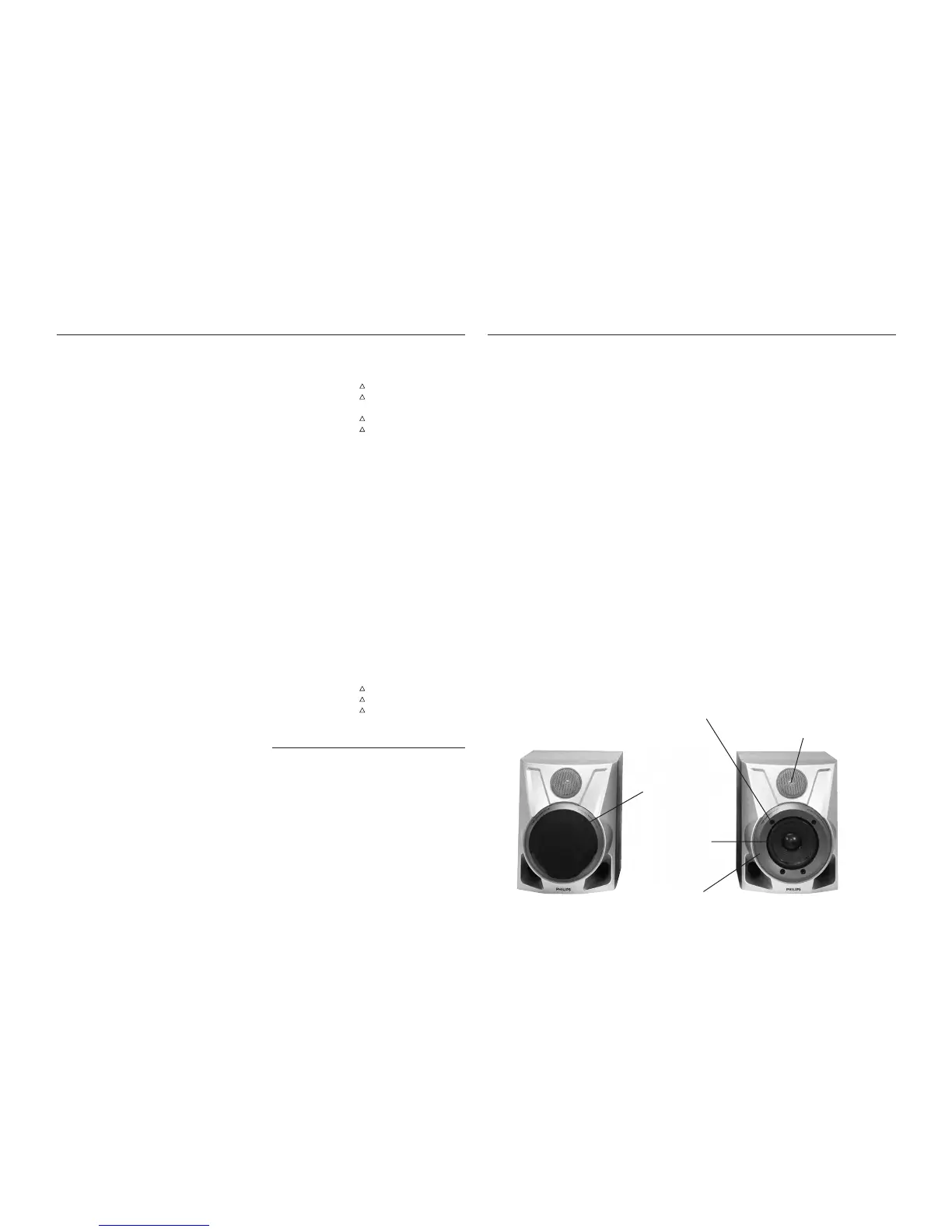

Left/Right Loudspeaker Box breakdown
9965 000 05538 Wire Assy w/Elco 2,2µF 50V
9965 000 05539 Woofer D5,25" 6R 50W Black
9965 000 04255 Tweeter D2,5" 8R 10W
9965 000 04256 Woofer Ring
9965 000 03233 Grommet
9965 000 04260 Cloth Frame Assembly
Note: Only the part mentioned in this list are normal
service spare parts.
280 D3 x 12
281 D3 x 12
282 D3 x 12
284 D3 x 12
285 D3 x 16
286 D3 x 12
288 D3 x 12
290 M3 x 10
291 D3 x 12
292 D3 x 12
293 D3 x 12
294 D3 x 12
295 D3 x 12
297 M3 x 10
298 M3 x 10
299 M3 x 10
300 M3 x 10
301 M3 x 10
302 D3 x 16
305 M3 x 10
306 M3 x 10
Grommet
Cloth Frame Assembly
Woofer Ring
Tweeter D2,5"
8R 10W
Woofer D5,25"
6R 50W Black
Note: The screw D3 x 10 for Woofer Ring is below the Gromet
