Philips FW-D5/21 - From Tuner Board

PCS 103 820
3-5
3-5

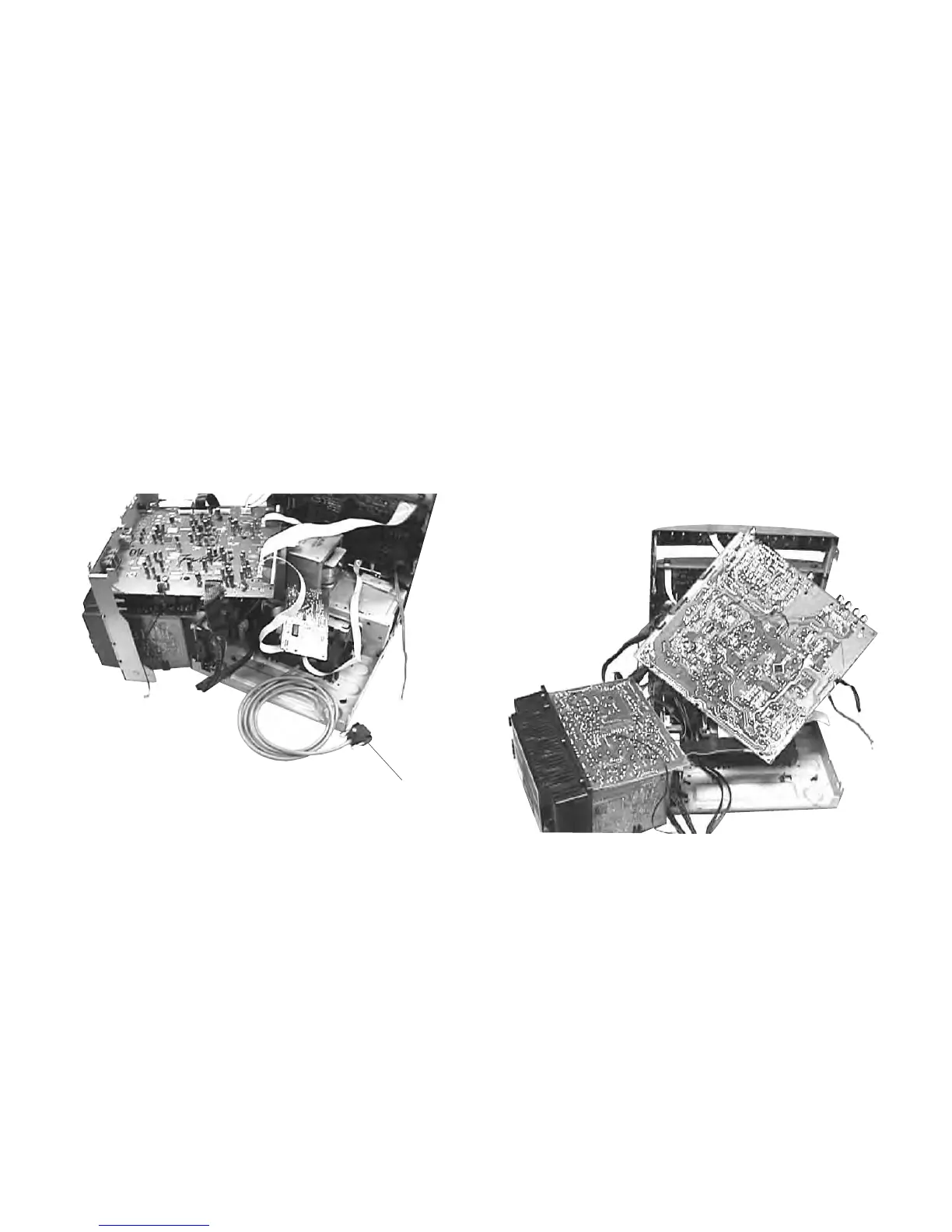

Service pos D - DAC Board
Note: The following cables should be disconnected to
achieve this Service position:
From AV board
1) conn. 1510 / 1523 to 3CDC-LC module
2) conn. 1528 to Headphone 1702
3) conn. 1529 / 1511 to Front conn. 1476 / 1474 (if
necessary)
4) conn 1517 to DAC board conn. 1905
(there will not be any signal in AV circuit part 3
because of this disconnection)
From Tuner board:
1) conn. 1121 / 1126 to Front conn. 44 / 43.
Connecting cable for PC
(ComPair connection)
Service pos E - AV Board / Supply & Amplifiers Board
Note: The following cables should be disconnected to
achieve this Service position:
From AV board
1) conn. 1510 / 1523 to 3CDC-LC module
2) conn. 1528 to Headphone conn. 1702
3) conn. 21 to Tuner conn 1124
4) conn 1529 / 1511 to Front conn.1476 / 1474
5) conn 1517 to DAC board conn. 1905
(there will not be any signal in AV circuit part 3
because of this disconnection)
From Tuner board:
1) conn. 1121 / 1126 to Front conn. 44 / 43.
