Philips FW-D5/21 - Front Board; AV Board; Tuner Board

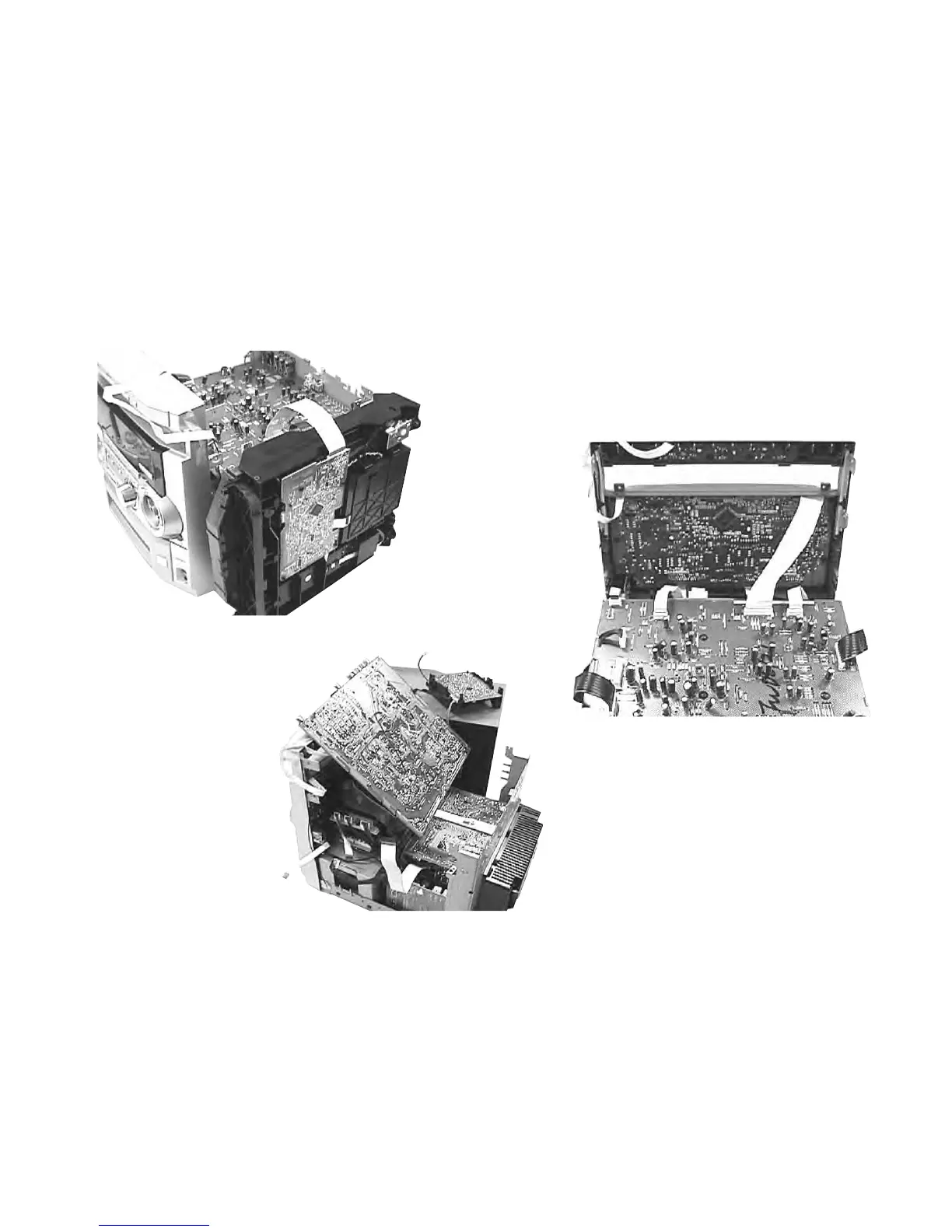

Service pos A - 3CDC-LC Module
3-4
PCS 103 819
3-4
Service pos B - AV Board / Tuner Board
Note: The following cables from the AV board should be
disconnected to achieve this Service position:
1) Conn. 1517 to DAC board conn. 1905
(there will not be any signal in AV circuit part 3
because of this disconnection)
2) Ground pin 1504
3) Conn. 1510 / 1523 to 3CDC-LC module
4) Conn. 1528 to Headphone 1702
5) Conn. 1529 / 1511 to Front 1476 / 1474
Service pos C - Front Board
Note: The following cables should be disconnected to
achieve this Service position:
1) Conn. 1510 / 1523 to 3CDC-LC module
