12
English
CONTROLS

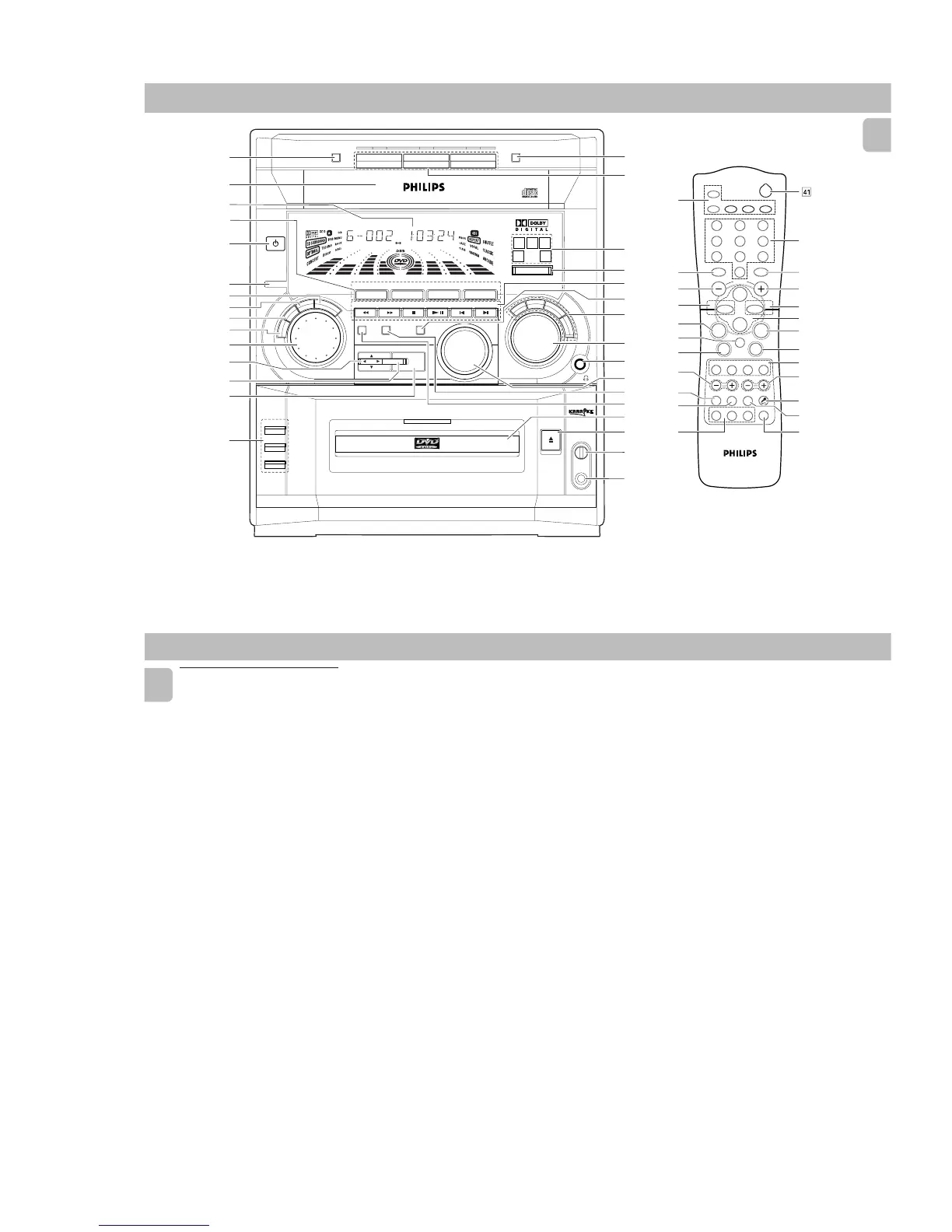

Controls on the system and
remote control
11
11
1 STANDBY ON
–to switch the system on or to standby
mode.
–to use for EASY SET.
22
22
2 IR SENSOR
–sensor for the infrared remote control.
33
33
3 SOURCE – to select the following:
DVD / (VCD•CD)
–to select DVD mode. When in DVD
mode, you can play DVD, VCD or CD.
CD / (CD 1•2•3)
–to select CD mode. When CD playback
is stopped, press to select disc tray 1,
2 or 3.
TUNER / (BAND)
–to select Tuner mode. When in tuner
mode, press to select the waveband:
FM or MW.
AUX / (CDR)
–to select sound from an external
source (e.g. TV, VCR, Laser Disc player,
DVD player or CD Recorder). When in
AUX mode, press to select either AUX
or CDR.
TV/AV
(only on the remote control)
–to select TV or Video mode.
44
44
4 DISPLAY SCREEN
–to view the current setting of the
system.
55
55
5 CD CAROUSEL TRAY
66
66
6 DISC CHANGE
–to change CD(s).
77
77
7 OPEN•CLOSE
– to open or close the CD carousel tray.
88
88
8 CD 1 / CD 2 / CD 3 (CD DIRECT
PLAY)
– to select a CD tray for playback.
99
99
9 SURROUND SOUND DISPLAY
PANEL
(for model FW-D5 only)
– to view the selected Surround setting.
00
00
0 SURROUND CONTROL (SURR)
(for
model FW-D5 only)
– to select Multichannel Sound, Stereo,
Surround or 3D Sound mode for DVD
operation only.
!!
!!
! MODE SELECTION
SEARCH•TUNING àá
( 12 )
for DVD/VCD/CD
–to search backward/forward
(except for CD playback in DVD-
VIDEO tray)
.
for TUNER
–to tune to a lower or higher radio
frequency.
for CLOCK
(on the system only)
–to set the hour.
for TV VOL.
–to adjust the TV volume if the
remote operates your TV.
STOP•CLEAR Ç
for DVD/VCD/CD
–to stop playback
(in DVD mode
only)
.
for CD
–to stop playback or to clear a
programme
(in CD mode only)
.
for TUNER
–to stop programming.
for DEMO
(on the system only)
–to start or stop demonstration
mode.
PLAY PAUSE ÉÅ
for DVD/VCD/CD
–to start or interrupt playback.
for DVD/VCD
–to watch a still picture.
í PREV / NEXT ë
(PRESET)
for DVD/VCD/CD
–to skip to the beginning of the
current, previous, or next title or
track.
for VCD only
–to select next or previous MENU
(for VCD with PBC on)
.
– to select next or previous VCD track
during playback
(for VCD with PBC
off)
.
for TUNER
–to select a preset radio station in
memory.
for CLOCK
(on the system only)
–to set the minute .
@@
@@
@ CLOCK/TIMER
– to view the clock, set the clock or set
the timer.
##
##
# SOUND CONTROL
– to select the desired sound feature :
VEC, PERSONAL, DSC or DBB.
$$
$$
$ SOUND JOG
–to select the desired sound effect of
VEC/PERSONAL/DSC/DBB setting.
You must select the respective sound
feature first.
VEC
–to select the desired Virtual
Environment Control effect : HALL,
CLUB, DISCO, CINEMA, CONCERT or
ARCADE.
PERSONAL
–to select up to 6 personal preferred
Spectrum Analyser settings :
PERSONAL 1-6.
DSC
–to select the desired Digital Sound
Control effect : OPTIMAL, CLASSIC,
TECHNO, VOCAL, ROCK or JAZZ.
DBB
–to select a Dynamic Bass Boost level :
BEAT, PUNCH or BLAST.
%%
%%
% n
–to connect headphones.
^^
^^
^ VOLUME
–to increase or decrease the volume.
&&
&&
& DIM
–to select brightness for the display
screen : DIM 1, DIM 2, DIM 3 or DIM
OFF.
