Philips L01.1U - Technical Specifications, Connections and Chassis Overview; 1.1 Technical Specifications; 1.2 Connections

Technical Specifications, Connections and Chassis Overview
EN 2 L01.1U AC1.
1. Technical Specifications, Connections and Chassis Overview
Note: Described specifications are valid for the whole product
range.
1.1 Technical Specifications
1.1.1 Reception
Tuning system : PLL
Color systems : NTSC M/N
Sound systems : BTSC non-DBX
: BTSC DBX
Channel selections : 181, full cable
IF picture carrier : 45.75 MHz
Aerial input : 75 Ohm, F-type
A/V Connections : NTSC M/N
1.1.2 Miscellaneous
Audio output:
Stereo versions : 2 x 1 W
:2 x 3 W
:2 x 5 W
: 2 x 10 W
Mono versions : 1 x 1 W
:1 x 3 W
:1 x 4 W
:2 x 2 W
Power supply:
Mains voltage range : 90 - 140 VAC
Mains frequency : 60 Hz
Ambient conditions:
Temperature range : +5 to +45 deg. C
Maximum humidity : 90 % R.H.
Power consumption:
Normal operation : from 81 W (20”)
: to 145 W (32”)
Standby : < 3 W
1.2 Connections
1.2.1 Front or Top Control / Front or Side Connections

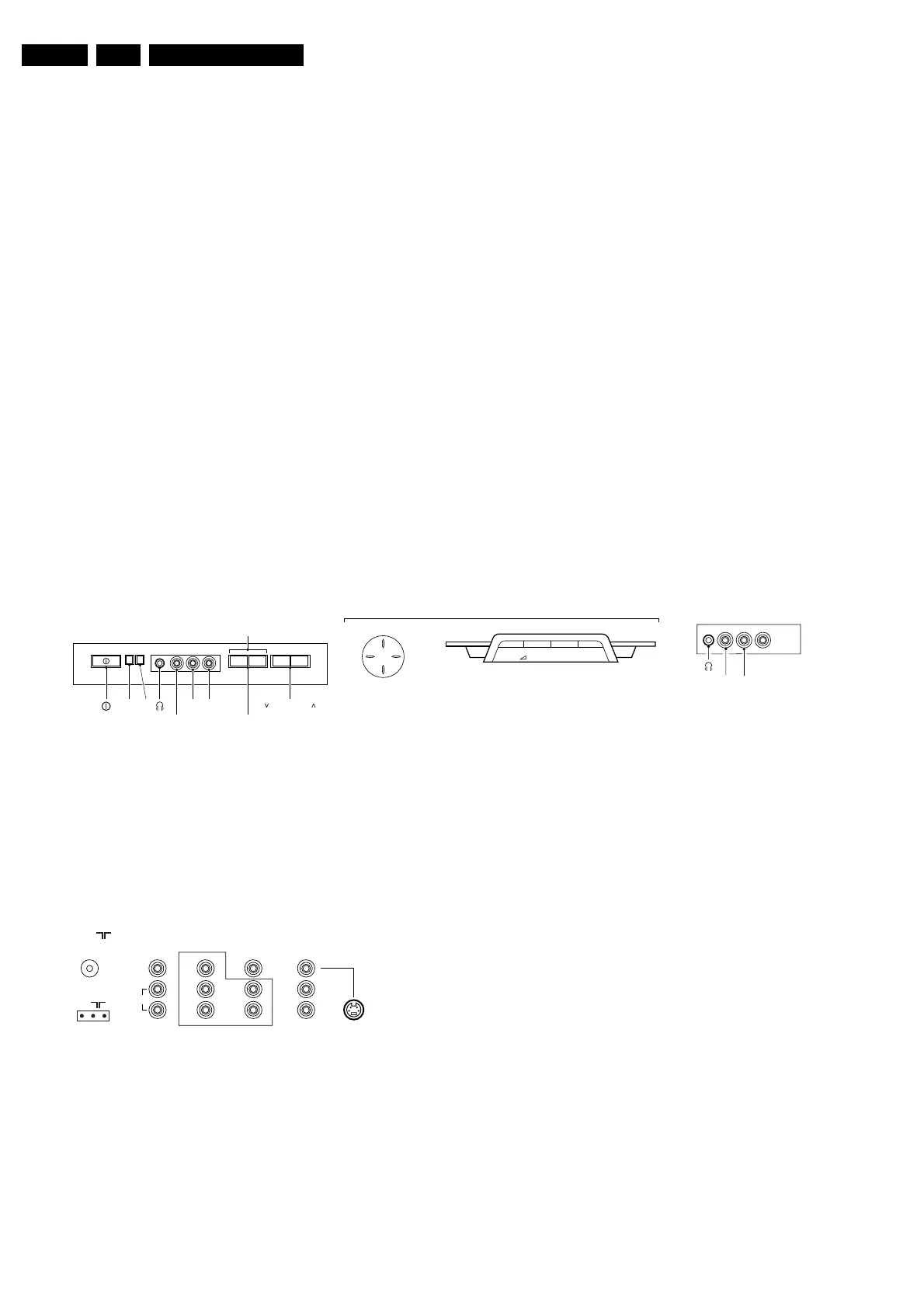

Figure 1-1 Front/Top control and Side I/O
Audio / Video In
1 - Video 1 Vpp / 75 Ohm 
2 - Audio - L 0.2 Vrms / 10 kOhm 
3 - Audio - R 0.2 Vrms / 10 kOhm 
4 - Headphone
(3.5 mm) 8 - 600 Ohm / 4 mW 
1.2.2 Rear Connections
Figure 1-2 Rear connections
Monitor Out
1 - Video (CVBS) 1 Vpp / 75 Ohm 
2 - Audio - L 0.5 Vrms / 1 kOhm 
3 - Audio - R 0.5 Vrms / 1 kOhm 
YUV In
1 - Y 0.7 Vpp / 75 Ohm 
2 - U 0.7 Vpp / 75 Ohm 
3 - V 0.7 Vpp / 75 Ohm 
AV1 In
1 - Video (CVBS) 1 Vpp / 75 Ohm 
2 - Audio - L 0.5 Vrms / 10 kOhm 
3 - Audio - R 0.5 Vrms / 10 kOhm 
AV2 In
1 - Video (CVBS) 1 Vpp / 75 Ohm 
2 - Audio - L 0.5 Vrms / 10 kOhm 
3 - Audio - R 0.5 Vrms / 10 kOhm 
AV2 In (SVHS)
1 - Ground GND 
2 - Ground GND 
3 - Y 1 Vpp / 75 Ohm 
4 - C 0.3 Vpp / 75 Ohm 
RED
LED
V+ ORV-
P-
P+
R AUDIO L
R AUDIO L
INSTALL/MENU
+ VOLUME -
CHANNEL
VIDEO
CL 26532119_053.eps
181202
IR
TOP CONTROL SIDE I/O
FRONT CONTROL + FRONT I/O
VOLUME-+-+PROGRAM
P
VIDEO
L/Mono
R
Y
Pb
Pr
V
L
R
V
L
R
S-VIDEO
MONITOR
OUT
(OPTIONAL)
75 Ohm
FM
AV1
IN
COMPONENT VIDEO INPUT
AV2
IN
CL 26532119_054.eps
161202
AUDIO
