EN 2 LC4.9E AB1.
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1.1 Technical Specifications
1.2 Connection Overview
1.3 Chassis Overview
Notes:
• Figures can deviate due to the different set executions.
• Specifications are indicative (subject to change).
1.1 Technical Specifications
1.1.1 Vision
Display type : Plasma
Screen size : 42” (107 cm), 16:9
Resolution (HxV pixels) : 852 x 480
Contrast ratio :
- 42PF5520D/10 : 10,000:1
- 42PF7520D/10 : 13,000:1
Light output (cd/m
2
) : 1500
Viewing angle (HxV degrees) : 160x160
Tuning system : PLL
Reception standards : Analogue &
: digital terrestrial TV
: (DVB-T)
TV Colour systems : PAL B/G, D/K, I
: SECAM B/G, D/K, L/L’
Video playback : PAL B/G; SECAM L/L’
: NTSC M/N 3.58, 4.43
Supported computer formats : VGA (640x480)
: VGA (720x400)
: VGA (720x480)
: MAC (640x480)
: MAC (832x624)
: SVGA (800x600)
: XVGA (1024x768)
: WXGA (1280x768)
: WXGA (1280x960)
: WXGA (1280x1024)
Supported video formats : 640x480i - 1fH
: 720x576i - 1fH
: 640x480p - 2fH
: 720x576p - 2fH
: 852x480p - 2fH
: 1920x1080i - 2fH
Presets/channels : 100 presets
Tuner bands : VHF
: UHF
: S-band
: Hyper-band
1.1.2 Sound
Sound systems : FM-mono
: FM-stereo B/G
: NICAM B/G, D/K, I, L
: AV Stereo
Maximum power (W
RMS
) : 2 x 15
1.1.3 Miscellaneous
Power supply:
- Mains voltage (V
AC
) : 220 - 240
- Mains frequency (Hz) : 50 / 60
Ambient conditions:
- Temperature range (°C) : +5 to +40
- Maximum humidity : 90% R.H.
Power consumption
- Normal operation (W) : ≈ 450
- Stand-by (W) : < 2
Dimensions (WxHxD cm) : 124x68x10.4
Weight (kg) : 42
1.2 Connection Overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.
1.2.1 Side I/O connections

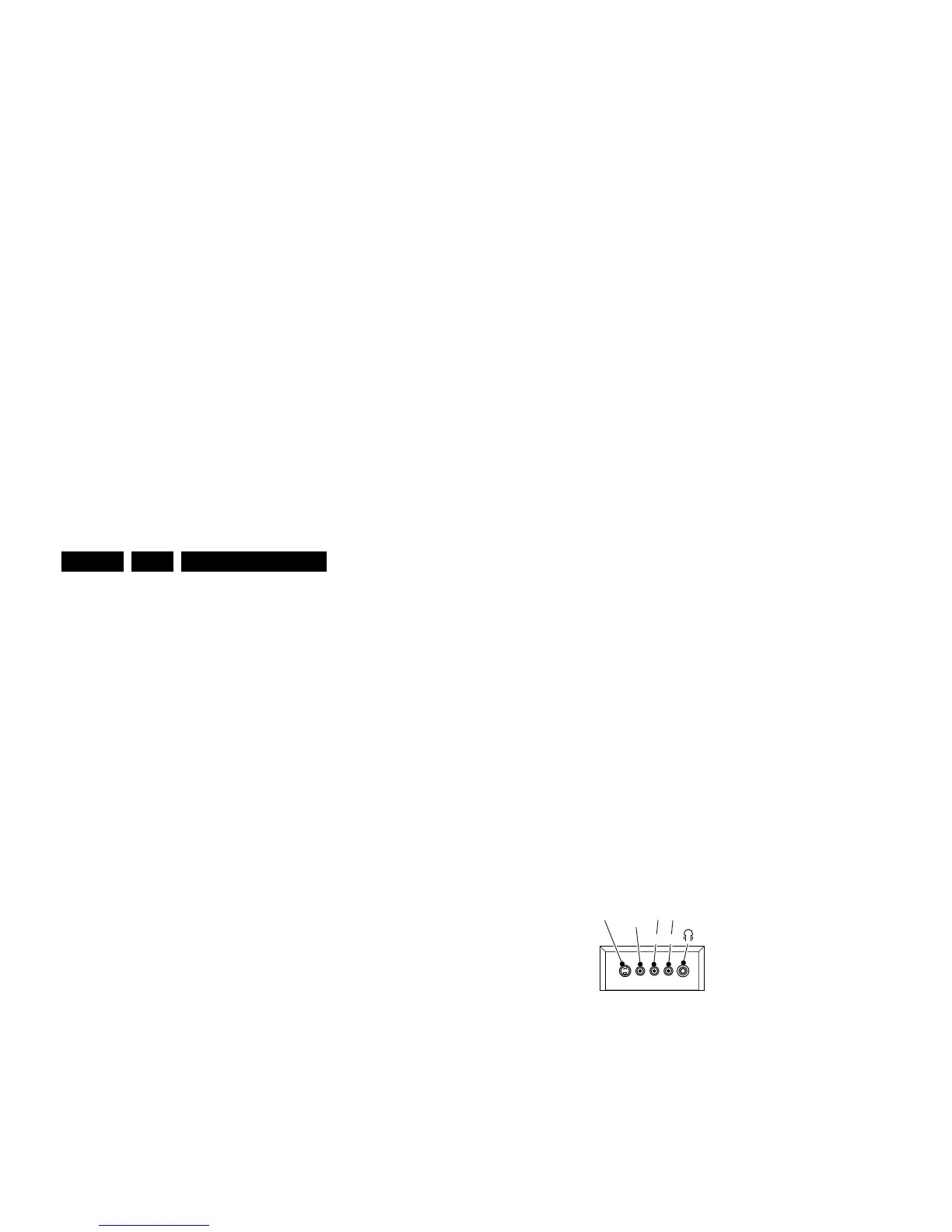

Figure 1-1 Side I/O connections
S-Video (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
/ 75 ohm j
Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
Mini Jack: Audio Head phone - Out
Bk - Head phone 32 - 600 ohm / 10 mW ot
1.2.2 Rear Connections
Figure 1-2 Rear I/O
Aerial - In
- - IEC-type (EU) Coax, 75 ohm D
Mini Jack: Audio - In
1 - Ground Gnd H
2 - Audio L 0.5 V
RMS
/ 10 kohm j
3 - Audio R 0.5 V
RMS
/ 10 kohm j
LR
AudioS-Video Video
E_14710_005.eps
210404
18
916
17
24
C5
C1 C2
C3 C4
EXT 2 EXT 1
DVI
AUDI O
F_15660_001.eps
280705
DVIDVI-I
Audio In
EXT 2 UART I
2
CEXT 1
ComPair
AERIAL IN
SPDIFPCMCIA
DATA
