Philips LX3000D - Location of Pc Boards

1-2

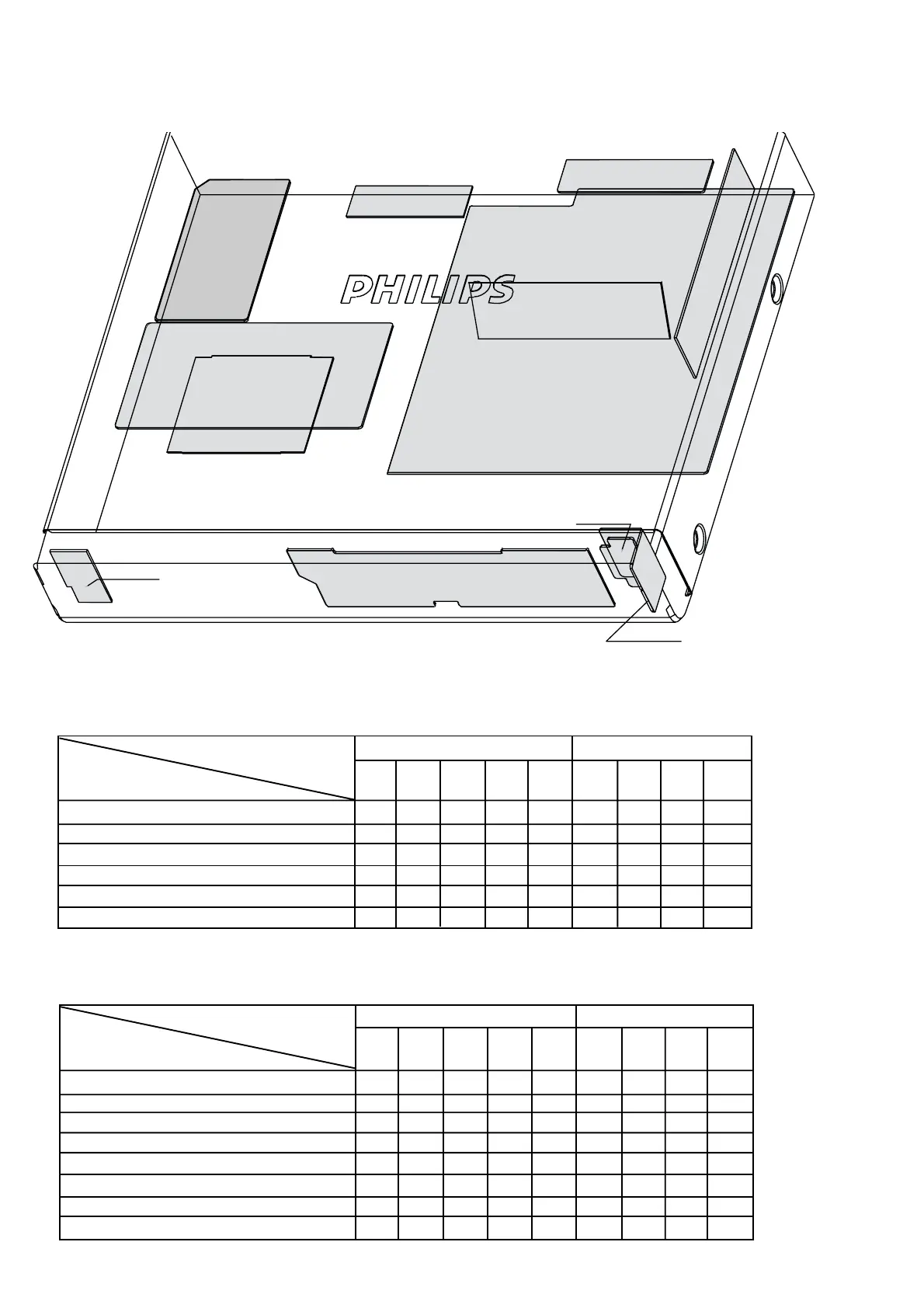

LOCATION OF PC BOARDS
VERSION VARIATION:
SURROUND PCB
POWER PCB
SERVO PCB
LED PCB
MPEG PCB
KEY PCB
MAIN PCB
SPEAKER JACK PCB
RGB/SCART PCB
VOLUME PCB
EAR PHONE PCB
TUNER PCB
/21L /21S /22S /30S /37S /21H /21R /33S /37S
RDS function x
Progressive scan xxxx
Scart board x
RGB board x x x x xxxx
Power PCB (110V~127V/120V) x x x x
Power PCB (220V~240V) x x x x x
Type /Versions: LX3000D LX3500D
Features &
Board in used
/21L /21S /22S /30S /37S /21H /21R /33S /37S
SW3000/00S x x x
SW3000/06S x
SW3000/17S x
SW3500/02S x x
SW3500/06S x
SW3500/17S x
Type /Versions: LX 3000D LX 3500D
Active Subwoofer:
