i
h
f
g
b
e
j
a
d
l
k
m
n
o
c
p
2

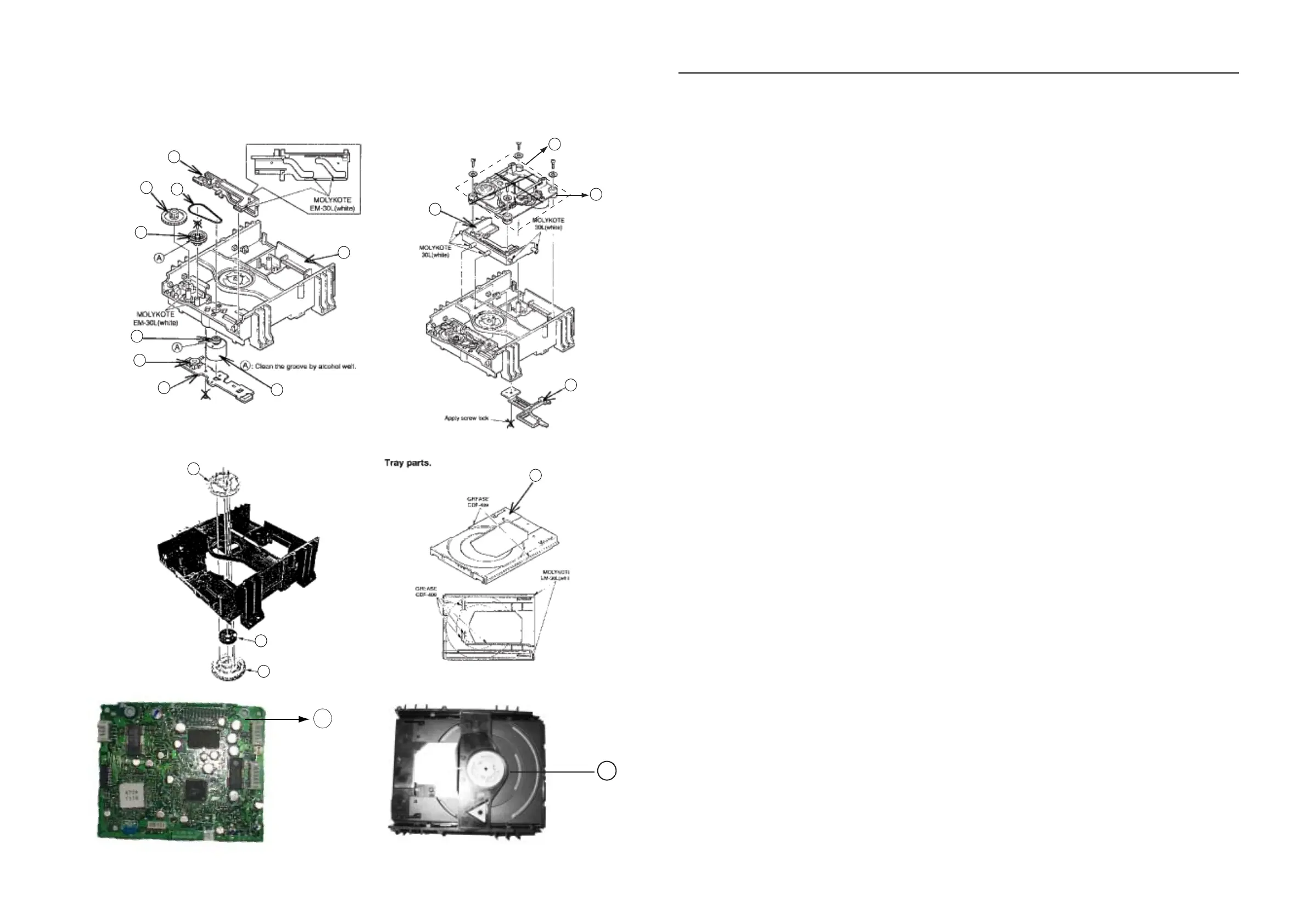

Exploded View - DVD Loader
7-7
Without DVD Drive
1
3
1 9965 000 13082 SERVO PC BOARD ASSEMBLY
2 9965 000 13083 DVD DRIVE MECHANISM
3 9965 000 13084 LOADER MECHANISM
(without Servo
Board and DVD Drive mechanism)
c 9965 000 13085 TRAY
f 9965 000 13086 BELT
j 9965 000 13087 SWITCH LEVER
p 9965 000 13088 SPACER MECHA (SUSPENSION)
d+e 9965 000 13089 MOTOR W/PULLEY ASSEMBLY
9965 000 12822 COMPLETE DVD MODULE
(with Servo
Board and DVD Drive mechanism)
9965 000 16344 FLEX CABLE 24PIN 24CM
(for connection
between DVD's OPU and Servo Board)
Note: Only the parts mentioned in this list are normal service spare
parts.
7-8
MECHANICAL / ELECTRICAL PARTS LIST - DVD MODULE
