Philips LX3000D User Manual

3-1
DISASSEMBLY INSTRUCTIONS
1) Open the DVD Tray by using the Open/Close Button
while the Set is ON and disconnect the mains supply after
removing the Tray Cover.
Note: If this is not possible, the DVD Tray has to be open
manually.
To manually open the DVD Tray, place the set on its right
side. Insert a mini screw driver with diameter 2mm and
50mm length into the slot on the bottom of DVD tray and
slide it towards the right as shown in figure 1 until the Tray
moves out of the Front Panel.
3) Loosen 11 screws and remove the Top Cover by lifting the
rear portion upwards before sliding it out towards the rear.
-7 screws on the back
-2 screws each on the left & right side
4) Loosen 7 screws & lift up the top edge of Front Panel
assembly to free some catches (see figure 3) before
sliding it out towards the front.
-5 screws on the bottom
-1 screw each on the left & right side
Dismantling of the Key Board Assembly
2) Return the set to its upright position and remove the Tray
Cover as shown in Figure 2 and close the tray manually
by pushing it back in.

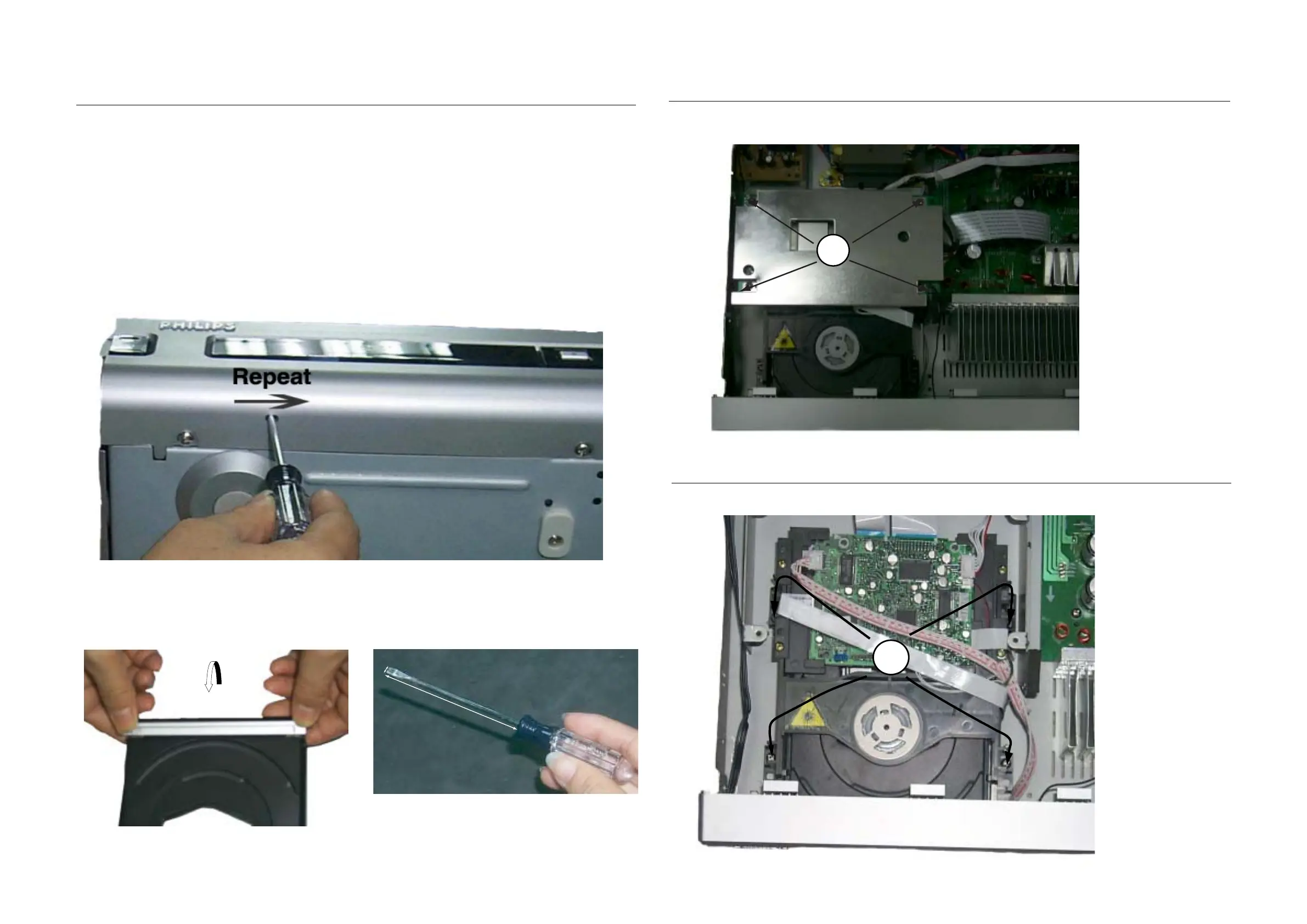

Figure 1
Insert a mini screw driver (as shown in figure 3)
into the slot and slide it towards the right
Figure 2
Figure 3
2mm
50m
m
3-1
Dismantling of the MPEG Board
1) Loosen 4 screws A to remove the metal cover together
with MPEG board and remove the connector as shown in
figure 4.
Dismantling of the DVD Module
1) Loosen 4 screws B to remove the DVD module as shown
in figure 5 .
Figure 4
B
Figure5
A
Note: Do not lost the limited
between the MPEG
board and the servo
board
