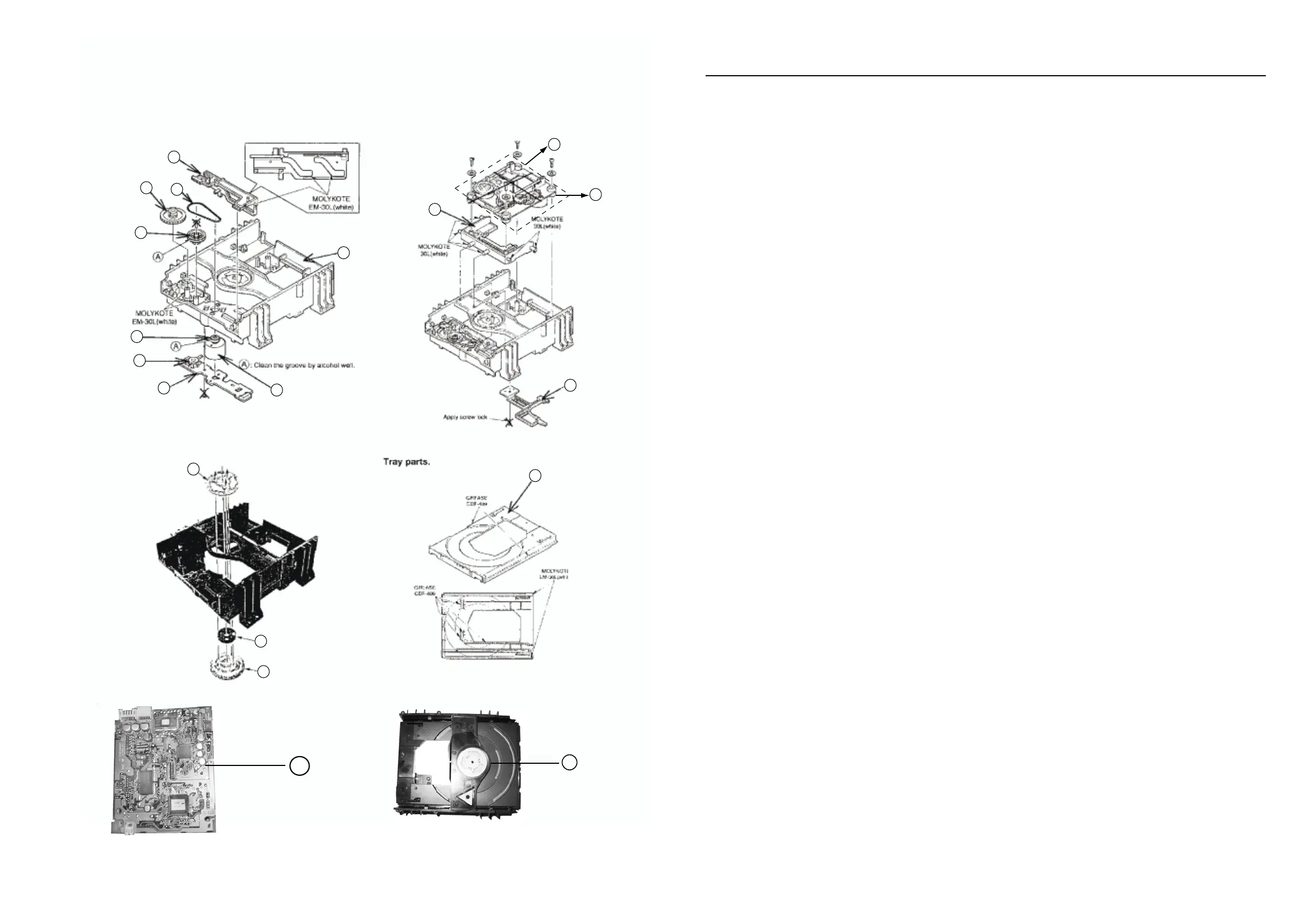

Exploded View - DVD Loader
7A-7
Without DVD Drive
3
1
1 9965 000 16291 SERVO PC BOARD ASSEMBLY
2 9965 000 16292 DVD DRIVE MECHANISM
3 9965 000 16293 LOADER MECHANISM
(without Servo
Board and DVD Drive mechanism)
c 9965 000 13085 TRAY
f 9965 000 13086 BELT
j 9965 000 13087 SWITCH LEVER
p 9965 000 13088 SPACER MECHA (SUSPENSION)
d+e 9965 000 13089 MOTOR W/PULLEY ASSEMBLY
9965 000 15489 Complete DVD MODULE KIT772SI
(with
Servo Board and DVD Drive mechanism)
9965 000 16344 FLEX CABLE 24PIN 24CM
(for connection
from DVD's OPU to Servo Board)
9965 000 16345 FLEX CABLE 6PIN 15CM
(for connection
from DVD's small pcb to Servo Board)
Note: Only the parts mentioned in this list are normal service spare
parts.
