Philips LX3000D User Manual

!!
!!
!!
!!
!!
!!
!!
!!
!!
!
!!
!!
!!
CAUTION
FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE REPLACE
WITH SAME TYPE FUSE.
AVIS:
UTILISER UN FUSIBLE DE
RECHANGE DE MEME TYPE
AC OUT
T3.15A/250V FOR UL/CSA
T3.15A L/250V FOR IEC
A
B
C
D
E
0
LVP0191C001
C982 D3
C987 D2
C988 B2
C989 B2
C990 B3
CN203 B3
CN901 E1
CN902 E3
D981 B1
D982 B1
D983 B3
D984 B4
F981 D2
IC982 B3
Q981 C4
R981 B4
R982 E3
R983 B3
R985 A2
RL981 C3
T902 B2

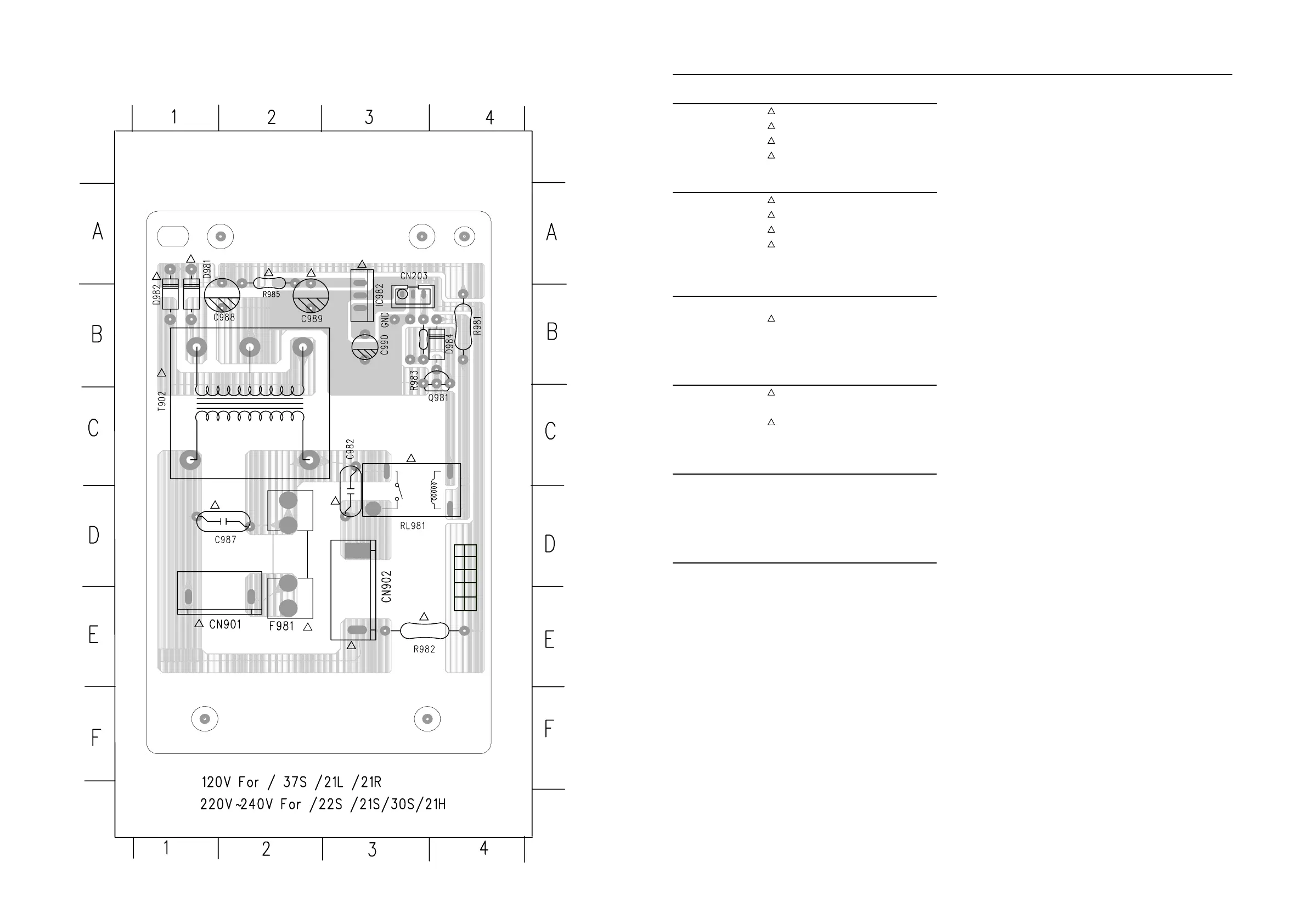

PCB LAYOUT - POWER BOARD
12-3
12-4
MISCELLANEOUS
CN901 9965 000 12636
!
CONNECTOR 4 PIN P=3,96MM
CN902 9965 000 12601
!
CONNECTOR 5PIN P=3,96MM
F981 9965 000 12500
!
FUSE 3,15A 250V SLOW
RL981 9965 000 09708
!
RELAY GJ-SH-112DM 320R
CAPACITORS
C982 9965 000 12604
!
0,01UF 20%
C987 9965 000 12604
!
0,01UF 20%
C988 9965 000 12605
!
220UF 35V 20%
C989 9965 000 12605
!
220UF 35V 20%
C990 4822 124 40248 10UF 20% 63V
RESISTORS
R981 4822 116 52195 47R 5% 0,5W
R982 9965 000 12606
!
4,7M 1/2W 10% /21L/21R/37S
R983 4822 050 21003 10K 1% 0,6W
R985 4822 050 13901 390R 1/4W 5%
COILS & FILTERS
T902 9965 000 12602
!
TRANSFORMER 120V 60HZ
(For /21L/21R/37S)
T902 9965 000 12603
!
TRANSFORMER 230V 50HZ
(For /21H/21S/22S/30S)
DIODES
D981 4822 130 31438 1N4001G
D982 4822 130 31438 1N4001G
D983 4822 130 31438 1N4001G
D984 4822 130 31438 1N4001G
TRANSISTORS & INTEGRATED CIRCUITS
IC982 5322 209 81331 MC7805ACT
Q981 4822 130 41651 2SC2001L
Note: Only the parts mentioned in this list are normal service spare
parts.
ELECTRICAL PARTS LIST - POWER BOARD
