Philips LX3600D Service Manual

4-2

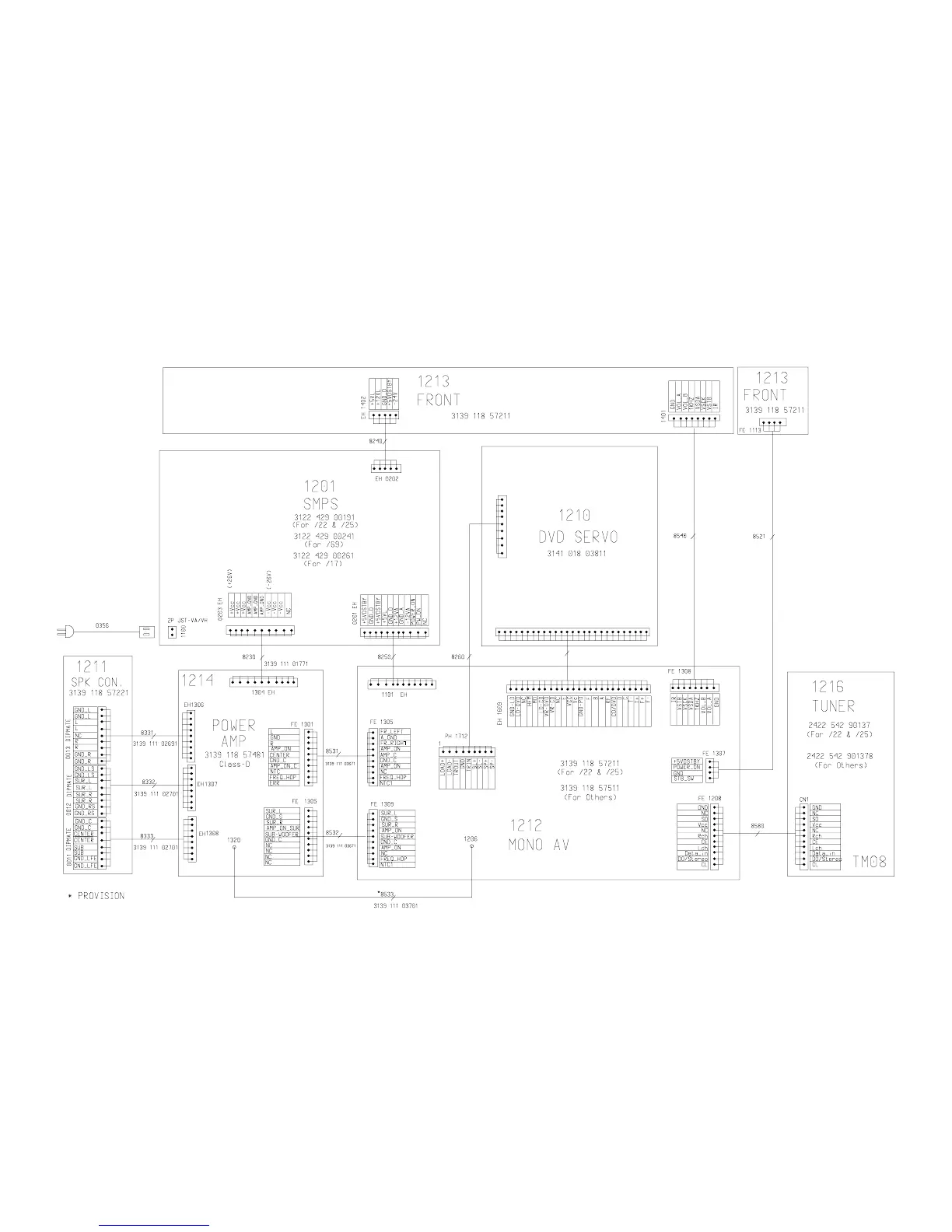

WIRING DIAGRAM
4-2
5
100mm
140mm
AD
1
140mm
10P
10P
1
1
8p 100mm
3139 110 28081
220mm
FE
1p
EH
3139 110 34581
1
24
1
1
PH 9P
120mm
24
340mm
1
1
AD
1
1
EH 5P
1
1
140mm
1
1
BD
1
3139 110 38821
3139 110 35391
EH 11P
EH 10P
1
EH
3139 110 35910
9P
3139 111 01751
280mm
1
1
FFC BD 11p
8p 100mm
480mm
1
1
FFC, 0.5mm pitch
10
11
120mm
100mm
1
1
AD 4P
8P
EH
1
24p
LX3600D/22 Set Wiring ...37110 dd wk334.5

Philips LX3600D Specifications

Picture/Display

aspect ratio	4:3, 16:9

Sound

D/A converter	24 bit, 96 kHz
frequency response	30-20000 Hz
output power (RMS)	6 x 50 W

Loudspeakers

satellite speaker freq range	120-20000 Hz
satellite speaker impedance	4 ohm
subwoofer freq range	30-120 Hz

Video Playback

number of discs	1
video disc playback system	NTSC, PAL
video enhancement	Progressive Scan

Audio Playback

compression format	Dolby Digital, DTS, MP3, PCM
MP3 bit rates	32-256 kbps and VBR
playback media	CD, CD-R, CD-RW, MP3-CD

Tuner/Reception/Transmission

auto digital tuning	Yes
number of preset channels	20
tuner bands	FM Stereo, MW

Power

power supply	110-240V, 50/60 Hz
standby power consumption	< 2 W
total sound power (RMS)	300 W

Dimensions

center speaker dimensions (W x H x D)	234 x 96 x 70 mm
set dimensions (W x H x D)	360 x 54 x 316 mm
subwoofer dimensions (W x H x D)	220 x 230 x 360 mm
