Philips LX3600D Service Manual

1-2

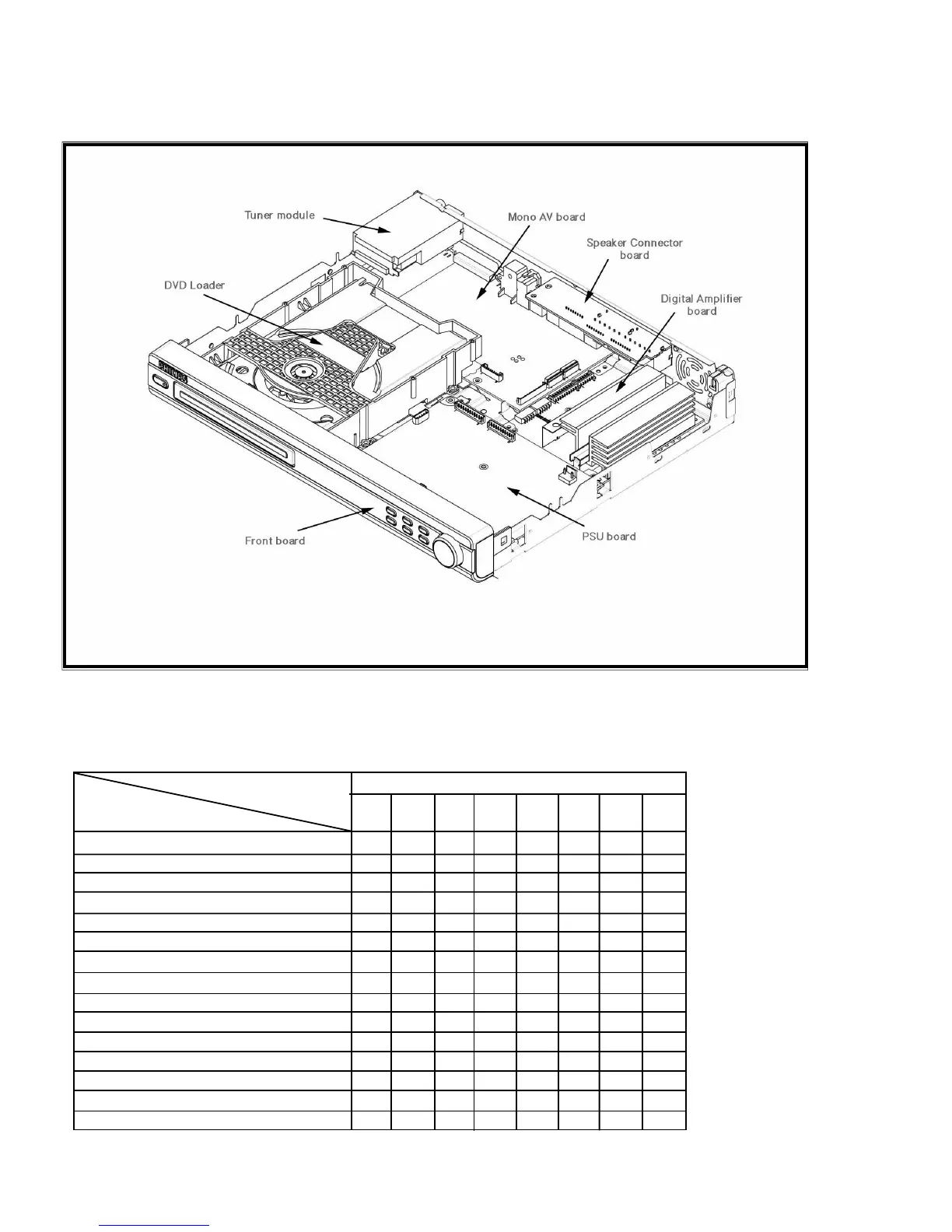

LOCATION OF PC BOARDS
/17 /22 /25 /69 /75 /78 /93
Progressive Scan x x
Voltage Selector x
1)
x
Aux-In xxxxxxx
TV-In x x x x x
Line-Out xxxxxxx
Composite (CVBS) Output x x x x x
S-Video Output xxxxxxx
Component (Pr/Y/Pb) Outputs x x x x x
SCART Output x x
1)
Production start-up with 220-240V PSU before changeover to PSU with voltage selector
VERSION VARIATIONS:
Type /Versions: LX3600D
Features &
Board in used:

Philips LX3600D Specifications

Picture/Display

aspect ratio	4:3, 16:9

Sound

D/A converter	24 bit, 96 kHz
frequency response	30-20000 Hz
output power (RMS)	6 x 50 W

Loudspeakers

satellite speaker freq range	120-20000 Hz
satellite speaker impedance	4 ohm
subwoofer freq range	30-120 Hz

Video Playback

number of discs	1
video disc playback system	NTSC, PAL
video enhancement	Progressive Scan

Audio Playback

compression format	Dolby Digital, DTS, MP3, PCM
MP3 bit rates	32-256 kbps and VBR
playback media	CD, CD-R, CD-RW, MP3-CD

Tuner/Reception/Transmission

auto digital tuning	Yes
number of preset channels	20
tuner bands	FM Stereo, MW

Power

power supply	110-240V, 50/60 Hz
standby power consumption	< 2 W
total sound power (RMS)	300 W

Dimensions

center speaker dimensions (W x H x D)	234 x 96 x 70 mm
set dimensions (W x H x D)	360 x 54 x 316 mm
subwoofer dimensions (W x H x D)	220 x 230 x 360 mm
