Philips LX3600D Service Manual

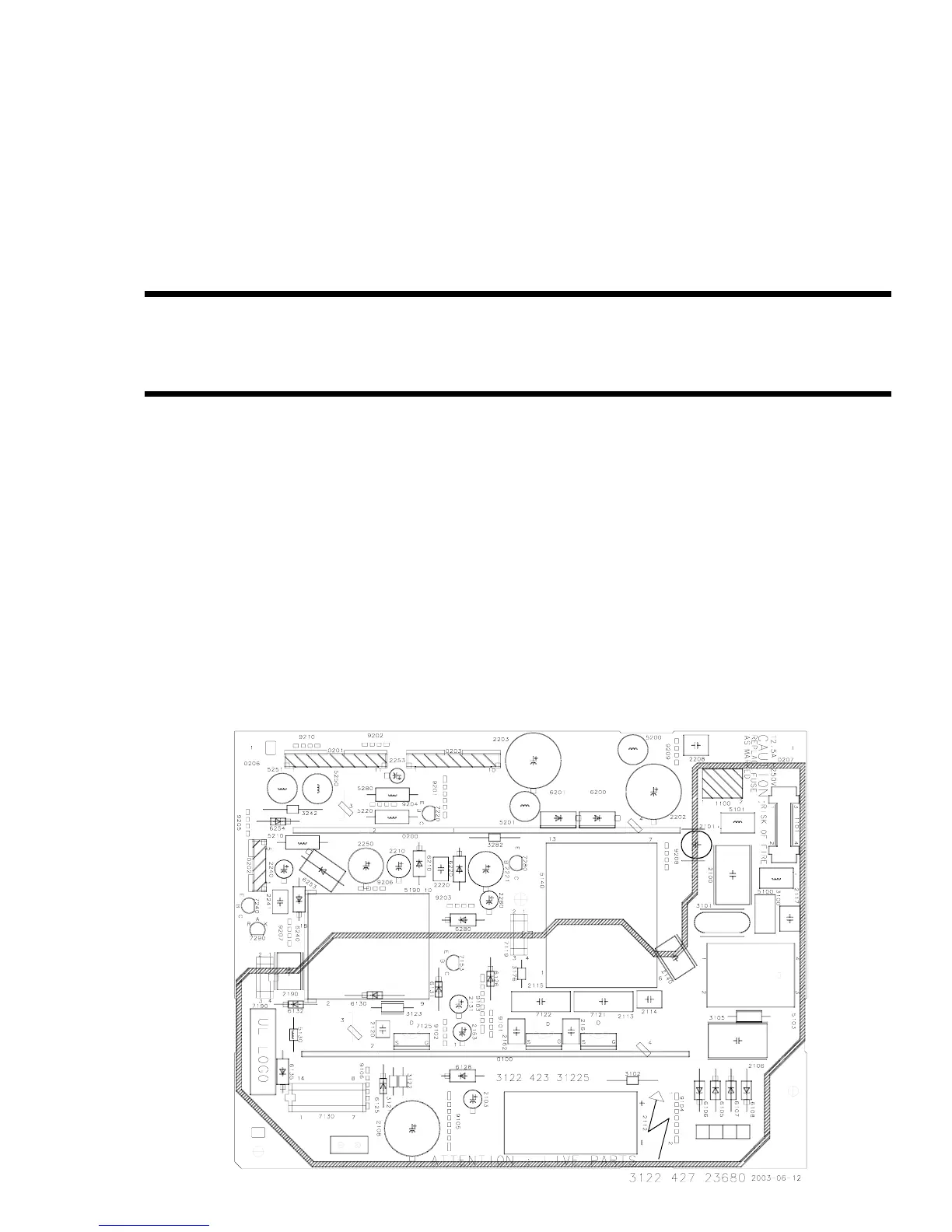

PSU BOARD
(For Information only)
5-1
It is not recommended for component repair on this board but
to replace the board when it becomes defective.
Therefore no service parts list is published in this chapter.
The only service part available for replacement is:
PSU Board 220V-240V ...................................... 3122 429 00191
PSU Board Voltage Selector ........................... 3122 429 00241
PSU Board 120V ............................................... 3122 429 00261

Philips LX3600D Specifications

Picture/Display

aspect ratio	4:3, 16:9

Sound

D/A converter	24 bit, 96 kHz
frequency response	30-20000 Hz
output power (RMS)	6 x 50 W

Loudspeakers

satellite speaker freq range	120-20000 Hz
satellite speaker impedance	4 ohm
subwoofer freq range	30-120 Hz

Video Playback

number of discs	1
video disc playback system	NTSC, PAL
video enhancement	Progressive Scan

Audio Playback

compression format	Dolby Digital, DTS, MP3, PCM
MP3 bit rates	32-256 kbps and VBR
playback media	CD, CD-R, CD-RW, MP3-CD

Tuner/Reception/Transmission

auto digital tuning	Yes
number of preset channels	20
tuner bands	FM Stereo, MW

Power

power supply	110-240V, 50/60 Hz
standby power consumption	< 2 W
total sound power (RMS)	300 W

Dimensions

center speaker dimensions (W x H x D)	234 x 96 x 70 mm
set dimensions (W x H x D)	360 x 54 x 316 mm
subwoofer dimensions (W x H x D)	220 x 230 x 360 mm
