DISMANTLING INSTRUCTIONS
Dismantling of the Front Panel assembly
1) Open the Tray and remove the tray cover assy (pos 5 +
7) and remove it as shown in figure 1.
Note: The Tray can be manually open by inserting a
minus screw driver (approximately 9mm) and push
lever in the direction shown in figure 2.
Dismantling of the Tuner Module, Loader Mechanism & Mono AV board
1) Loosen 2 screws A to remove the Tuner Module (pos
1216) as per figure 3.
2) With the tray cover assembly (pos 5 + 7) already removed,
loosen 4 screws D to remove the Loader Mechanism
(pos 1210) as per figure 4.
3) Loosen 4 screws C on the rear and 2 screws G (see figure
3 and 4) to remove the Mono AV board (pos 1212).
1) Loosen 4 screws E and 1 catch C1 to remove the PSU
board (pos 1215) as per figure 4.
2) Loosen 2 screws B to remove the Speaker Connector
board (pos 1211) as per figure 3.
3) Loosen 4 screws F to remove the Amplifier board (pos
1214) as per figure 4.
Dismantling of the PSU, Speaker Connector and Amplifier boards
A
C
B
Figure 3
Figure 4
D
F
G
E
E
C1
C2
C2
2) Loosen the 5 screws to dismantle the Top Cover (pos
252)
- 2 screws on each side
- 3 screws on the Rear Panel (pos 251).
3) Uncatch 4 catches C2 (2x on side & 2x on the bottom) to
slide the Front Panel assembly (pos 101) as per figure 4.

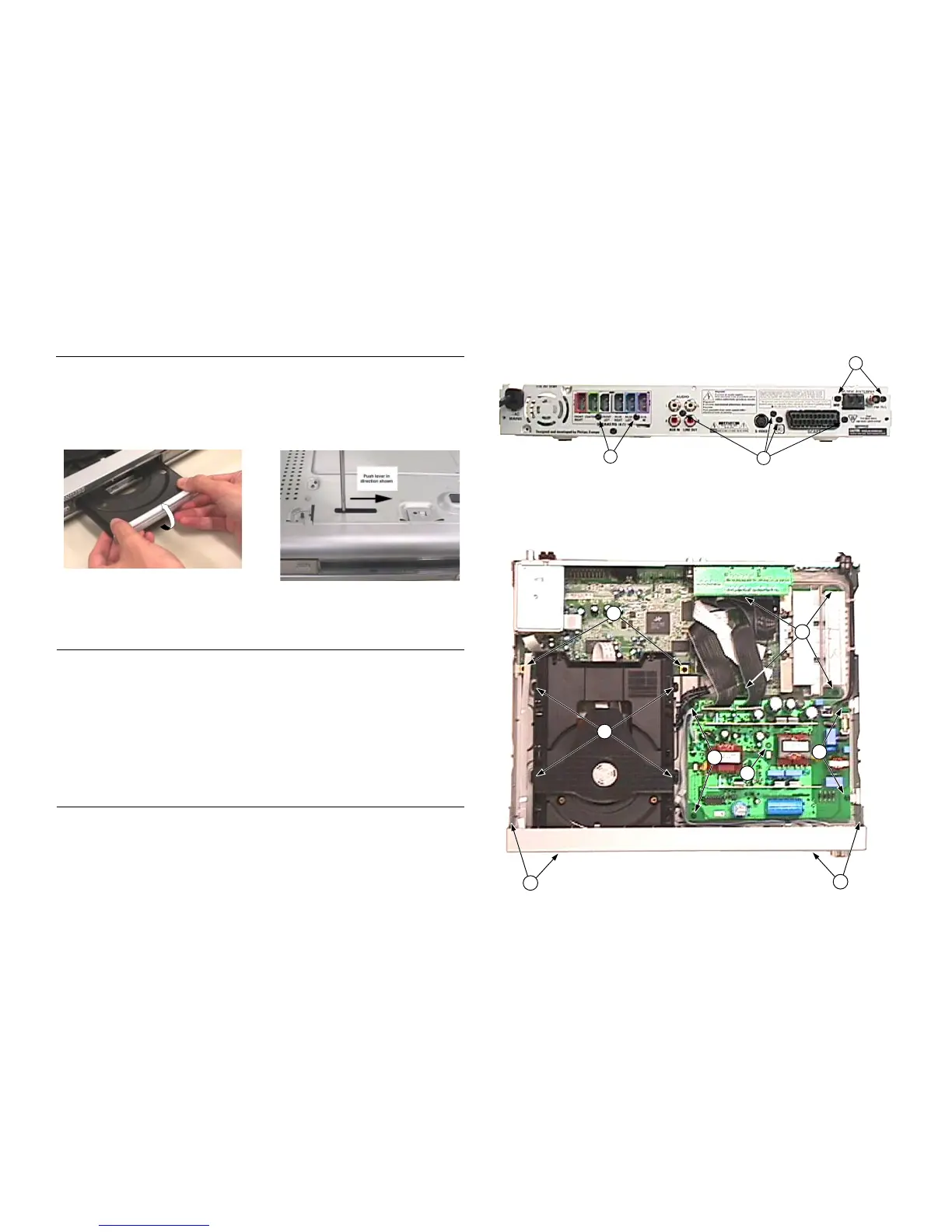

Figure 1
Figure 2
