Philips LX3600D Service Manual

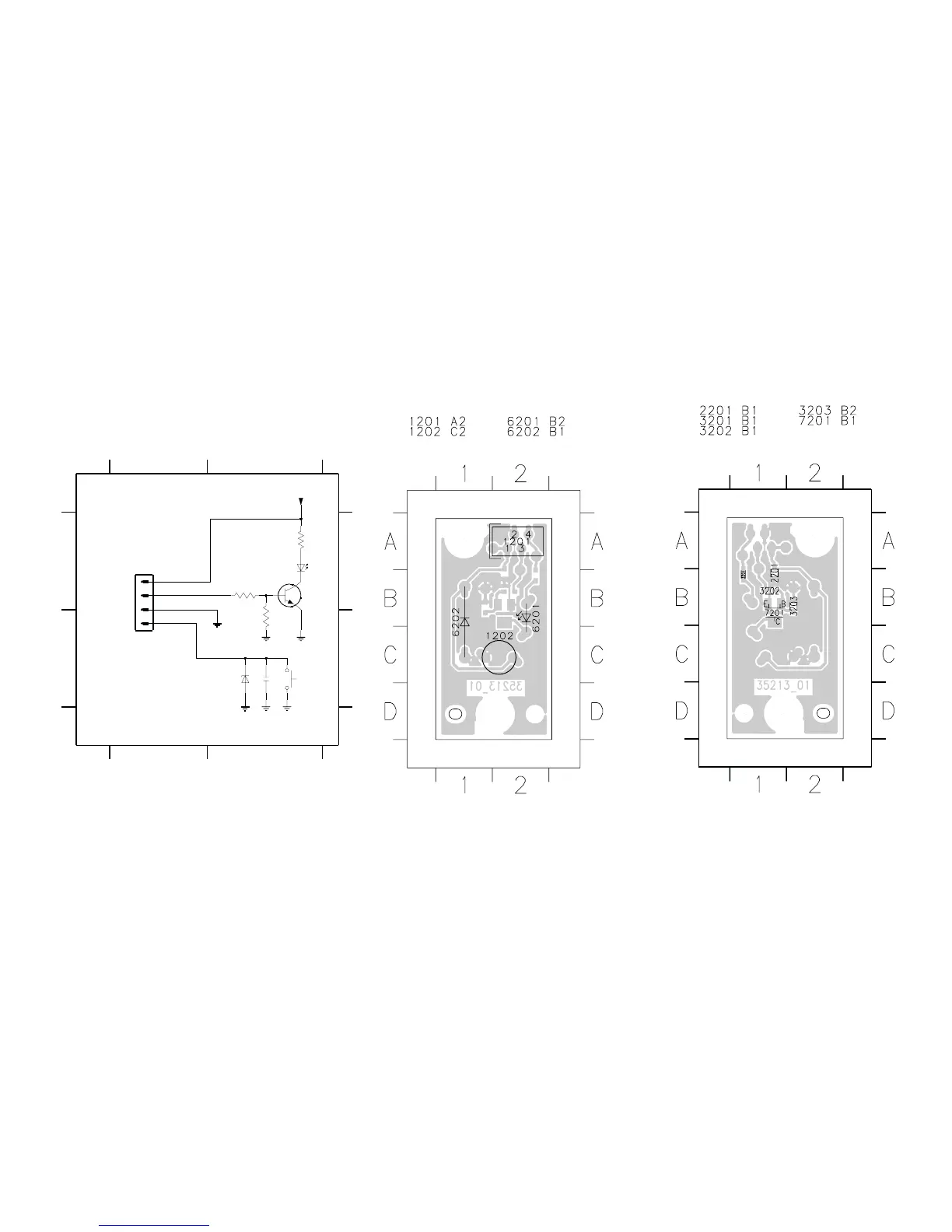

FRONT STANDBY PART - CIRCUIT DIAGRAM
6-2 6-2
FRONT STANDBY PART - COMPONENT & CHIP LAYOUT
STB_SW
12
12
A
B
A
B
1201 A1
1202 B2
2201 B2
3201 A2
3202 A2
3203 B2
6201 A2
6202 B2
7201 A2
POWER_ON
BZX79-C5V6
6202
FE-BT-VK-N
1
2
3
4
D
+5VDSTBY
D
D
1201
D
3203
10K
2201
10n
D
STANDBY
1202
6201
3201
1K0
4K7
D
BC847B
7201
3202
8239 210 9630 pt3 dd wk0325
8239 210 9630 pt3 dd wk0325

Philips LX3600D Specifications

Picture/Display

aspect ratio	4:3, 16:9

Sound

D/A converter	24 bit, 96 kHz
frequency response	30-20000 Hz
output power (RMS)	6 x 50 W

Loudspeakers

satellite speaker freq range	120-20000 Hz
satellite speaker impedance	4 ohm
subwoofer freq range	30-120 Hz

Video Playback

number of discs	1
video disc playback system	NTSC, PAL
video enhancement	Progressive Scan

Audio Playback

compression format	Dolby Digital, DTS, MP3, PCM
MP3 bit rates	32-256 kbps and VBR
playback media	CD, CD-R, CD-RW, MP3-CD

Tuner/Reception/Transmission

auto digital tuning	Yes
number of preset channels	20
tuner bands	FM Stereo, MW

Power

power supply	110-240V, 50/60 Hz
standby power consumption	< 2 W
total sound power (RMS)	300 W

Dimensions

center speaker dimensions (W x H x D)	234 x 96 x 70 mm
set dimensions (W x H x D)	360 x 54 x 316 mm
subwoofer dimensions (W x H x D)	220 x 230 x 360 mm
