Philips LX3600D - AV Board Layouts (3522 pt1)

7-14

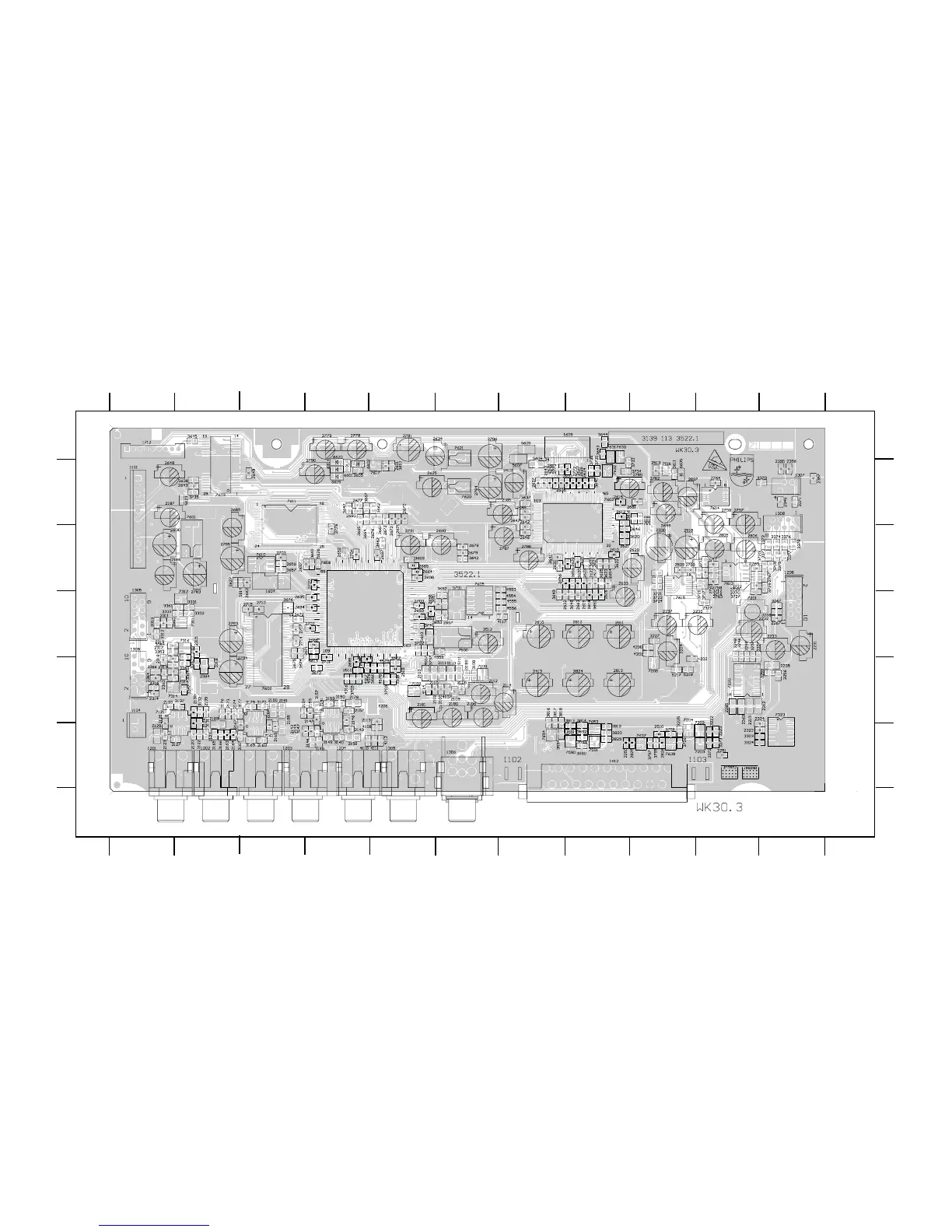

PCB 3139 113 3522 pt1 TOP VIEW - Use by all type/versions
7-14
2
H
3
4
5
6
7
89
10 11 12 13
2
3
4
5
6
7
89
10
11
12
13
H
1
1
This assembly drawing shows a summary of possible version. For components used in aspecific versions see schematic and respective parts list.
B
C
D
E
F
G
B
C
D
E
F
G
LX3600D/69 3139 113 3522 pt1 dd wk341
