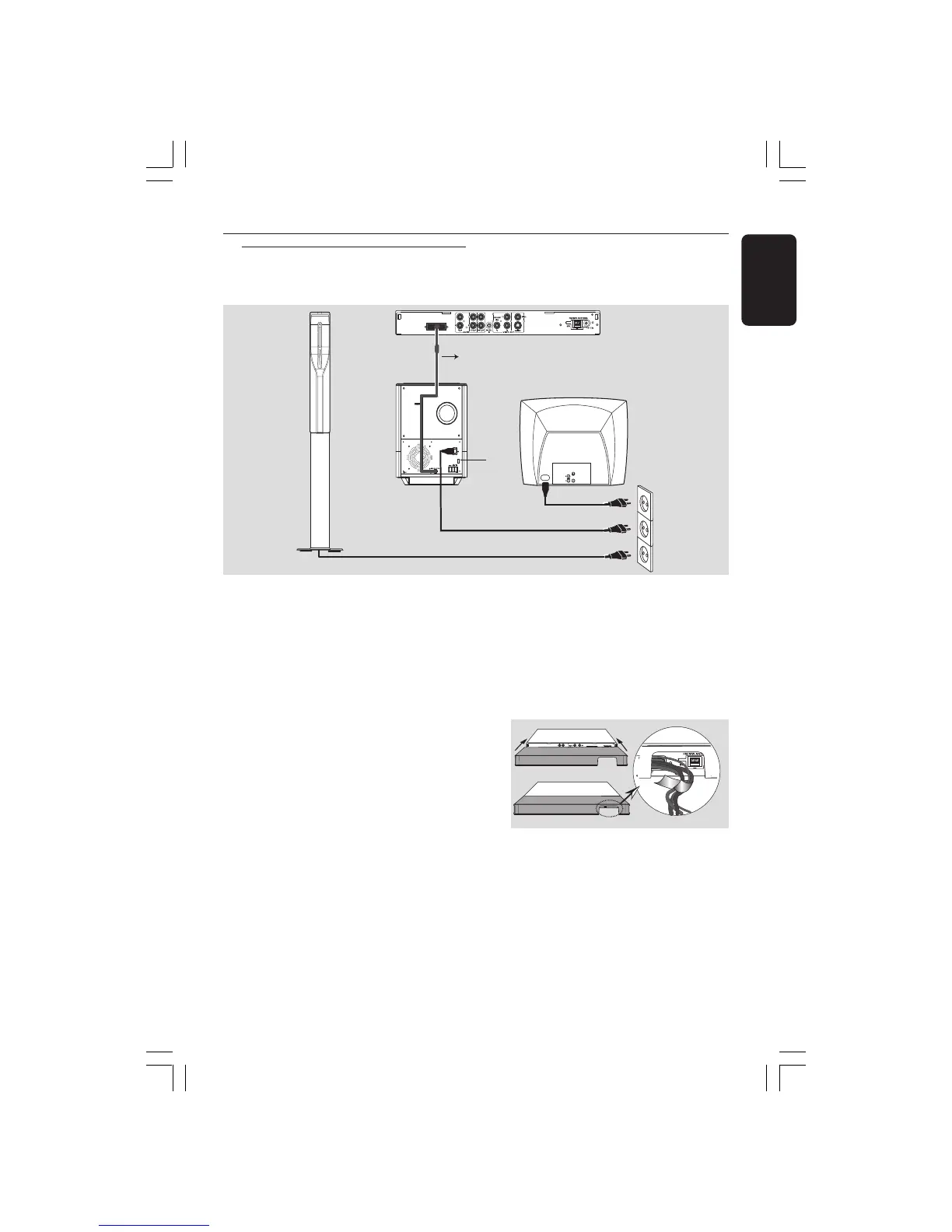

Connections
After everything is connected
properly,
1 Set the VOLTAGE SELECTOR to the
local power line voltage.
2 Plug in the AC power cord to the power
outlet.
The red STANDBY LED on the DVD
system will light up. Never make or
change any connections with the power
switched on.
IMPORTANT!
Remove the REAR L speaker power cord
from the power supply if not in use to
avoid unwanted noise.
Step 8: Connecting the
power cord
TO AV SUBWOOFER
AUDIO
OUT
S-VIDEO
IN
VIDEO IN
~ AC MAINS
Voltage
Selector
110V-
127V
220V-
240V
DVD system
AV Subwoofer
AV Inter-connect cable
TV
Rear L
(left) speaker
Manage the cables neatly
This DVD system comes with a cable
cover, it allows you to organise all the
connecting cables neatly through the
opening and you can use the velcro strip
that attached to the inter-connect cable
to tie up rest of the cables together.
TO AV SUBWOOFER
TO AV SUBWOOFER
➠
Helpful Hint:
– Refer to the type plate on the rear of the
AV subwoofer for identification and supply
ratings.
1
2
001-045-LX85-69-Final copy 24/08/2004, 11:13 AM11

Philips LX8500W Specifications

Sound Specifications

D/A converter	24 bit, 96 kHz
frequency response	30-48000 Hz
signal to noise ratio	>95 dB
output power (RMS)	3 x 100W, 2 x 75W + 150W
total sound power (RMS)	600 W
satellite speaker frequency range	120-50000 Hz
satellite speaker impedance	6 ohm
center frequency range	120-30000 Hz
center speaker impedance	6 ohm
subwoofer frequency range	30-120 Hz
subwoofer impedance	4 ohm

Power

power supply	110-240V, 50/60 Hz
standby power consumption	< 1W

Weight and Dimensions

center speaker dimensions	435 x 76 x 70 mm
center speaker weight	1.4 kg
packaging dimensions	1000 x 516 x 495 mm
set dimensions	360 x 40 x 305 mm
set weight	2.5 kg
stand dimensions	95 x 540 x 95 mm
subwoofer dimensions	300 x 400 x 300 mm
subwoofer weight	12 kg
surround speaker dimensions	100 x 550 x 107 mm
surround speaker weight	10.3 kg
weight including packaging	43 kg
