Philips LX8500W User Manual

8
3139 115 23232
English
1 Use the supplied speaker cables to
connect the FRONT R (red), FRONT L
(white) and CENTER (green) speakers to
the rear of the AV subwoofer by matching
the colours of the jacks.
2 Connect the AV subwoofer with the
DVD system by plugging in the inter-
connect cable from the AV subwoofer to
the TO AV SUBWOOFER jack at the
rear of the DVD system.
Helpful Hints:
– Ensure that the speaker cables are
correctly connected. Improper connections
may damage the system due to short-circuit.
–To prevent unwanted noise, do not place
the AV subwoofer too close to the DVD
system, AC power adaptor, TV or other
radiation sources.
Connections

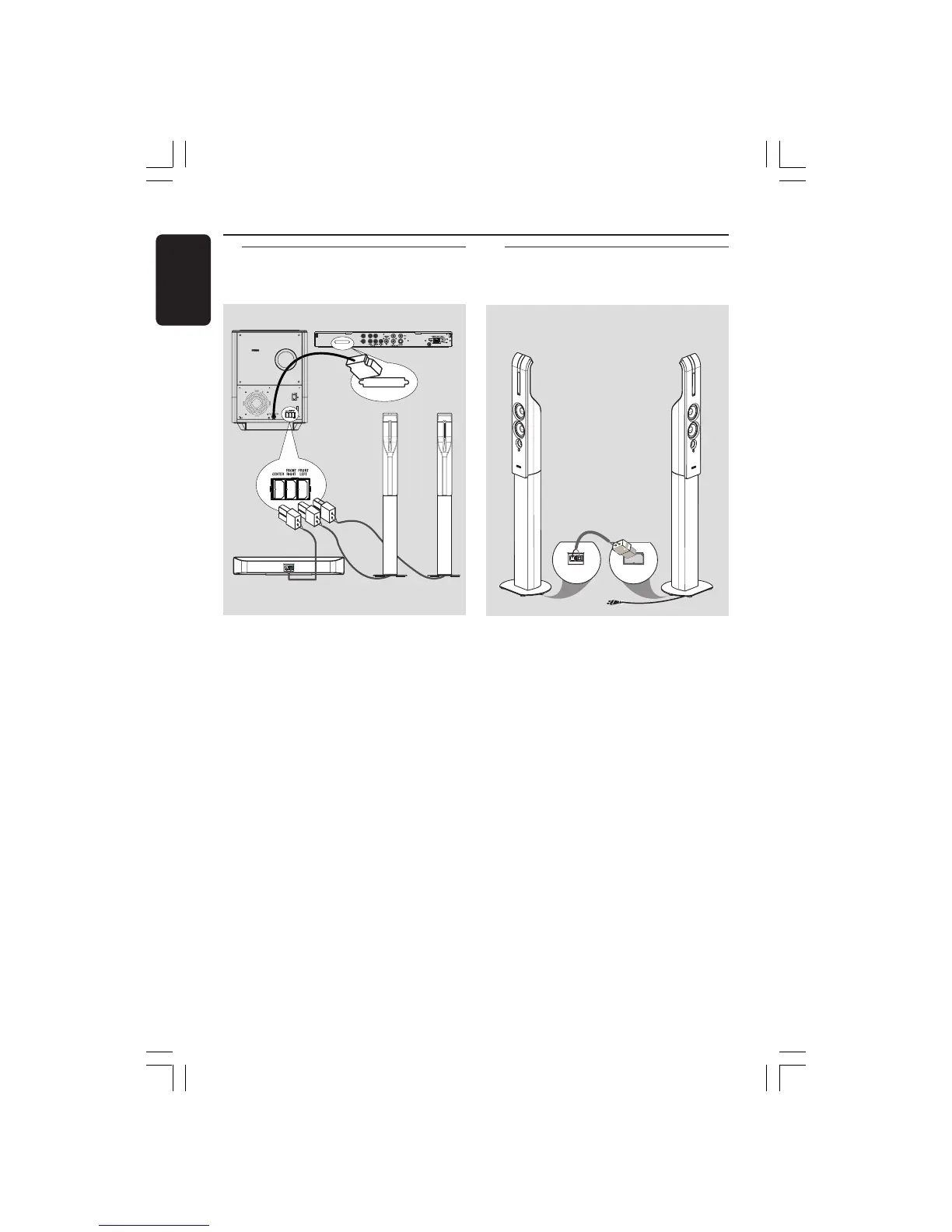

Step 3: Connecting DVD
system, AV subwoofer
and front speakers
Step 4: Connecting wire-less
rear speakers
Centre Speaker
AV Subwoofer
Voltage
Selector
110V-
127V
220V-
240V
TO AV SUBWOOFER
➠
TV IN
TO AV SUBWOOFER
Front Speakers
Front R
Rear L
(left) speaker
Rear R
(right) speaker
DVD System
Front L
2
1
The rear speaker stands (grey and blue
colour stickers) are equipped with a
wire-lesss receiver that receives audio
signals from the DVD system. The wire-
less rear speakers provide a surround
sound entertainment experience without
the scattered wires.
2 Use the supplied rear speaker cable (grey
colour) to connect the rear left and right
speakers. One end (easy connector) to
the REAR L speaker and anothee end
(click -fit) tp the REAR R speaker.
Helpful Hints:
–To prevent unwanted noise, do not place
the rear speakers too close to the DVD
system, AC power adaptor, TV or other
radiation sources.
– Do not connect the REAR L speaker to the
power supply if not in use.
001-045-LX85-69-Final copy 24/08/2004, 11:13 AM8

Philips LX8500W Specifications

Sound Specifications

D/A converter	24 bit, 96 kHz
frequency response	30-48000 Hz
signal to noise ratio	>95 dB
output power (RMS)	3 x 100W, 2 x 75W + 150W
total sound power (RMS)	600 W
satellite speaker frequency range	120-50000 Hz
satellite speaker impedance	6 ohm
center frequency range	120-30000 Hz
center speaker impedance	6 ohm
subwoofer frequency range	30-120 Hz
subwoofer impedance	4 ohm

Power

power supply	110-240V, 50/60 Hz
standby power consumption	< 1W

Weight and Dimensions

center speaker dimensions	435 x 76 x 70 mm
center speaker weight	1.4 kg
packaging dimensions	1000 x 516 x 495 mm
set dimensions	360 x 40 x 305 mm
set weight	2.5 kg
stand dimensions	95 x 540 x 95 mm
subwoofer dimensions	300 x 400 x 300 mm
subwoofer weight	12 kg
surround speaker dimensions	100 x 550 x 107 mm
surround speaker weight	10.3 kg
weight including packaging	43 kg
