English
Connections
IMPORTANT!
The progressive scan video quality is
only available when using Y Pb Pr
connection and a progressive scan TV
is required.

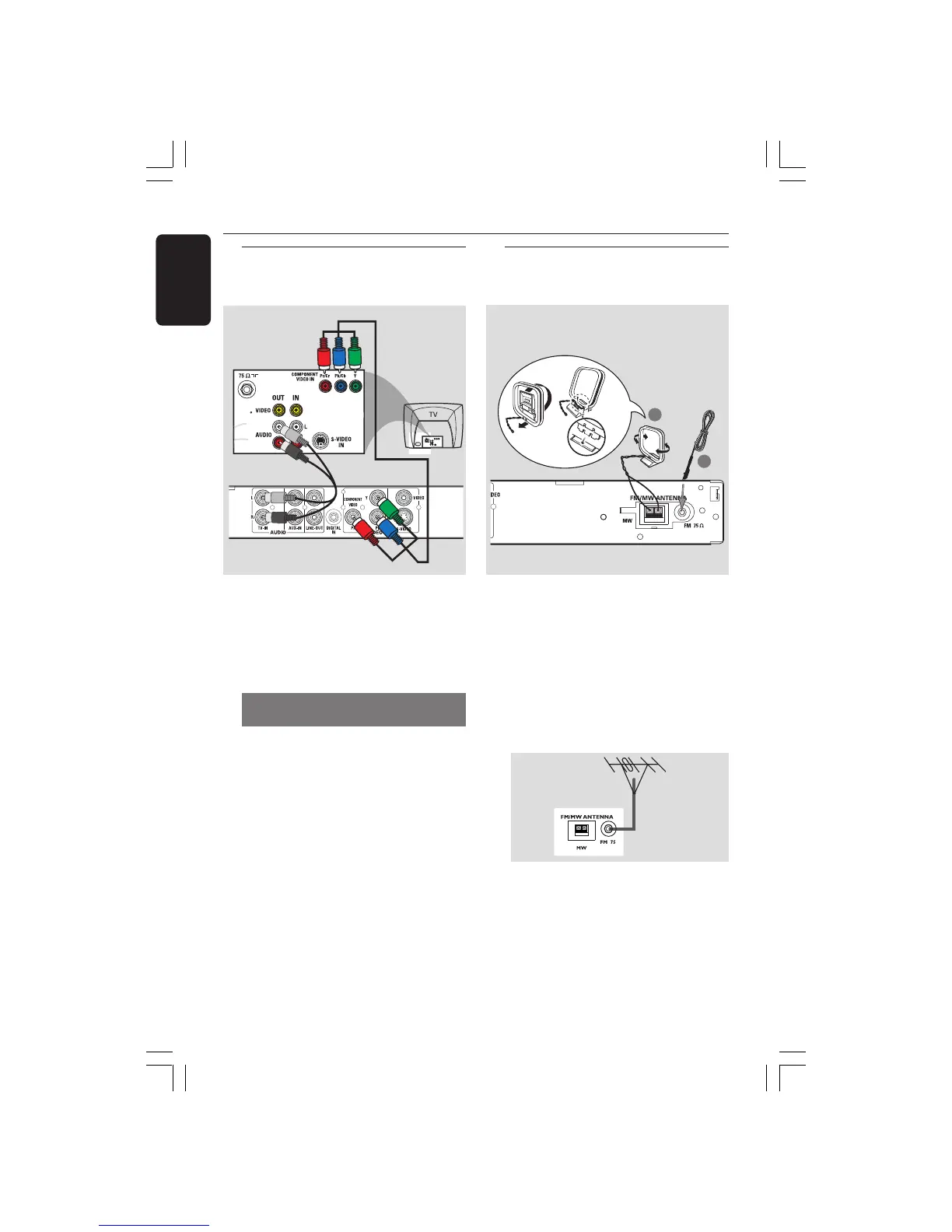

Using Component Video jacks
(Y Pb Pr)
1 Use the component video cables (red/
blue/green - not supplied) to connect the
DVD system’s Y Pb Pr jacks to the
corresponding component video input
jacks (or labelled as Y Pb/Cb Pr/Cr or
YUV) on the TV.
2 To hear the TV channels through this
DVD system, use the supplied audio
cables (white/red) to connect AUDIO-
TV IN jacks to the corresponding
AUDIO OUT jacks on the TV.
3 Activate the progressive scan function,
see page 32.
Step 6: Connecting a
Progressive ScanTV
1 Connect the supplied MW loop antenna
to the MW jack. Place the MW loop
antenna on a shelf or attach it to a stand
or wall.
2 Connect the supplied FM antenna to the
FM jack. Extend the FM antenna and fix
its ends to the wall.
For better FM stereo reception, connect
an external FM antenna (not supplied).
Helpful Hints:
– Adjust the position of the antennas for
optimal reception.
–Position the antennas as far as possible
from your TV, VCR or other radiation source
to prevent unwanted interference.
1
2
➠
MW loop
antenna
fix the claw
into the slot
Step 7: Connecting FM/MW
antennas
FM
antenna
