Connections
IMPORTANT!
–You only need to make one video
connection from the following
options, depending on the
capabilities of your TV.
– Connect the DVD system directly
to the TV.
Using Composite Video jack
1 Use the supplied composite video cable
(yellow) to connect the DVD system’s
VIDEO jack to the video input jack (or
labelled as A/V In, Video In, CVBS,
Composite or Baseband) on the TV.
2 To hear the TV channels through this
DVD system, use the supplied audio
cables (white/red) to connect AUDIO-
TV IN jacks to the corresponding
AUDIO OUT jacks on the TV.

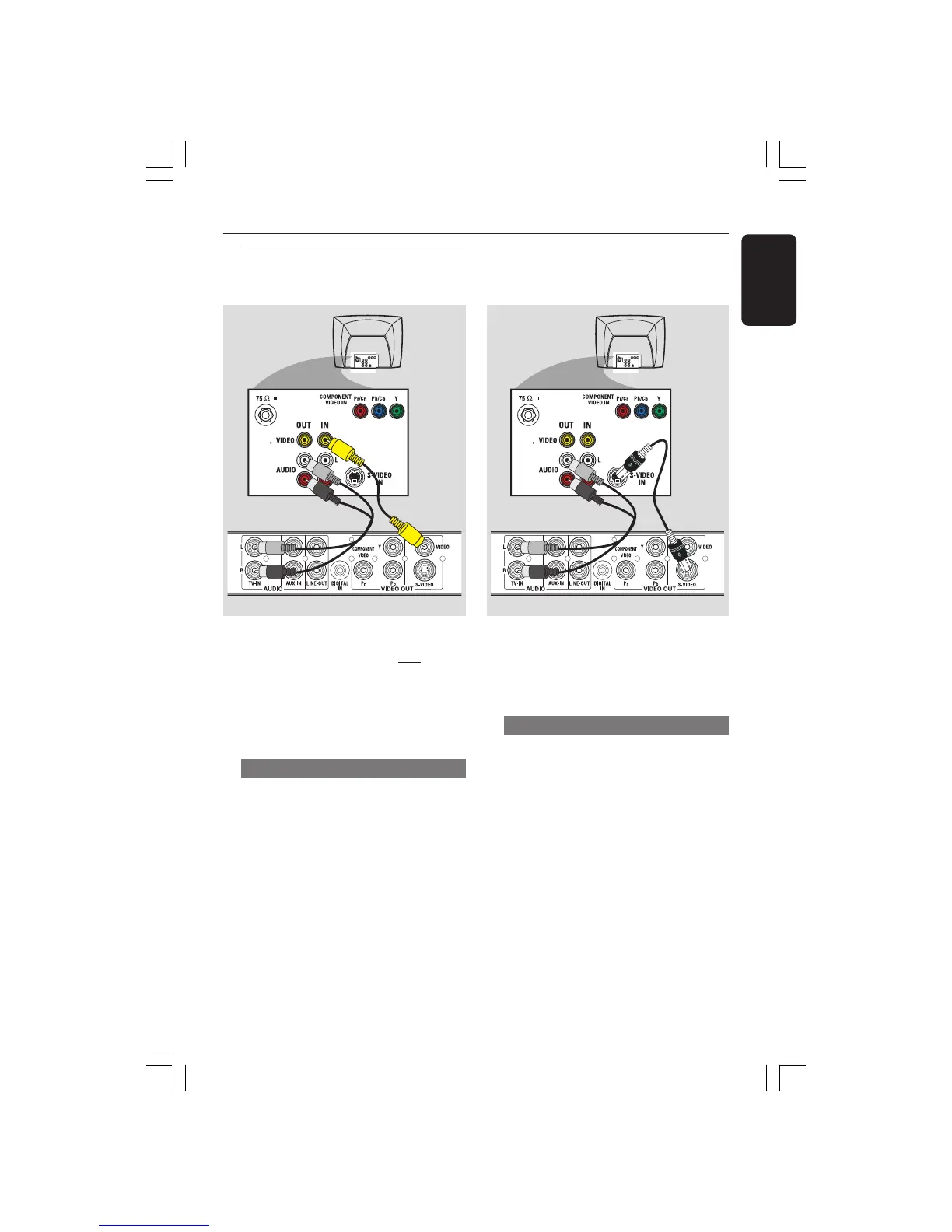

Step 5: Connecting TV
TV
IMPORTANT!
S-Video connection provides better
picture quality. This option must be
available on your TV.
Using S-Video jack
1 Use an S-video cable (not supplied) to
connect the DVD system’s S-VIDEO
jack to the S-Video input jack
(or labelled as Y/C or S-VHS) on the TV.
2 To hear the TV channels through this
DVD system, use the supplied audio
cables (white/red) to connect AUDIO-
TV IN jacks to the corresponding
AUDIO OUT jacks on the TV.
TV
001-045-LX85-69-Final copy 24/08/2004, 11:13 AM9

Philips LX8500W Specifications

Sound Specifications

D/A converter	24 bit, 96 kHz
frequency response	30-48000 Hz
signal to noise ratio	>95 dB
output power (RMS)	3 x 100W, 2 x 75W + 150W
total sound power (RMS)	600 W
satellite speaker frequency range	120-50000 Hz
satellite speaker impedance	6 ohm
center frequency range	120-30000 Hz
center speaker impedance	6 ohm
subwoofer frequency range	30-120 Hz
subwoofer impedance	4 ohm

Power

power supply	110-240V, 50/60 Hz
standby power consumption	< 1W

Weight and Dimensions

center speaker dimensions	435 x 76 x 70 mm
center speaker weight	1.4 kg
packaging dimensions	1000 x 516 x 495 mm
set dimensions	360 x 40 x 305 mm
set weight	2.5 kg
stand dimensions	95 x 540 x 95 mm
subwoofer dimensions	300 x 400 x 300 mm
subwoofer weight	12 kg
surround speaker dimensions	100 x 550 x 107 mm
surround speaker weight	10.3 kg
weight including packaging	43 kg
