13-3
TOP BASE
LOCKING BOTTOM
LOCKING TOP
SHOTGUN TOP
2 PINS TERMINAL
SHOTGUN BODY
BASE COVER
4 PINS TERMINAL (B)
4' WOOFER SPEAKER
BASE (CASTING)
SUPPORTER
INSERT NUT
PORT-L
PORT-FRONT
PORT-R
FOOT 6PCS
LABEL
FOAM GASKET
FOAM GASKET
FOAM GASKET
2-SPRING
WIRE
Screw size Qty Mounting
D3 x 10 2pcs 2-pins Terminal
D3.5 x 15 3pcs Shotgun Top
D3 x 10 4pcs Locking Assy (Top & Bottom)
D3.5 x 15 2pcs Top Base
D3.5 x 15 3pcs Supporter
D3 x 10 2pcs 4-pins Terminal
M5 x 14 4pcs Base Cover
D3 x 15 6pcs Base (Casting)

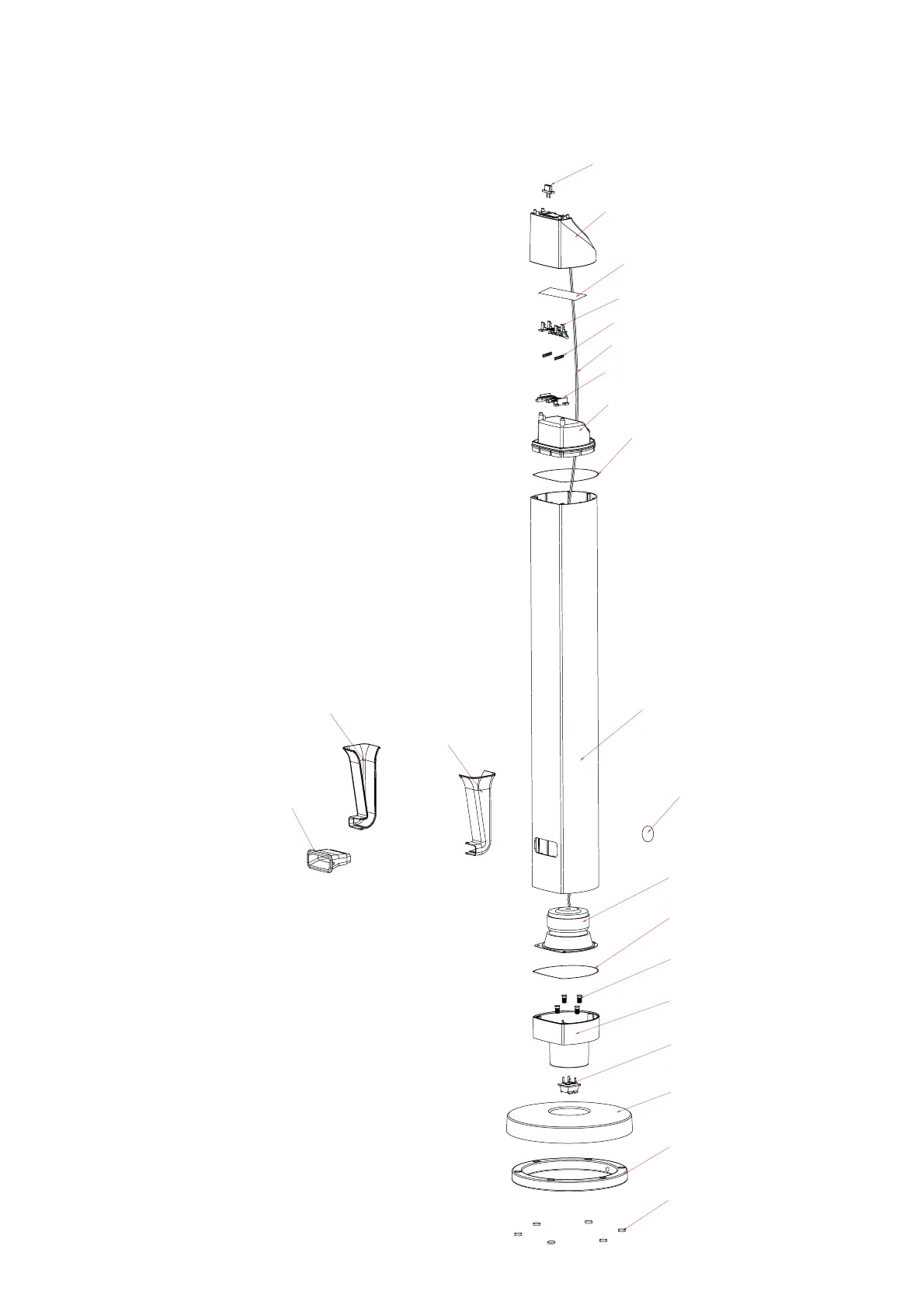

EXPLODED VIEW - STAND SUBWOOFER (For MX5600D & MX5700D only)
