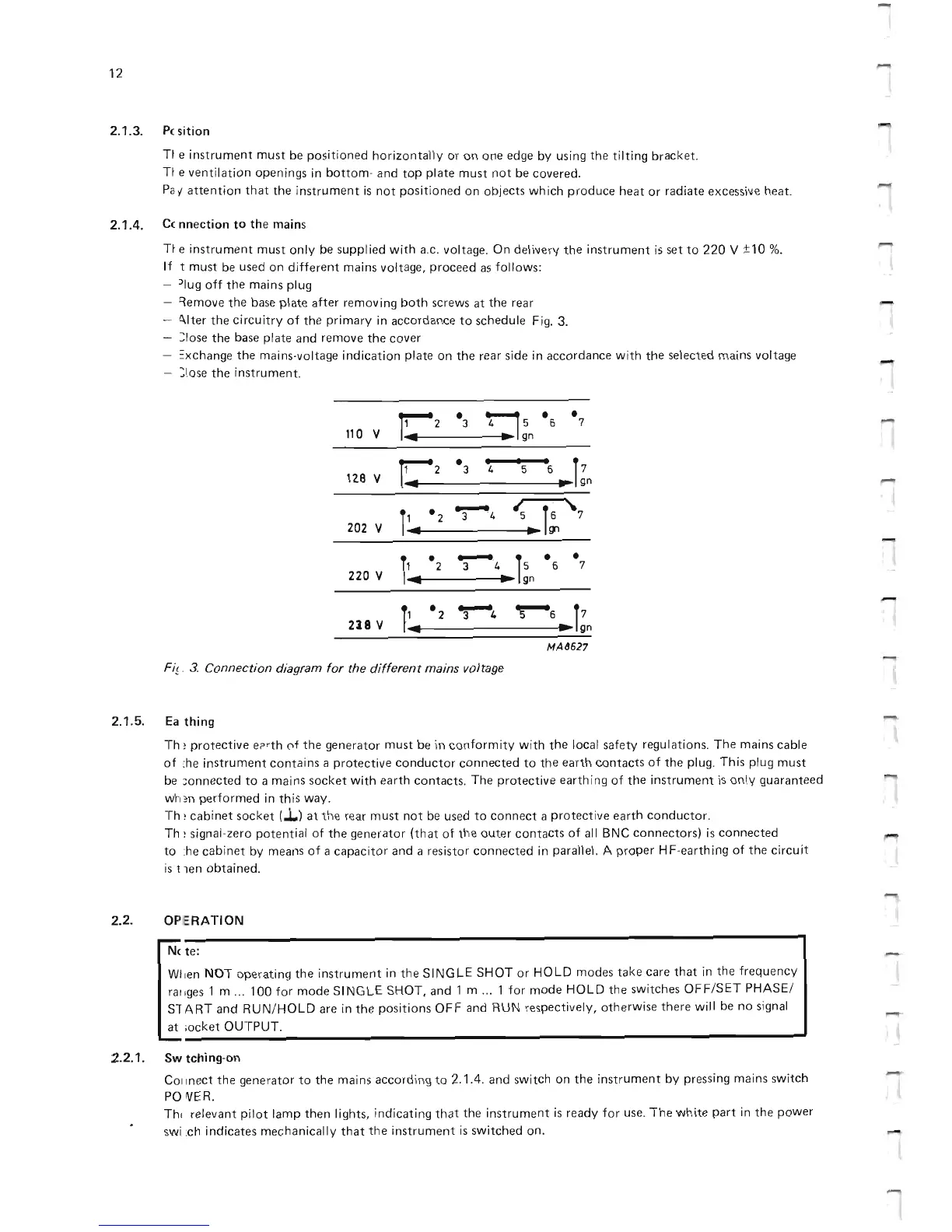

12
-
2.1.3 .
p( si tio n
T~ e instrument must be positioned horizontally or on one ed ge by using the t il ting bracket .
T~ e ventilation openings in bottom· and top plate must not be covered.
Pa { attention that the instrument is not posit io ned on objects which produce heat or radiate excessiv e heat.
-
2.1.4. C( nnection to the main s
T~ e instrument must only be supplied with a.c. voltage . On delivery the instrument is set to 220 V ±10 %.
If t must be u sed on differ en t mains voltage, proceed as follows :
~Iug off the mains plug
"lemove the base plate af ter removing both screws at the rear
Ö,lter the circuitry of the primary in accordance to schedule Fig. 3.
::Iose
the base plate a nd remove the cover
=xc hange the mains·voltage indication plate on the rear side in accordance with the selected mains voltag e
~I ose the i nstru ment .
e
e
~2 e
3
e;:--Ts
6
7
,....
110 V
1:...-----..::.....·1 gn
128 V
-
202 V
-
e
r
1
•
2
-
3
.
4
l
5
e
6 7
220 V
~~ __ -----..~ gn
Tl e
2
~4
-S--6 17
218 V
t~
.. gn
MA 8627
Fi! . 3. Connection diagram for the different mains vo/tage
-
2.1.5.
Ea thing
Th ! protectiv e eprth 0
f
the generator must be in conformity w i th the local safety regulations . The mains cabl e
of , he instrument contain s a protective conductor connected to the earth contacts of the plug . Thi s plug must
be :o nnected to a mains sock et with earth contacts. The protective earthing of the instrument is only guaranteed
whm performed in this way .
Th ! cabinet socket (..1.) at the rear must not be used to connect a protective earth conductor .
Th! si gnai-zero potential of the generator (that of the outer contacts of all BNC connectors) is connected
to : he cabinet by means of a capacitor and a res istor connected in paralIeI. A proper HF- earthing of the circuit
is t len obtained.
-
N< te:
Wllen NOT operating th e instrument in the SINGLE SHOT or HOLD modes take care that in the frequency
rallges 1 m ... 100 for mode SINGLE SHOT, and 1 m ... 1 for mode HOLD the switches OFF / SET PHASE /
S1 ART and RUN / HOLD are in the positions OFF and RUN respectively, otherwise there will be no signal
at ;ocket OUTPUT.
2.2.1. Sw tching - on
-
COI mect the generator to the mains according to 2.1.4. and switch on the instrument by pressing mains s witch
PO IIJER .
Th l relevant pilot lam p then lights, indicating that the instrument is ready for use. The white part in the power
swi : ch indicates mechanically that the instrument is switched on .
