Philips PM 5167 - Gaining Access to the Parts

45

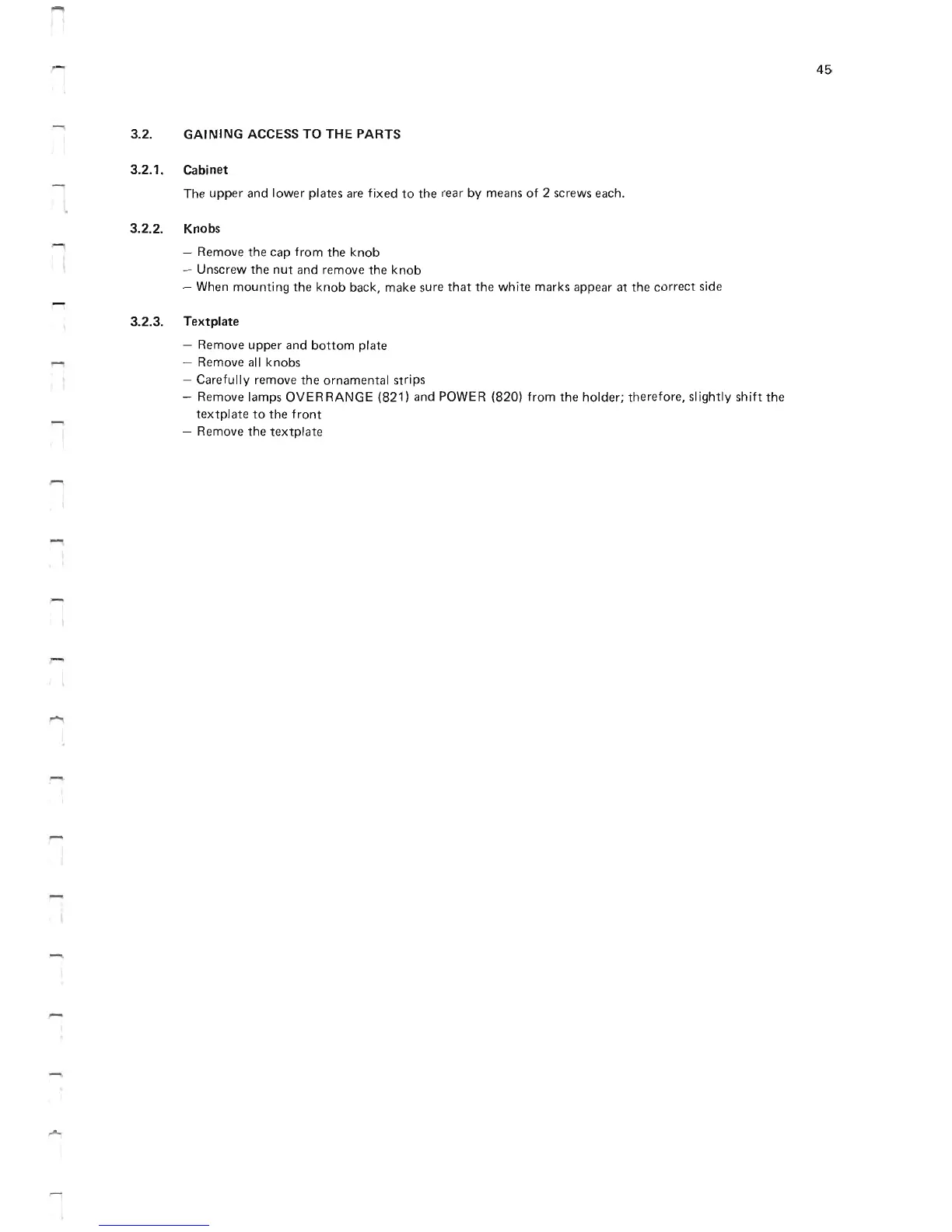

3.2. GAlNING ACCESS TO THE PARTS
3.2.1. Cabi net
The upper and lower plates are fixed to the rear by means of 2 screws each.
3.2.2. Knobs
- Remove
the cap from the knob
- Unscrew the nut and remove the knob
- When mounting the knob back, make sure that the white marks appear at the correct side
3.2.3. Textplate
- Remove upper and bottom plate
- Remove
all knobs
- Carefully remove the ornamental strips
- Remove lamps OVER RANGE (821)
and POWER (820) from the holder; therefore, slightly shift the
textplate to the front
- Remove the textplate
