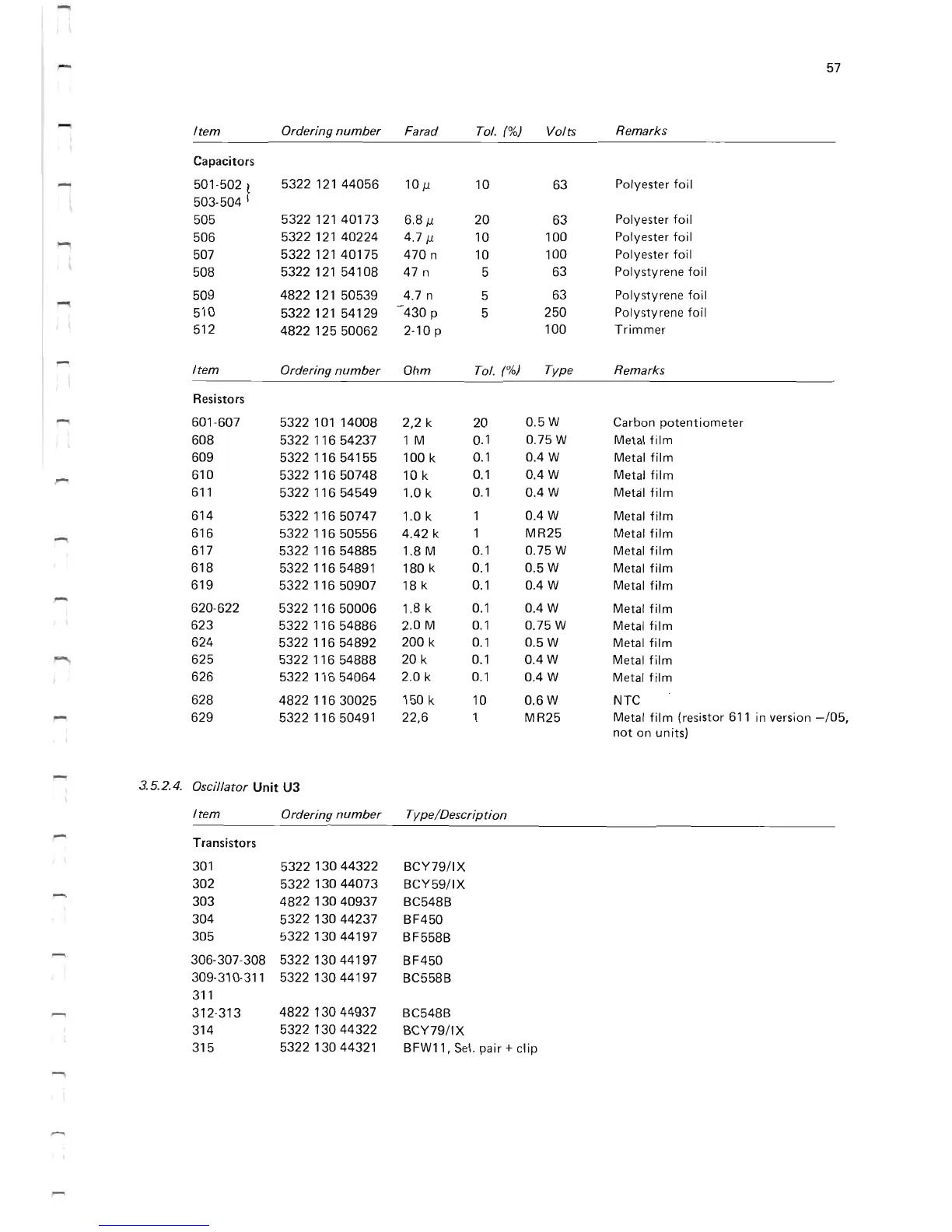

Philips PM 5167 - Parts List

57
.-,
Item
Ordering
number Farad
Tal. (%) Volts Remarks
Capacitors
501·502
f
5322 121 44056
10 J.l
10
63
Polyester foil
503-504
505 5322
121 40173
6.8 J.l
20
63
Polyester
foil
506 5322121 40224
4.7 J.l
10 100 Polyester foil
-
507
5322
121 40175
470 n
10
100 Polyester foil
508
5322121 54108 47 n
5
63
Polystyrene
foil
509 4822 121 50539 4.7 n
5 63
Polystyrene
foil
~
-
510
5322
121 541 29
430 p
5 250
Polystyrene
foil
512
4822 125 50062
2-10 p
100
Trimmer
Item
Ordering
number Ohm Tal. (%)
Type
Remarks
Resistors
601-607 5322
101 14008 2,2 k 20
0.5W Carbon potentiometer
608 5322 116 54237 1 M
0.1 0.75W Metal film
609 5322 11 6 541 55
100 k
0.1 0.4 W Metal film
610 5322 11650748 10 k 0.1
0.4 W
Metal
film
611 5322 116 54549 1.0 k 0.1
0.4 W Metal film
614
532211650747 1.0 k
0.4 W Metal
film
616 5322 116 50556 4.42 k MR25
Metal film
617 5322 11 6 54885 1.8 M 0.1 0.75 W Metal film
618 5322 11654891 180 k 0.1 0. 5W Metal film
619 5322 116 50907 18 k
0.1
0.4 W Metal film
620-622
5322 116 50006 1.8 k 0.1
0.4 W
Metal
film
623 5322 116 54886 2.0 M 0.1 0.75 W Metal film
624 5322 116 54892
200 k
0.1
0.5W Metal film
625 5322 116 54888
20 k
0.1 0.4 W Metal film
626 5322 11 6 54064 2.0 k 0.1
0.4 W Metal film
628 4822 116 30025 150 k
10
0.6W NTC
629
5322
11650491 22,6
MR25 Metal film (resistor 611 in version -105,
not on units)
3.5.2.4.
Oscillator Unit U3
Item
Ordering number
Type/Description
Transistors
301
5322 130 44322
BCY79/1X
302
5322
13044073
BCY59/1X
303
4822 130 40937
BC548B
304
5322 130 44237
BF450
305
532213044197
BF558B
306-307-308
532213044197
SF450
309-310-311
532213044197
SC558S
311
312-313
4822 130 44937
BC548B
314
5322 130 44322
BCY79/1X
315 5322 13044321
BFWll, Sel. pair + clip
