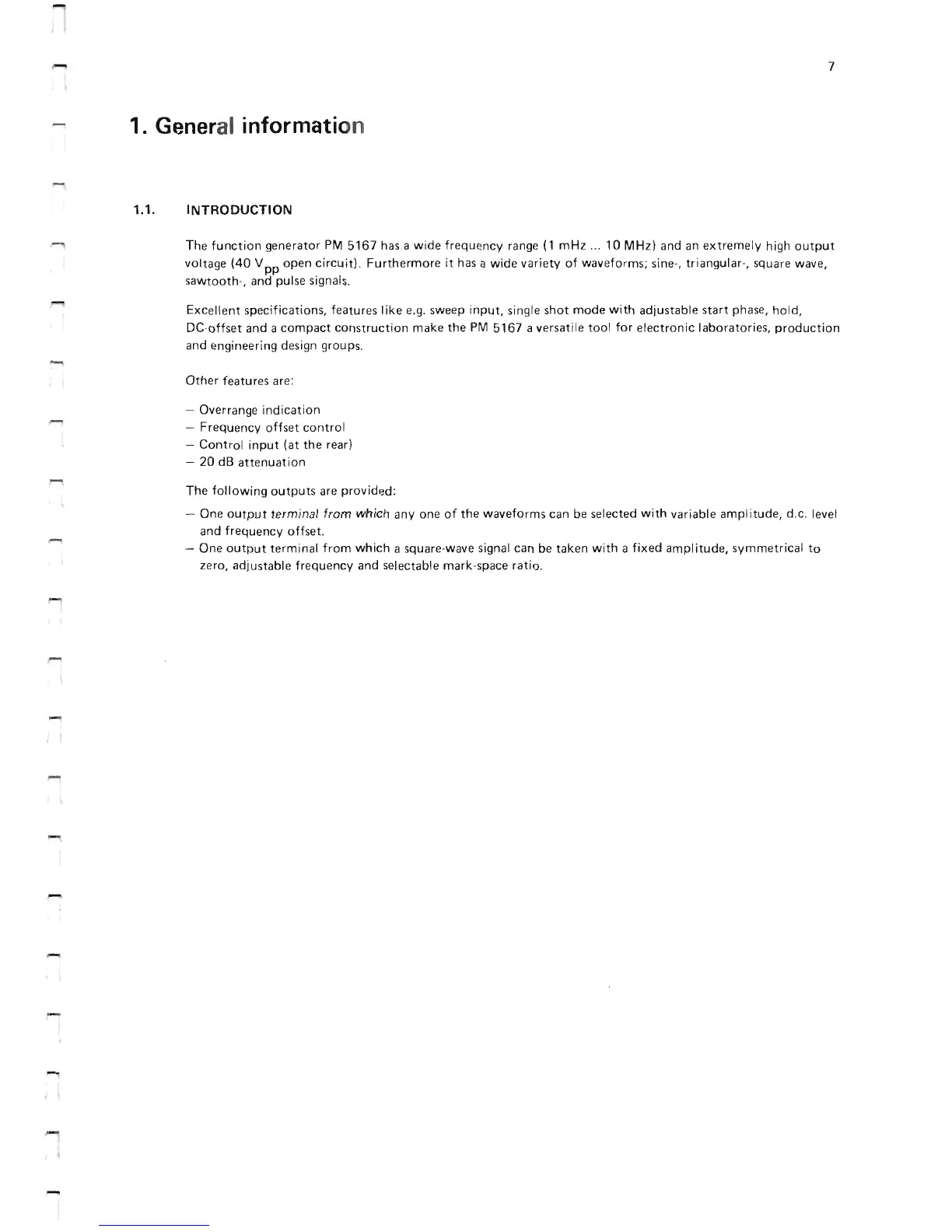

1. Gener al information
1.1.
INTRODUCTION
The function generator PM 5167 has a wide frequency range (1 mHz ... 10 MHz) and an extremely high output
voltage (40 V pp open circuitl. Furthermore it has a wide variety of waveforms; sine -, triangular-, square wave,
sawtooth -, and pulse signals.
Excellent specifications, features like e.g. sweep input, single shot mode with adjustable start phase, hold,
DC- offset and a compact construction make the PM 5167 a versatile tool for electronic laboratories, production
and engineering design groups.
Other features are :
-
Overrange indication
- F requency offset controi
- Contro i input (at the rear)
-
20 dB attenuation
The following outputs are provided:
- On e output terminal from which any one of the waveforms can be seleeted with variable amplitude, d.c. level
and frequency offset .
-
One output term inal from which a square-wave signal can be taken with a fixed amplitude, symmetrical to
zera, adjustable frequency and seleetable mark-space ratio.
-
