Philips Q548.1E - Page 51

IC Data Sheets
EN 51Q548.1E LA 8.
2009-Apr-03

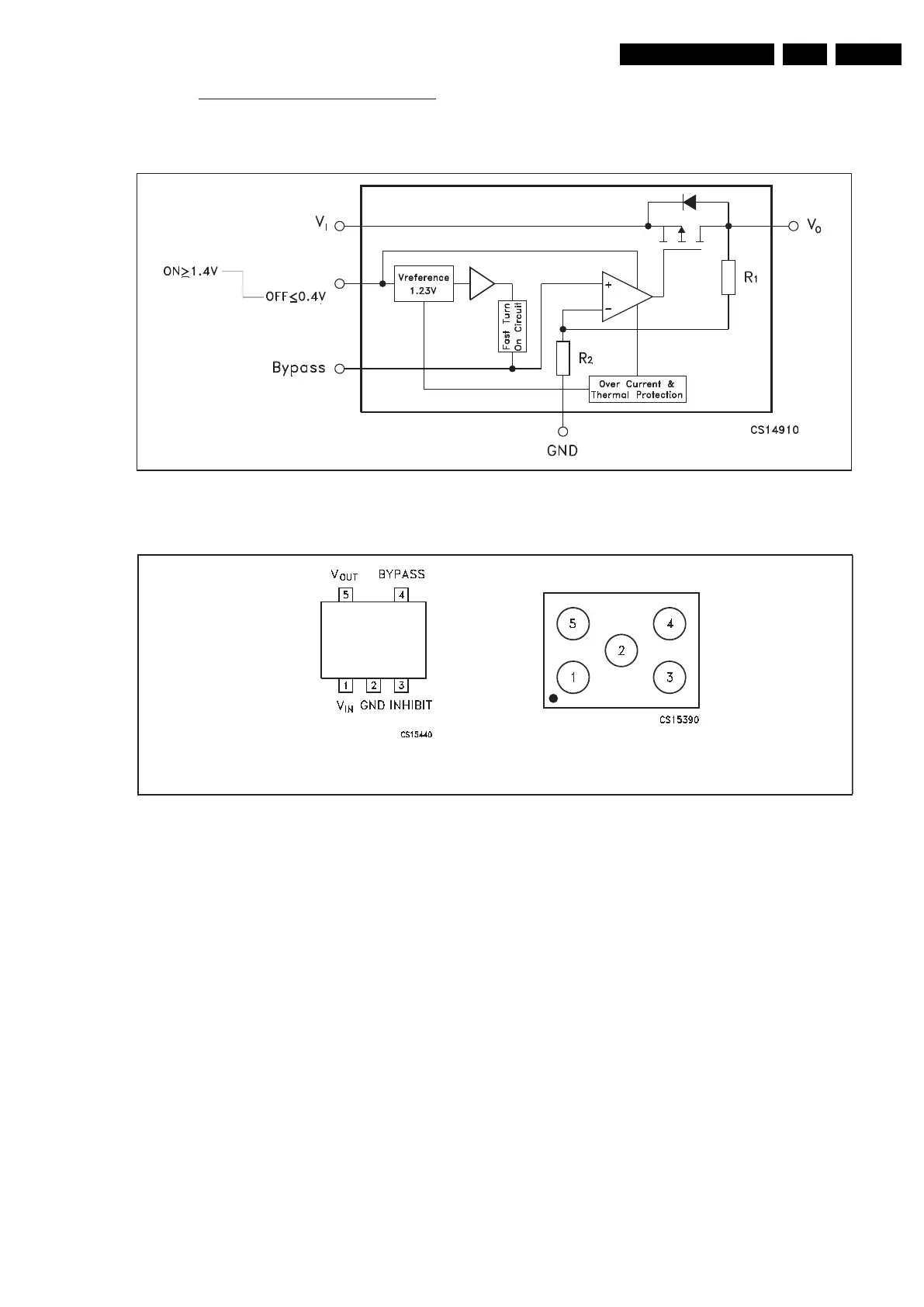

8.3 Diagram SSB: DC/DC +3V3 +1V2 Standby B01B, LD3985M (IC 7201)
Figure 8-3 Internal block diagram and pin configuration
G_16290_084.eps
020206
Pin Configuration
Block Diagram
TSOT23-5L/SOT23-5L Flip-Chip
