32BDL3651T/43BDL3651T
12

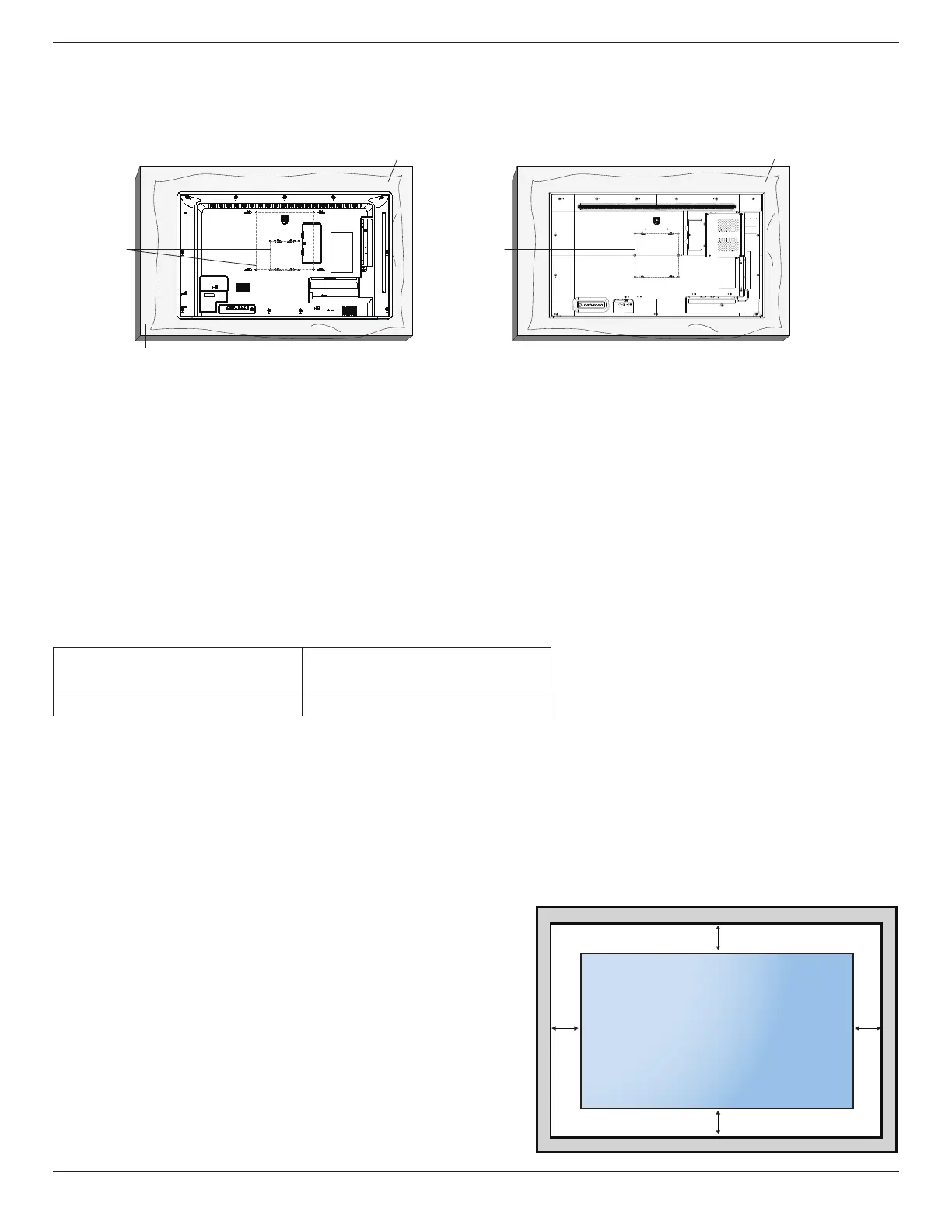

2.3. Mounting on a Wall
To mount this display on a wall, a standard wall-mounting kit (commercially available) is required. It is recommended that you use
a mounting interface that complied with TUV-GS and /or UL1678 standard in North America.
Protective Sheet
Table
Protective Sheet
VESA Grid
Table
VESA Grid
32BDL3651T 43BDL3651T
1. Prepare a at and horizontal surface that is larger than the display and spread a thick protective sheet on it to facilitate your
operation without scratching the screen.
2. Ensure you have all accessories for all types of mounting (wall mount, ceiling mount, table stand, etc).
3. Follow the instructions that came with the base mounting kit. Failure to follow the correct mounting procedures could result
in damage to the equipment, or injury to the user or installer. The product warranty does not cover the damage caused by
improper installation.
4. 32BDL3651T: For the wall-mounting kit, use the M4 mounting screws (with a length 10 mm longer than the thickness of the
mounting bracket) and tighten them securely.
5. 43BDL3651T: For the wall-mounting kit, use the M6 mounting screws (with a length 10 mm longer than the thickness of the
mounting bracket) and tighten them securely.
2.3.1. VESA Grid
32BDL3651T
100(H) x 100(V) mm
200(H) x 200(V) mm
43BDL3651T
200(H) x 200(V) mm
Caution:
To prevent the display from falling:
For wall or ceiling mounting, we recommend that you install the display with metal brackets which are commercially available.
For detailed instructions about the installation, refer to the guide provided with the bracket.
To prevent the display from falling in case of earthquake or other natural disaster, please consult the manufacturer of the
bracket for the mounting location.
As this product is high and heavy, the installation of this product is recommended to be performed by four technicians.
Required space for ventilation
Leave a space of 100 mm at the top, rear, right and left of the display for
ventilation.
Note: We recommend you contact a professional technician when
installing the display on a wall. We are not responsible for any
damage to the product if the installation is not performed by a
professional technician.
100 mm 100 mm
100 mm
100 mm
