Philips T Series - Parts and Functions; Control Panel

32BDL3651T/43BDL3651T
14

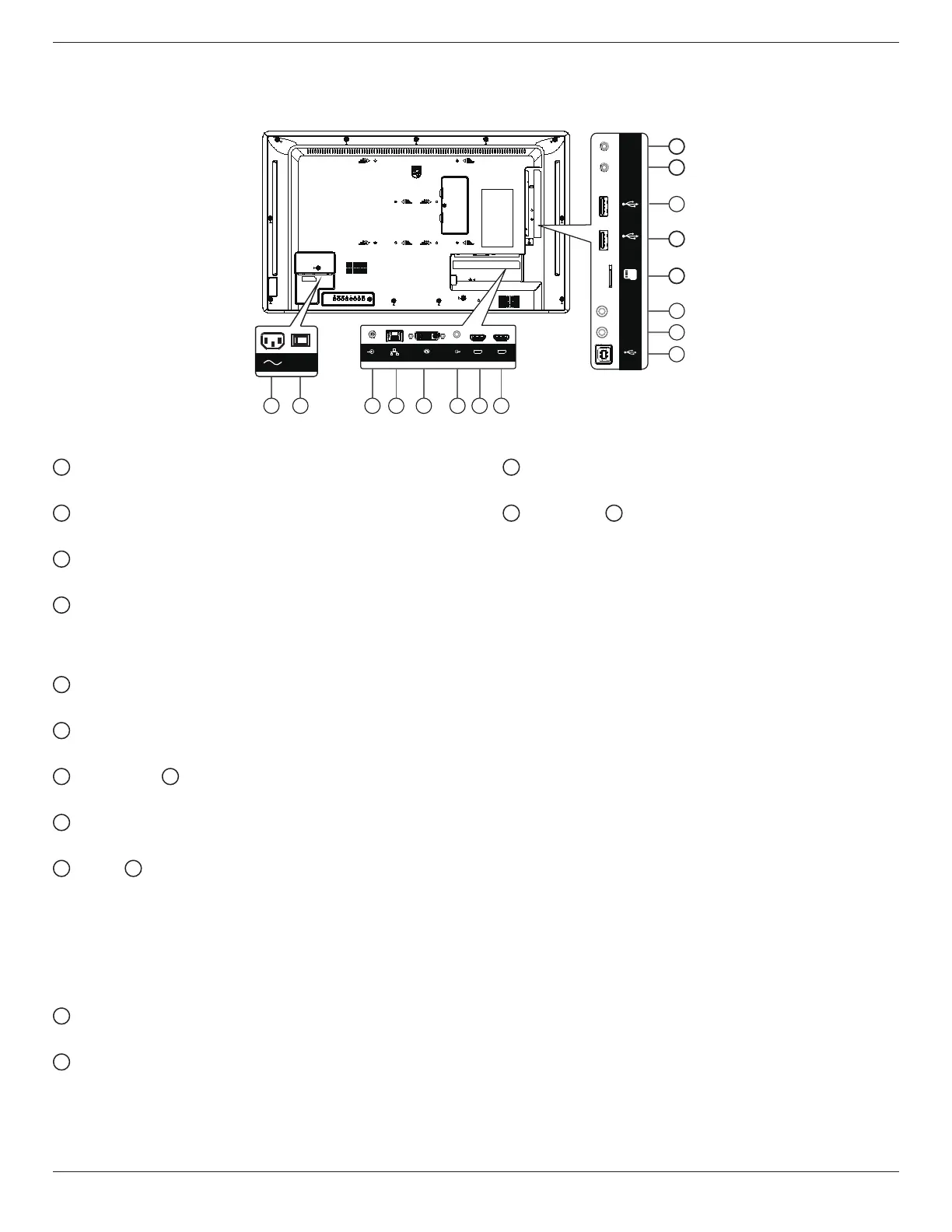

3.2. Input/Output Terminals
16
13
15
14
1 3 4 5 6 7 8
9
10
11
12
2
HDMI 1 IN HDMI 2 IN
PC LINE IN
DVI-I IN
AUDIO OUT
RJ45
RS232
IN
USB
Service Port
USB2.0
MICRO SD
IR-OUT
IR-IN
RS232
OUT
USB B
32BDL3651T
1
AC IN
AC power input from the wall outlet.
2
MAIN POWER SWITCH
Switch the main power between On and O.
3
PC LINE IN
Audio input for VGA source (3.5mm stereo phone).
4
RJ-45
The LAN control function is used for sending the remote
control signal from the control center in order to install
the optional OPS module.
5
DVI-I IN
DVI video input.
6
AUDIO OUT
Audio output for external AV device.
7
HDMI1 IN /
8
HDMI2 IN
Connect to a source device via an HDMI cable.
9
USB-B
Connect to external PC to support touch function
10
IR IN /
11
IR OUT
IR signal input/output for the loop-through function.
NOTES:
• The remote control sensor of this display will stop
working if the jack [IR IN] is connected.
• To remotely control your A/V device via this display,
refer to page 26 for IR Pass Through connection.
12
MICRO SD
Insert a Micro SD card.
13
USB SERVICE PORT
Connect to USB storage for main board Firmware
update.
Note: It’s for updating rmware only.
14
USB 2.0 PORT
Connect your USB storage device and service port.
15
RS232 IN /
16
RS232 OUT
Android RS232 network input/output is reserved for
customized protocol usage from System Integrator.
