4.4. Connecting Multiple Displays in a Daisy-chain Configuration
You can interconnect multiple displays to create a daisy-chain conguration for applications such as a menu board.
4.4.1. Display control connection

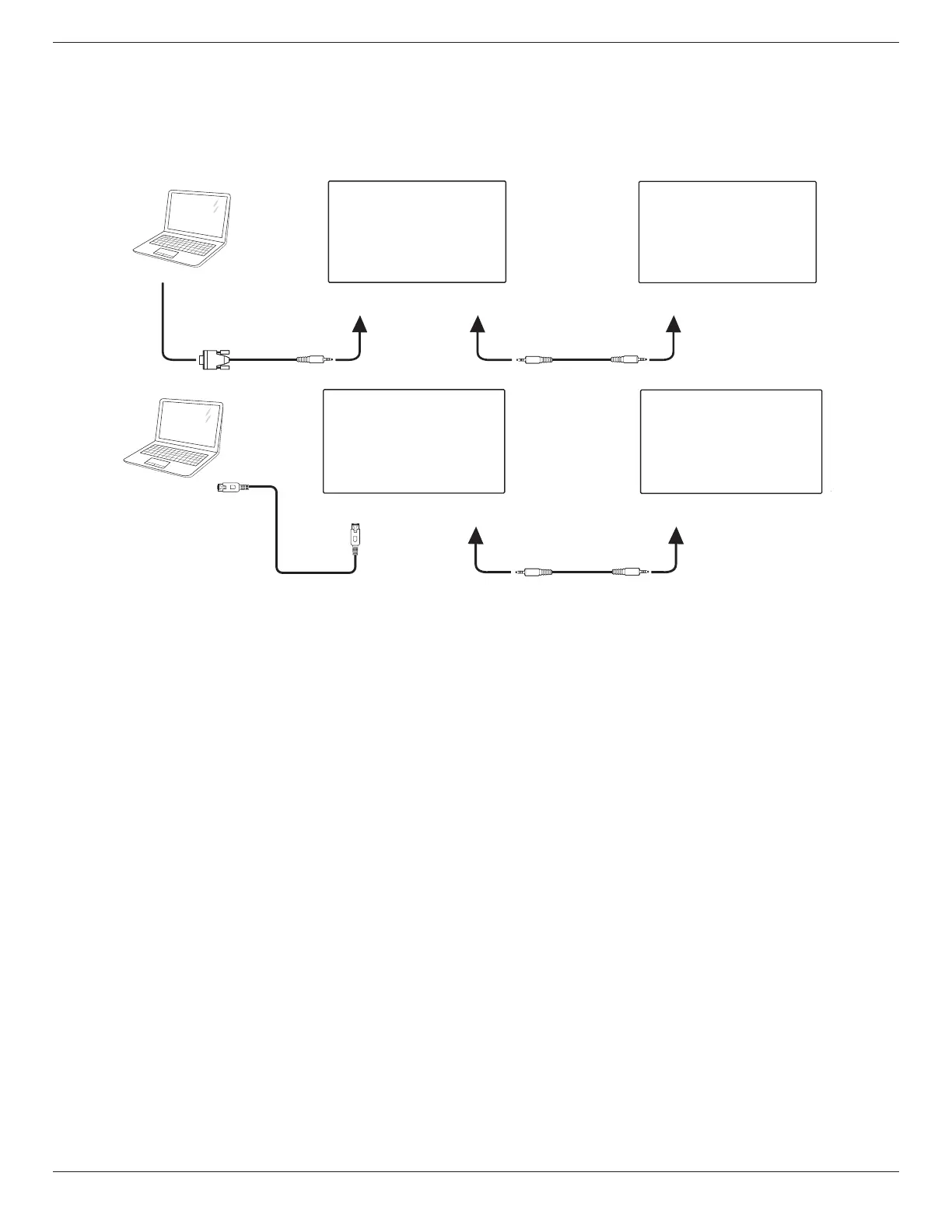

Connect the [RS232 OUT] connector of DISPLAY 1 to the [RS232 IN] connector of DISPLAY 2.
PC
DISPLAY 2
DISPLAY 1
[RS-232C IN]
[RS-232C]
[RS-232C OUT] [RS-232C IN]
PC
[RJ-45] [RS-232 OUT] [RS-232 IN]
DISPLAY 1 DISPLAY 2
[RJ-45]
