2 × 150 W class-D power amplifier
V
P
= ±35 V, f
osc
= 345 kHz, 2 × 4 Ω SE configuration.
1 W and 10 W respectively.

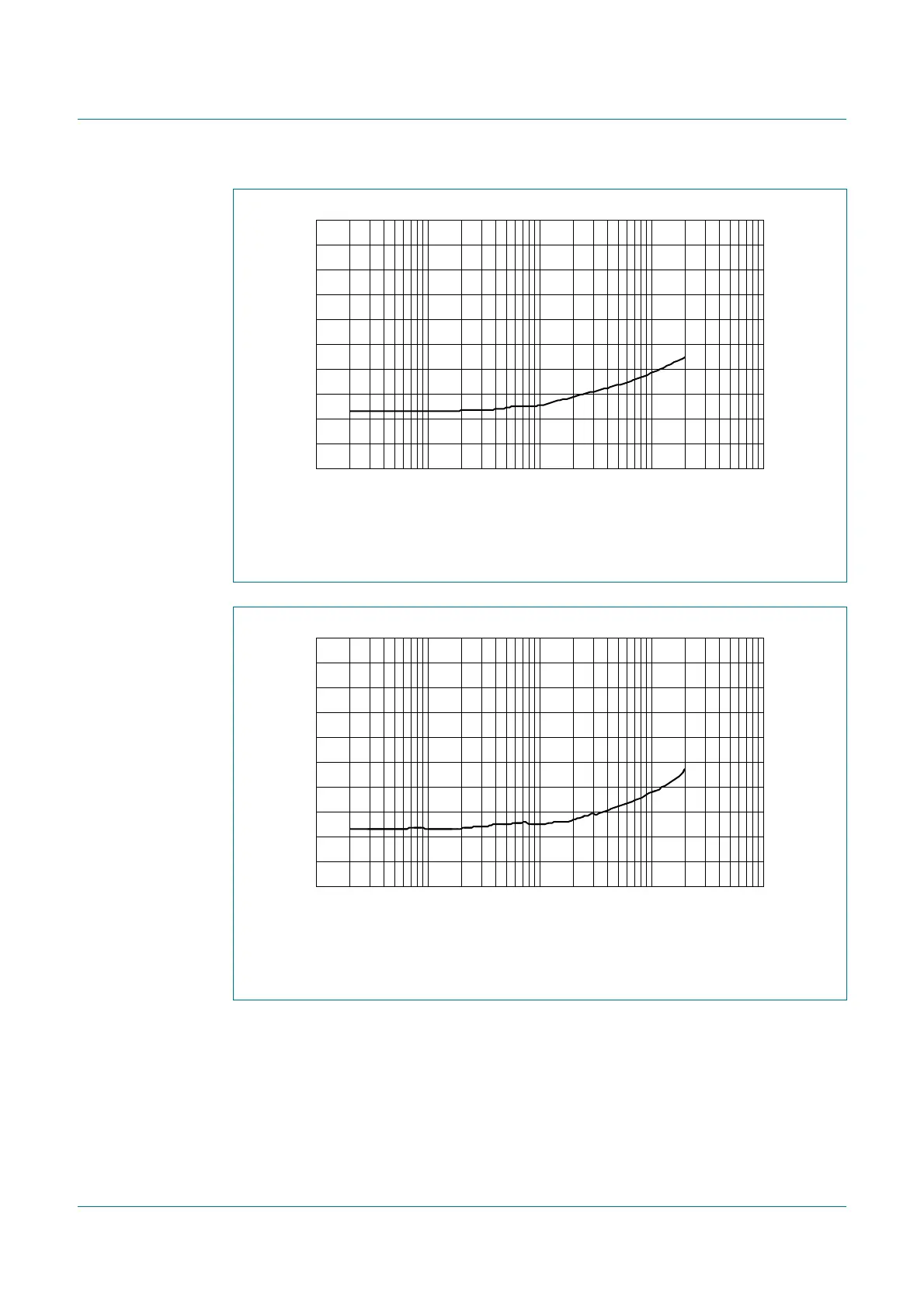

Fig 17. Channel separation as a function of frequency, SE configuration with 2 × 4 Ω load
V
P
= ±35 V, f
osc
= 345 kHz, 2 × 6 Ω SE configuration.
1 W and 10 W respectively.
Fig 18. Channel separation as a function of frequency, SE configuration with 2 × 6 Ω load
