2 × 150 W class-D power amplifier
V
P
= ±35 V, f
osc
= 325 kHz, V
i
= 2 V (RMS).
(1) 8 Ω.
(2) 6 Ω.
(3) 4 Ω.

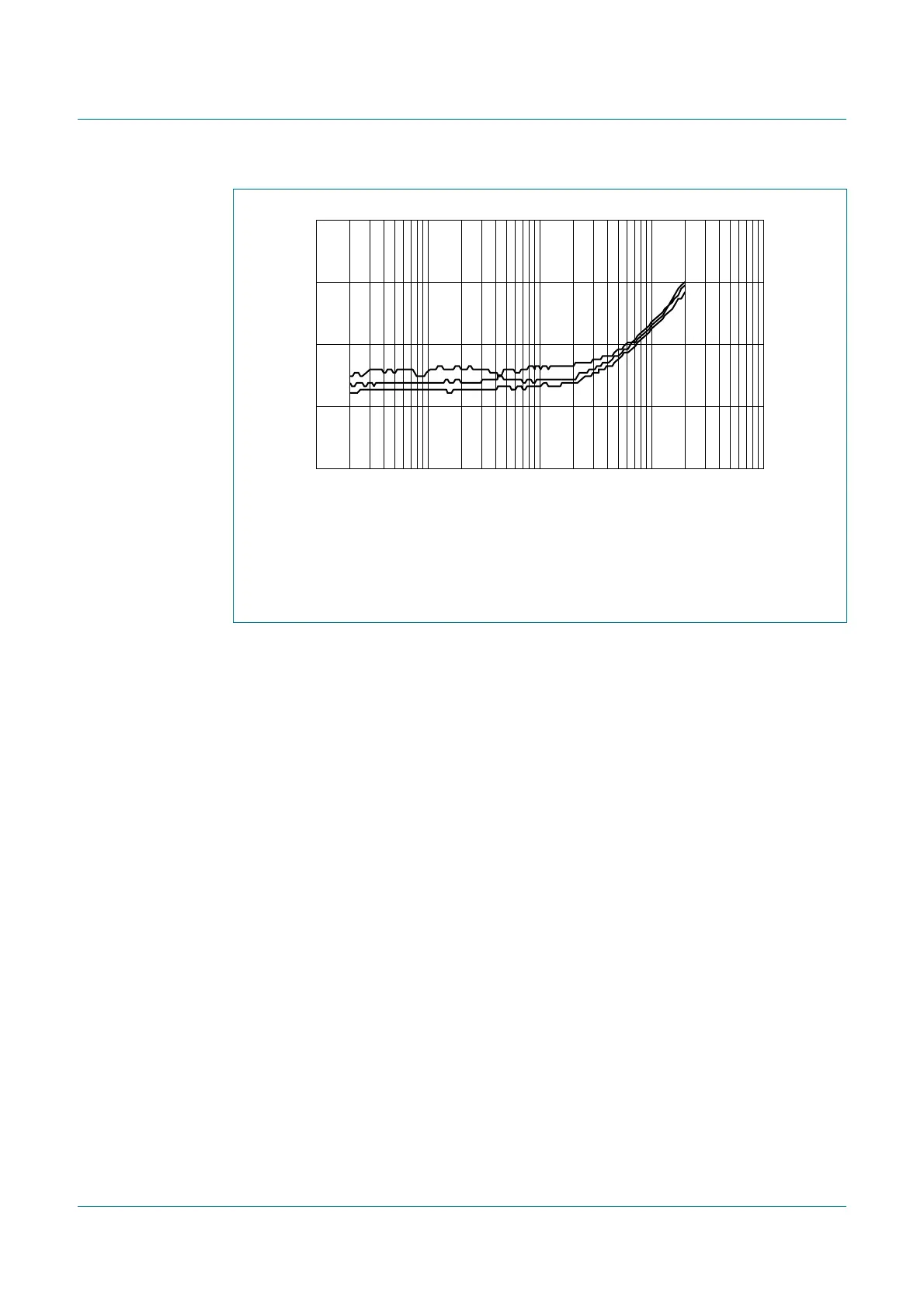

Fig 27. Mute attenuation as a function of frequency
001aai713
f
i
(Hz)
10 10
5
10
4
10
2
10
3
−70
−80
−60
−50
α
mute
(dB)
−90
(1)
(2)
(3)
