Installation
108452_en_01 PHOENIX CONTACT 9 / 50
3 Installation
3.1 Mechanical installation

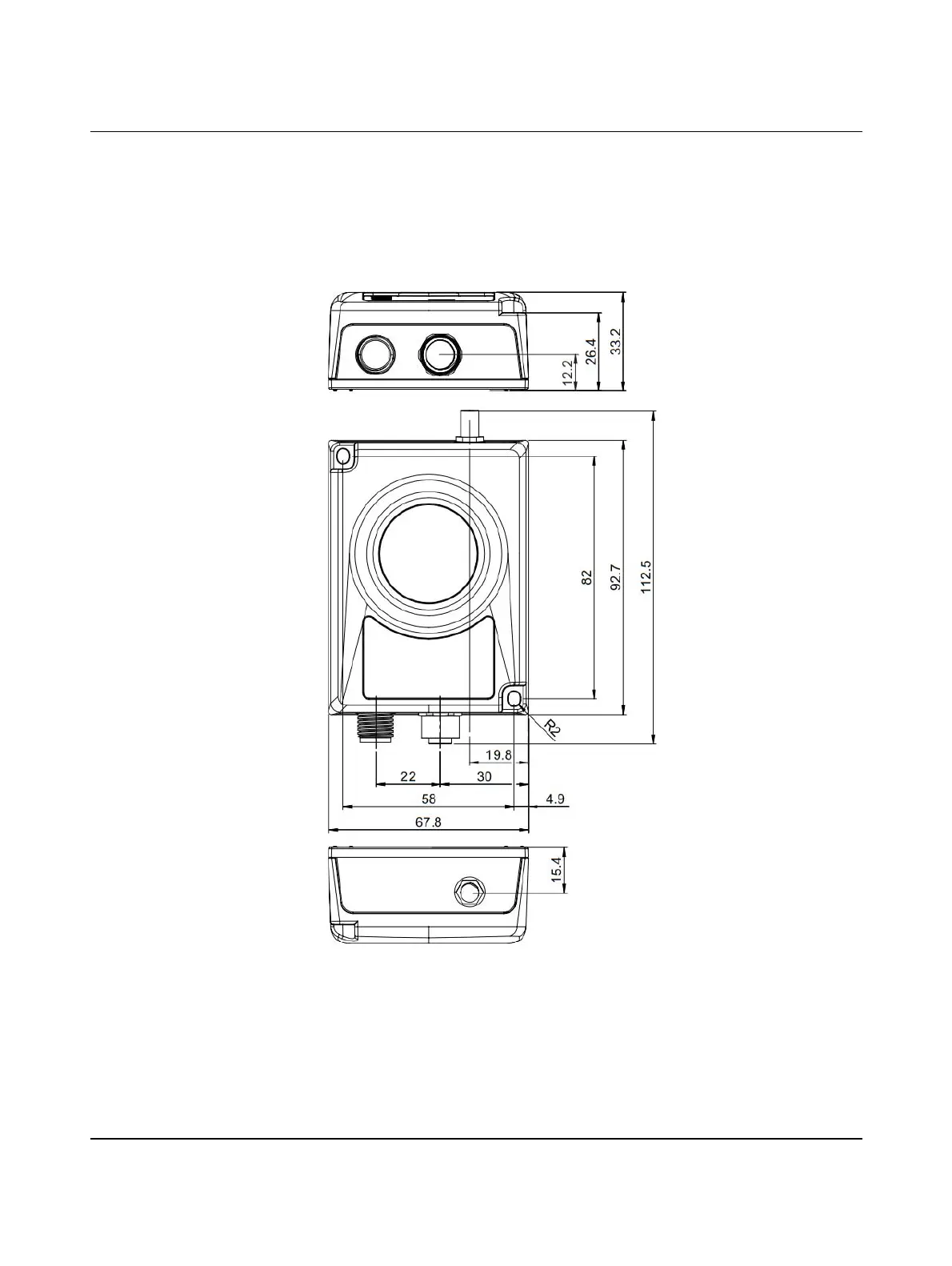

Figure 3-1 Assembly drawing (all dimensions in mm, antenna connection for the
FL EPA 2 RSMA only)
