8.8 Example 8 - 690 V reversing starter with voltage
transducer
To monitor 690 V networks, use the voltage transducer (UT 4-MTDR/ CVC 690/SET, Order
No. 2901667).
8.8.1 Hardware configuration

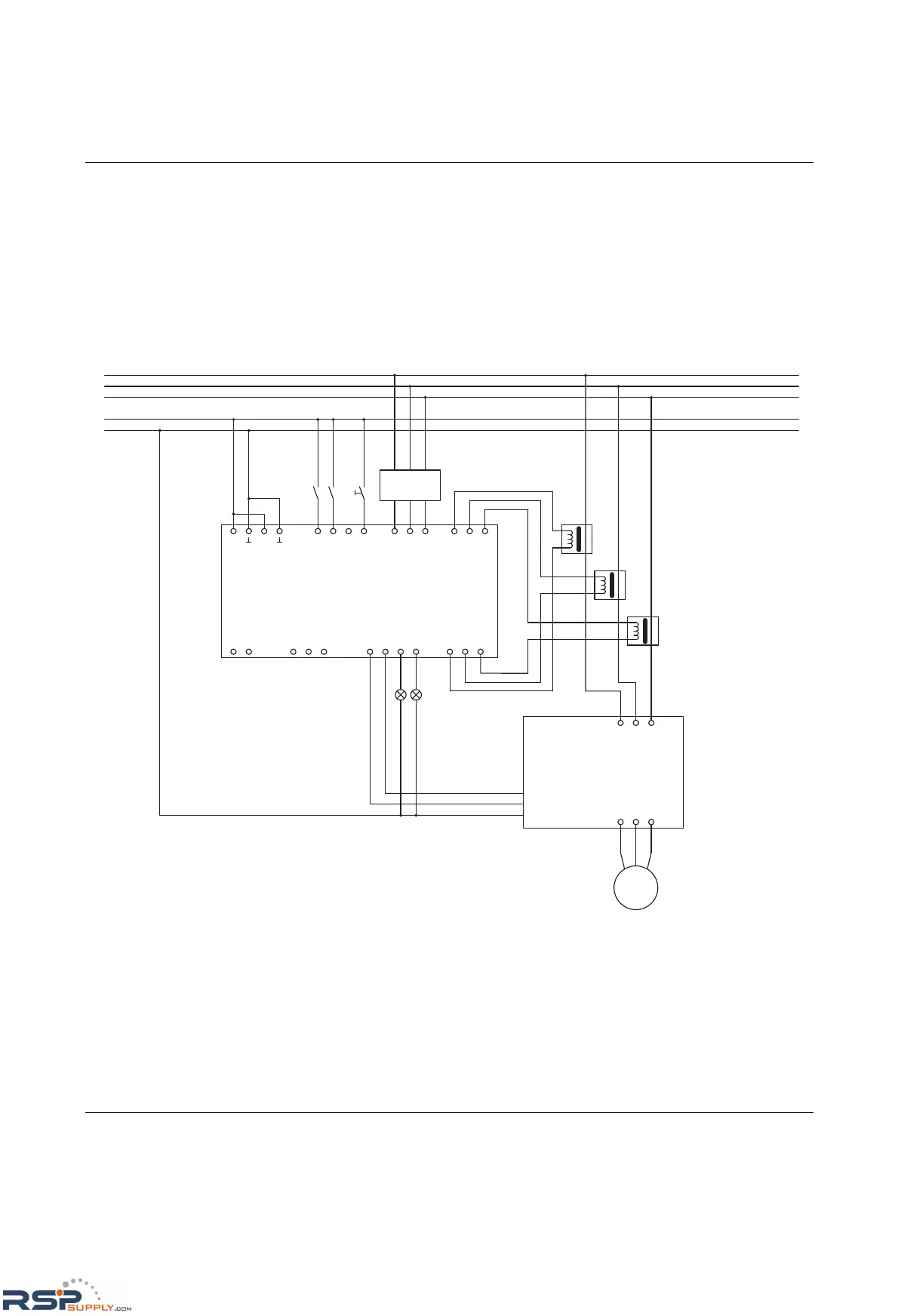

Figure 8-8 Hardware configuration example 8
O1 O2 O3 O4
I12
I22
I32
I21
I31
I11
P1
P2
S2/l
S1/k
P1
P2
S2/l
S1/k
P1
P2
S2/l
S1/k
L1
L2
L3
24 V
0 V
EMM 3-24DC/500AC-IFS
Th1
Th2
V1
V2 V3
U
S
UO
S
O IN1 IN2 IN3 IN4
2/T1
4/T2
6/T3
5/L3
3/L2
1/L1
M
690 V
voltage
transformer
GND
Forward running
Reverse running
Motor: Error
Motor: On
690 V switching module
Reset
3x 50 A transf
ormer
Forward running
Reverse running
