INTERBUS Loop
6057AC01 1-25
Assembling a Cable and Leading It Through the Connector Hood

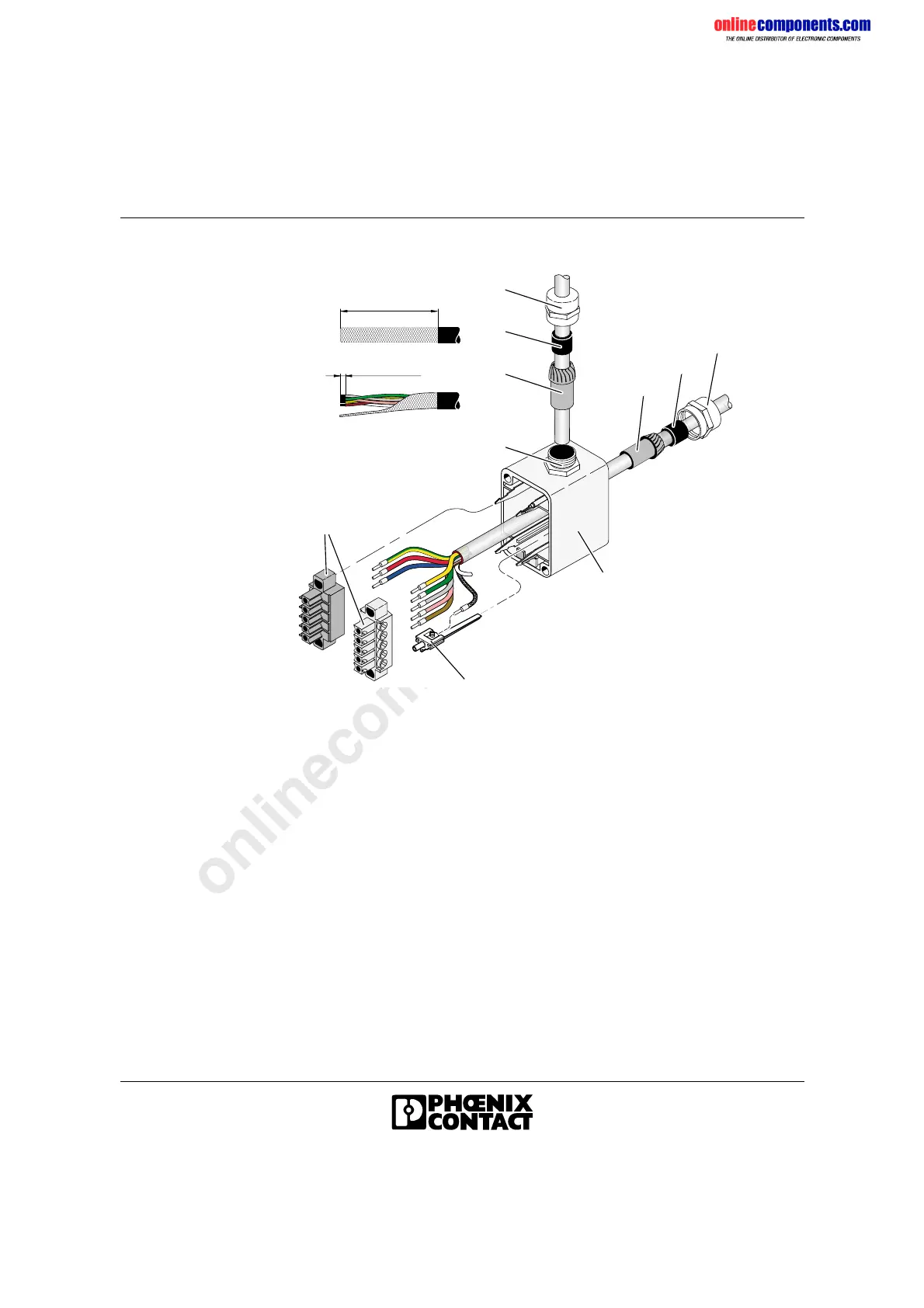

Figure 1-21 Assembling the components of the connector hood
• Push the following parts onto the cable:
Cap (7), flexible ring (6), strain relief (5),
connector hood with the threaded joint (1 and 4)
• Strip 60 mm (2.362 in.) off the outer cable sheath.
• Remove the braided shield from the wires and twist as much of it as
possible together to form one wire.
• Cut off the white wire close to the outer cable sheath, as it is not
required.
• Crimp a ferrule to the end of the wire (braided shield) and connect the
ferrule to the shielding contact (9).
• Strip 6 mm (0.236 in.) off the conductor ends and fit ferrules at the
ends.
• Push the wires into the contacts of the MINI-COMBICON connector
and tighten the screws with a screwdriver.
5
6
7
1
8
4
7
6
5
5 7 9 6 0 4 0 3
6 0 m m ( 2 . 3 6 2 " )
6 m m ( 0 . 2 3 6 " )
A
B
9
