BRIDGE MONO
This mode is for those who need high level output. It combines the power of both channels to produce the maximum amount
of power the unit can handle. Make sure your speaker can handle the higher wattage this mode offers.
Remember, the minimum impedance requirement is 4 ohm.
When using bridge mono mode, ensure only Channel 1 input is in use. When using speakon connectors, treat PIN 1+ as
the “+” and PIN 2+ as the “-”; when using binding posts, treat Channel 1 + as the “+” and Channel 2 + as the “-”. Do not use
Channel 2’s speakon output in this mode. When bridge mono, the gain control of Channel 1 controls the total level output

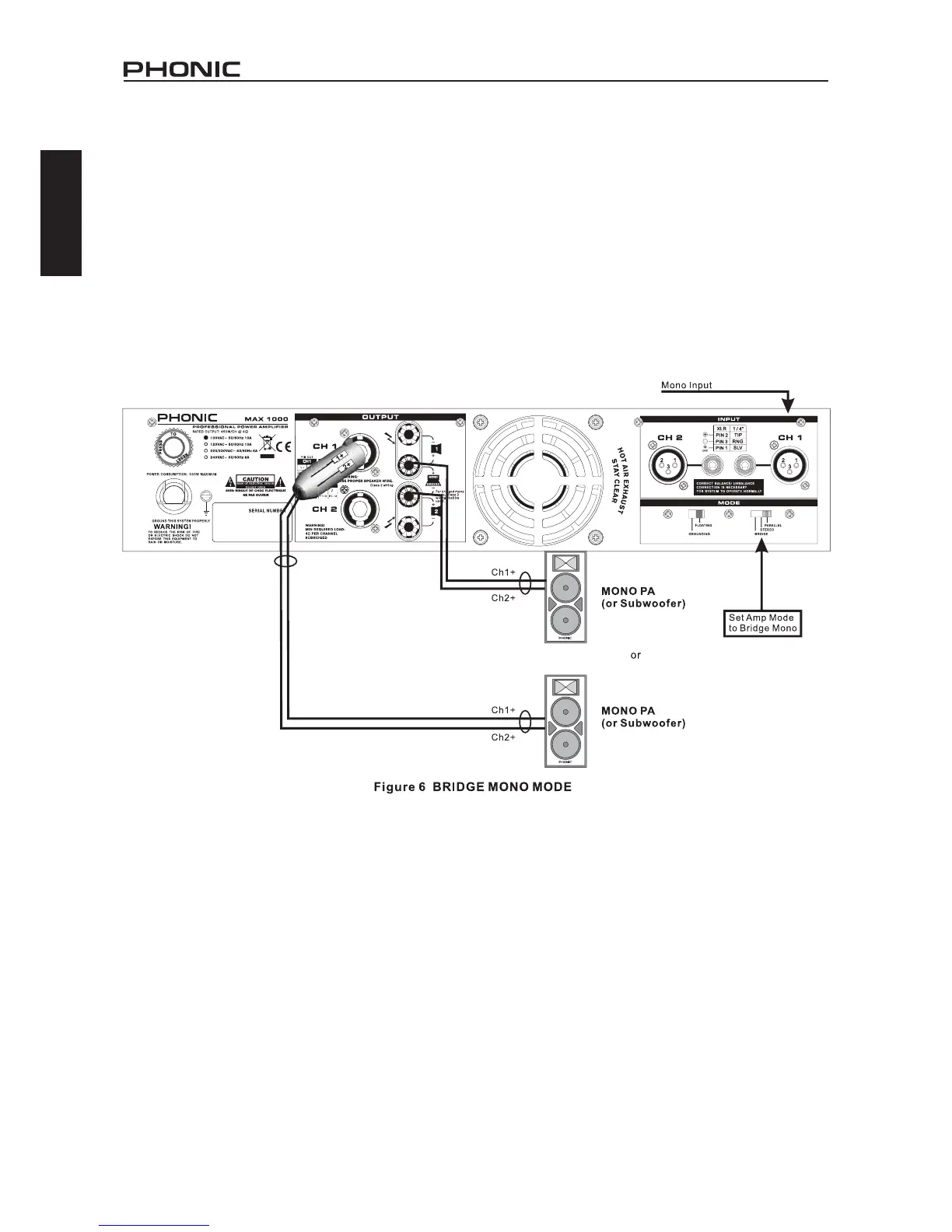

(see Figure 6).
WARNING: Bridge mono operation produces higher current output than the other two operations, thus make sure the gain
is set at the proper level and speakers being used can handle the wattage amplier produce. Proper attention to wiring is
greatly needed to prevent experiencing electric shock.
