Installation Guide
If you are not sure how to install this unit correctly, contact a qualied technician.

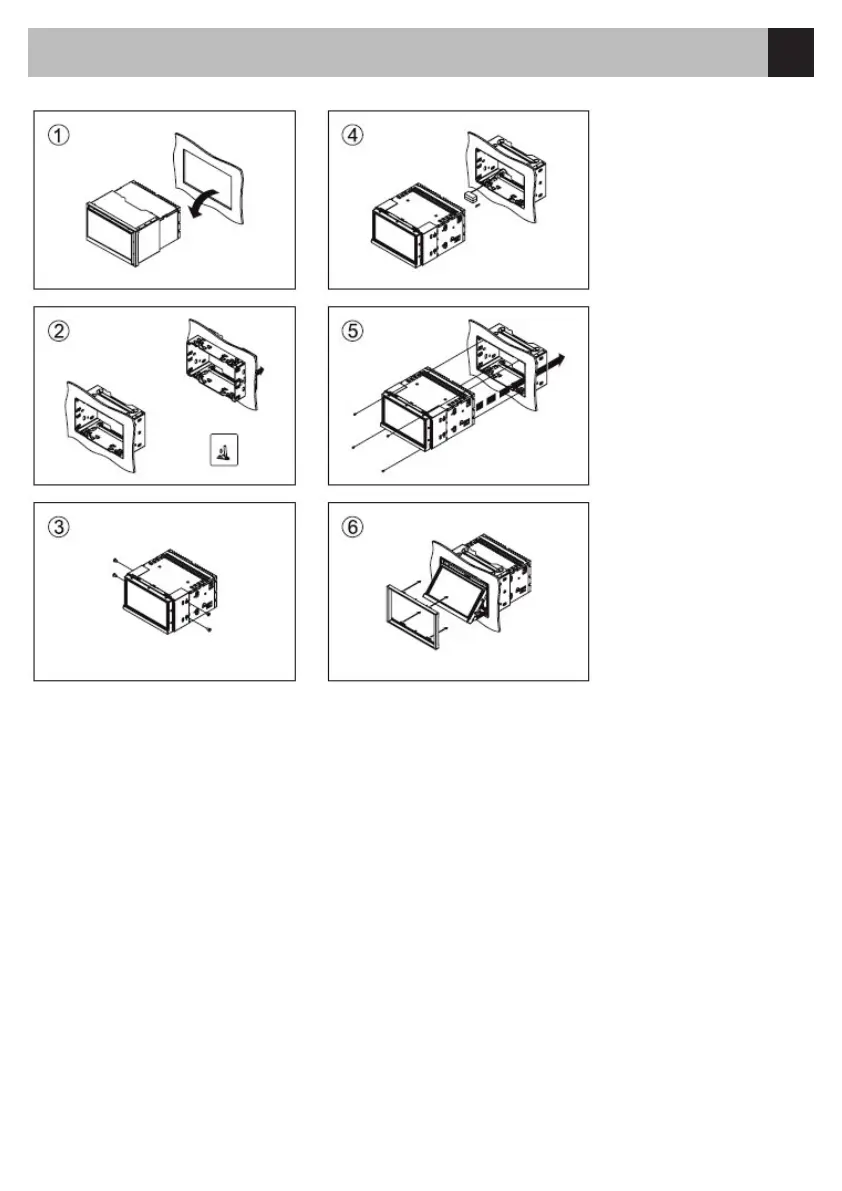

Installation Procedures
1. Remove other audio system from the car.
2. Insert mounting collar into the dashboard.
3. Attach the brackets to the main unit.
Make sure to use the supplied at head screws (M5x6mm).
4. Do the required electrical connections.
5. Install the main unit in the dashboard.
Make sure to use the supplied pan at head screws
(M2.6x5mm).
6. Turn on the unit and slide down the panel, then attach the trim plate.
