Phonocar vm 032 - It-Gb; Connessioni; Connections

4
IT/GB

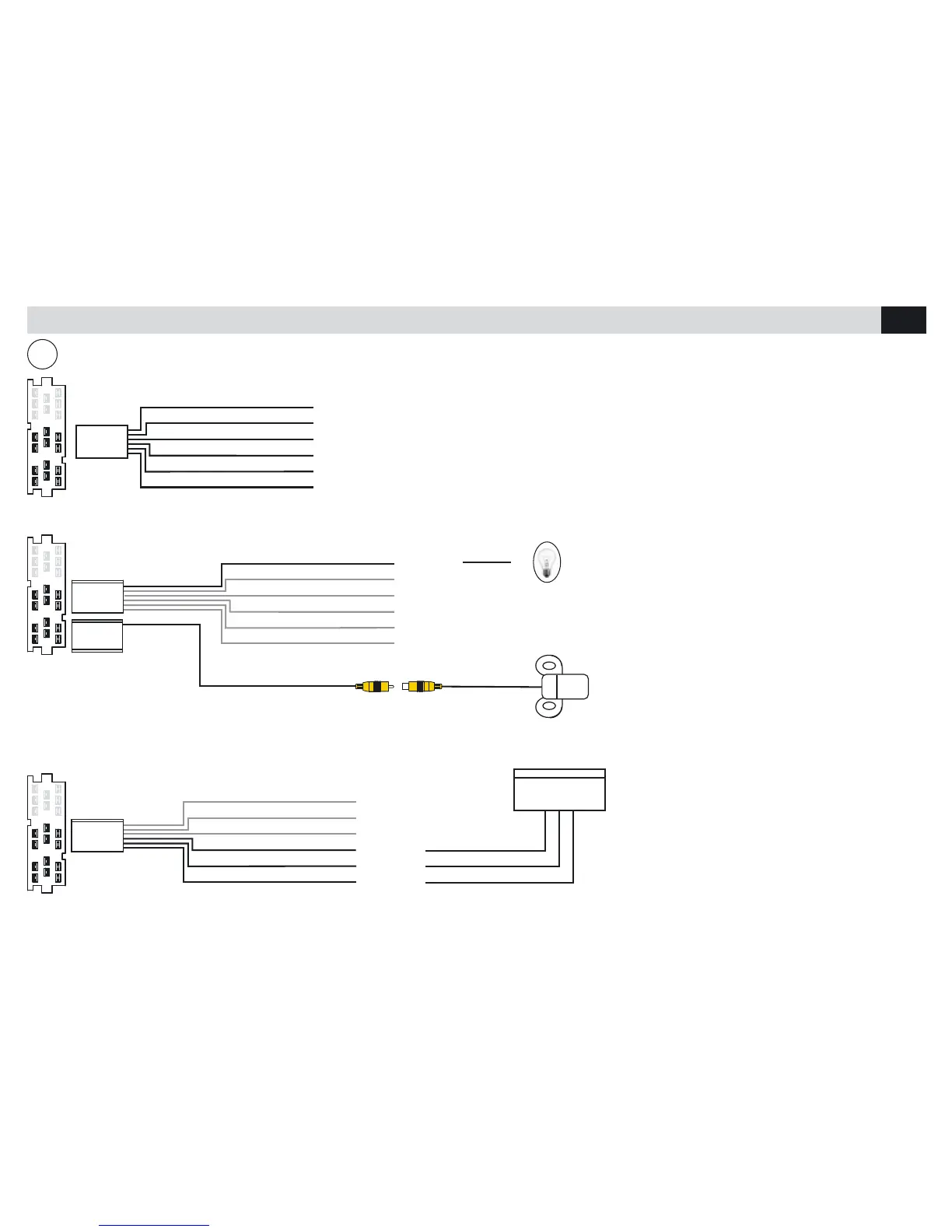

CONNESSIONI • CONNECTIONS
ROSA/PINK
BLU/BLUE
VERDE/GREEN
MARRONE-NERO/BROWN-BLACK
ARANCIONE-BIANCO/ORANGE-WHITE
MARRONE-BIANCO
BROWN-WHITE
GIALLO
YELLOW
VERDE
GREEN
CAMERA
REVERSE
P.CONT
BRAKE
KEY GND
KEY A
KEY B
REVERSE
P.CONT
BRAKE
KEY GND
KEY A
KEY B
+
Luci di retromarcia / Lights for Reverse-gear
Collegamenti per Retrocamera / Connections for Rear-Camera
SERVIZI
FUNCTIONS
Collegamenti per Comandi al Volante Resistivi
Connections for Resistive Steering-wheel Commands
CONNETTORE AUTO
CAR CONNECTORS
Per i collegamenti al connettore auto originale utilizzare gli schemi pre-
senti sul manuale istruzioni dell’interfaccia 4/083.
When connecting to the original car-connector, please refer to the
connection-schemes shown in the Instructions Manual of Interface 4/083.
Corrispondenza colore cavi / Combination of Cable-colours
VM036 4/083
MARRONE-NERO / BROWN-BLACK ..........➡ ........VERDE / GREEN
ARANCIONE-BIANCO / ORANGE-WHITE .. ➡ ...........ROSA / PINK
MARRONE-BIANCO / BROWN-WHITE ........➡ .........GRIGIO / GREY
Per gli schemi che utilizzano un solo cavo è necessario collegare il cavo
MARRONE-NERO a massa.
When the connection-scheme involves one only cable,
the BROWN-BLACK cable has to be connected to the GROUND.
ROSA/PINK
BLU-BIANCO/BLUE-WHITE
VERDE-BIANCO/GREEN-WHITE
MARRONE-NERO/BROWN-BLACK
ARANCIONE-BIANCO/ORANGE-WHITE
MARRONE-BIANCO
BROWN-WHITE
REVERSE
P.CONT
BRAKE
KEY GND
KEY A
KEY B
Attivazione retrocamera
Remote amplificatore
Freno a mano (collegamento obbligatorio)
Massa Comandi al volante
Linea A Comandi al volante
Linea B Comandi al volante
VERDE
GREEN
1
Rear-Camera Activation
Amplifier Remote
Hand-Brake (connection absolutely necessary)
Ground for Steering-wheel Commands
Line A Steering-wheel Commands
Line B Steering-wheel Commands
VERDE
GREEN
ROSA/PINK
BLU-BIANCO/BLUE-WHITE
VERDE-BIANCO/GREEN-WHITE
MARRONE-NERO/BROWN-BLACK
ARANCIONE-BIANCO/ORANGE-WHITE
MARRONE-BIANCO
BROWN-WHITE
