PI N470 Series User Manual

3 Product Description
N-470 Linear Actuator MP125E Version: 1.2.0 11
N-470 models with clamping shank
The description of the product components is also valid for models with turned cable exit.

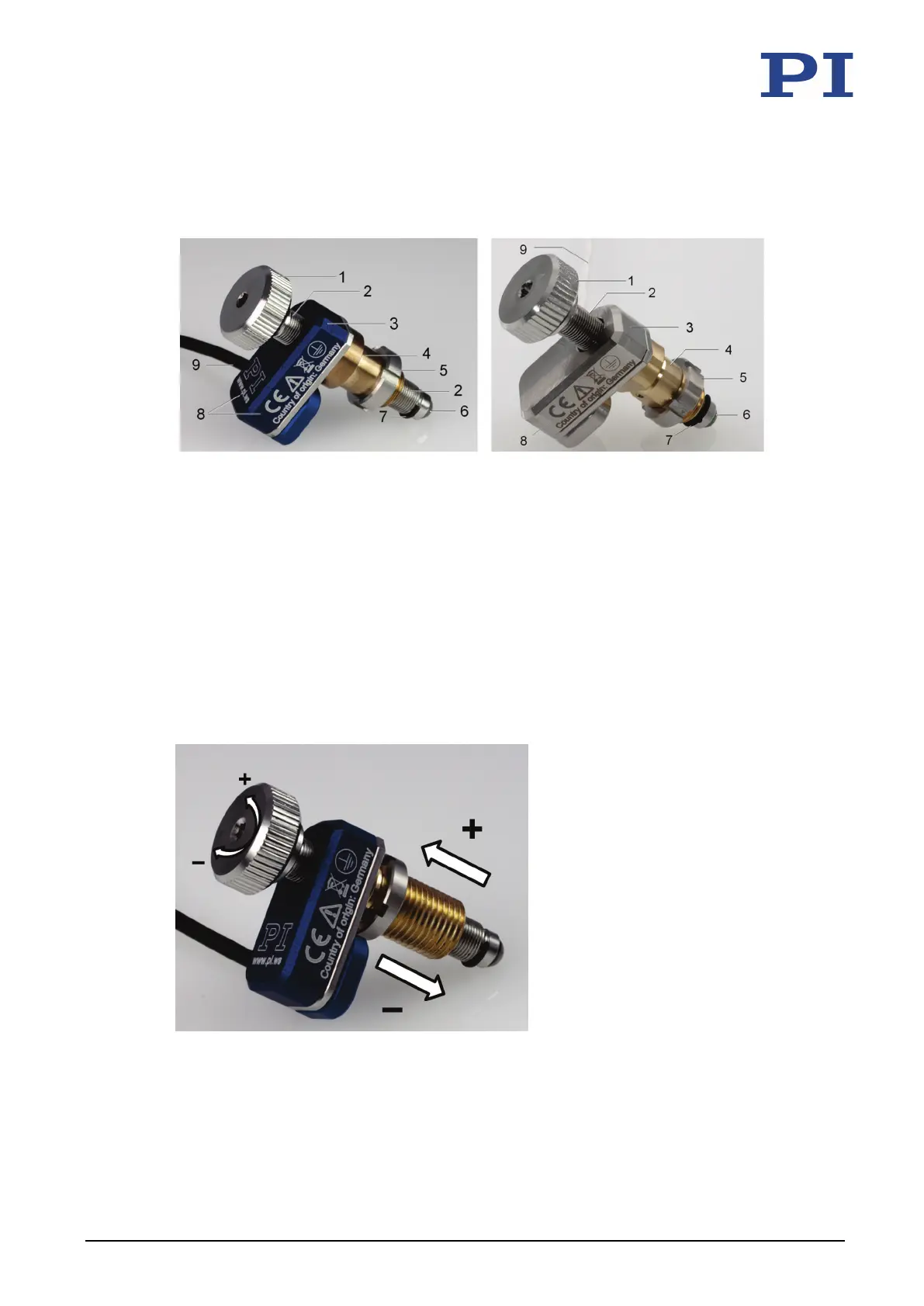

Figure 2: Models with clamping shank and standard cable exit (left: N-470.x20; right: N-470.x2V)
1 Screw head
2 Fine-threaded screw (rotating)
3 Base body
4 Clamping shank (9.5 mm diameter, 6 mm clamping width)
5 M9×1 mounting nut
6 Ball tip for connecting to the moving part of the mechanical mounting
7 Unscrew lock (circlip) for fine-threaded screw
8 Product labeling
9 Cable for connecting to the electronics
Directions of Motion
Figure 3: Directions of motion of the N-470
Pay attention to further information on the operating conditions in the "Technical Data" section
(p. 35).
