PI N470 Series User Manual

10 Technical Data
N-470 Linear Actuator MP125E Version: 1.2.0 39
10.2 Step Size and Axial Force
The following graph shows the step size of the N-470 against various axial forces. The influence
of different axial forces on the step size is relatively minor. The active feed force is specified as
22 N (see "Technical Data" (p. 35)).

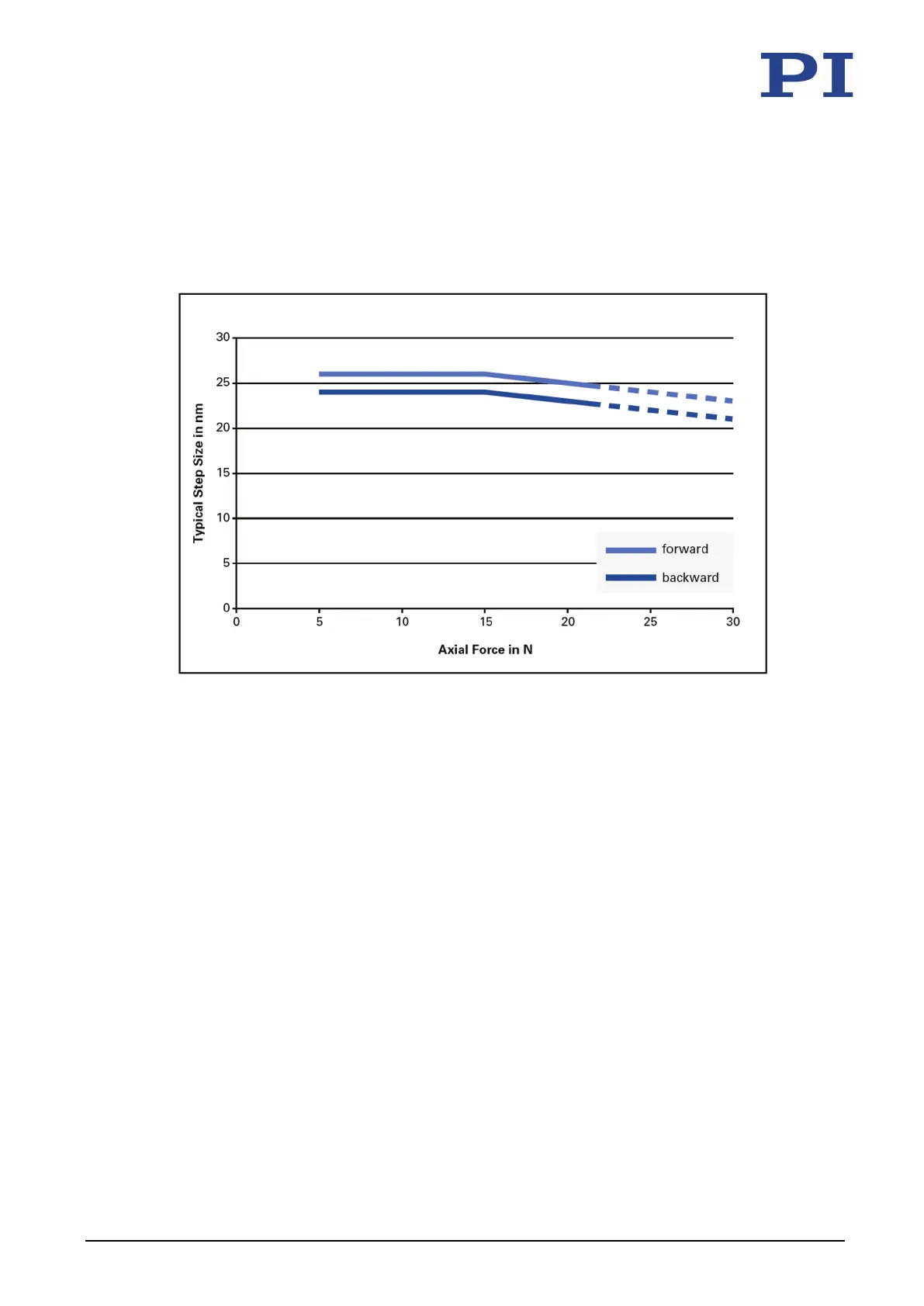

Figure 11: Typical step size in nm vs. axial force in N
