PI N470 Series User Manual

10 Technical Data
46 Version: 1.2.0 MP125E N-470 Linear Actuator
10.6 Pin Assignment
A LEMO connector is used for connecting to the drive electronics:
 Models that are not suitable for use in a vacuum: The connector is located directly on
the cable of the N-470.
 Vacuum-compatible models: The connector is on the air-side cable (p. 13). The ends of
the cable on the vacuum and air side of the N-470 have stranded wires for connecting
to a vacuum feedthrough (p. 22).

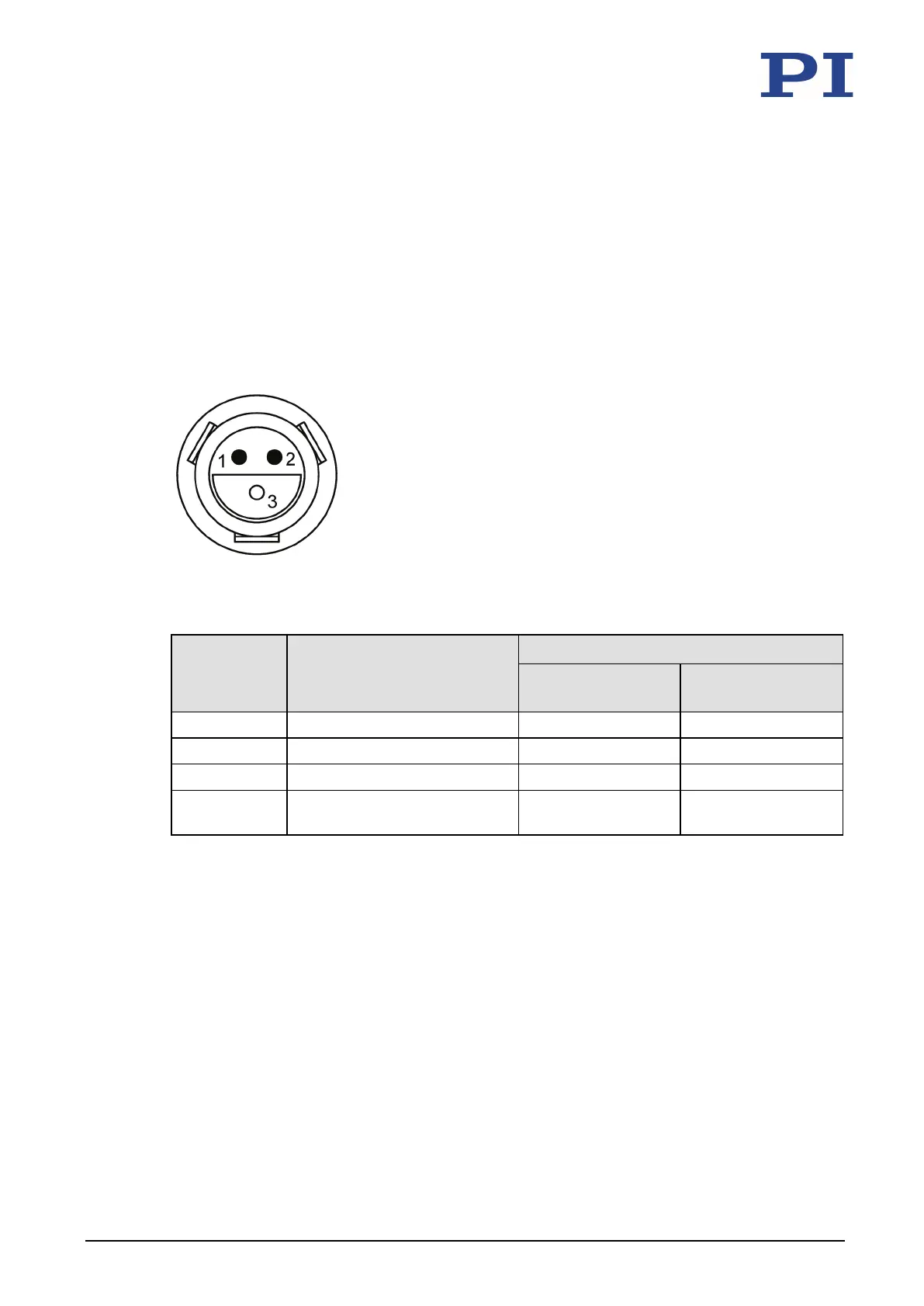

Figure 19: LEMO connector, 3-pin
Pin Function Wire colors for vacuum-compatible models
Cable on the vacuum
side
Cable on the air side
1 Input: Piezo + (0 to 80 V) Red White
2
Input: Piezo - (GND)
Black
Brown
3
Not connected
---
---
Cable shield Connected to the connector
shell
Bare Bare
