PI N470 Series User Manual

5 Installation
22 Version: 1.2.0 MP125E N-470 Linear Actuator
5.3 Preparing a Vacuum-Compatible N-470 for Connecting to the
Electronics

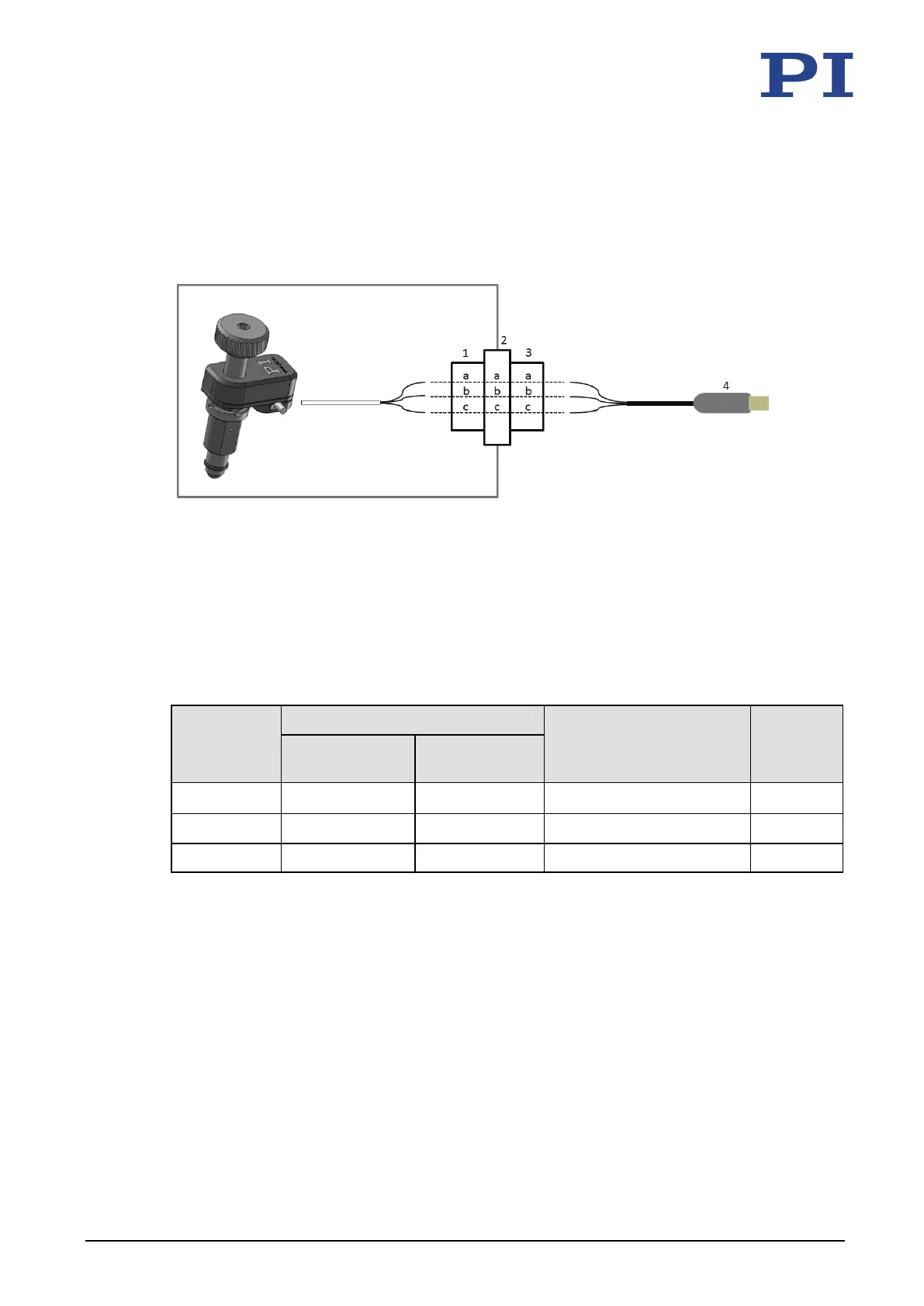

Figure 10: Vacuum-compatible N-470: Connections for the vacuum feedthrough
1 Vacuum-side connector for the N-470's cables
2 Vacuum feedthrough
3 Connector for the K030B1063 air side cable (p. 13)
4 LEMO connector, 3-pin, see "Pin Assignment" (p. 46)
Assigning the stranded wires and the cable shield
Letter Wire color Function Signal
Vacuum-side
actuator cable
Air-side
connecting cable
a
Red
White
Piezo voltage 0 to 80 V
PIEZO+
b Black Brown Piezo voltage ground PIEZO-
c --- --- Bare cable shield ---
Requirements
 You have read and understood the general notes on installation (p. 17).
 The cable on the air side of the N-470 is not connected to the electronics.
Tools and accessories
 Suitable vacuum feedthrough
 Air side and vacuum side connector (male or female) for vacuum feedthrough
 K030B1063 air side cable (p. 13)
 Suitable tools for wiring the connectors
