PI N470 Series User Manual

10 Technical Data
44 Version: 1.2.0 MP125E N-470 Linear Actuator
10.5 Dimensions
Dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.
10.5.1 Models with Turned Cable Exit
INFORMATION
The dimensional drawings in the subsequent sections show the N-470.xxx models with
standard cable exit, but also apply to the N-470.xxxY models with turned cable exit.
 Take note: In the case of the N-470.xxxY models, the cable exit is located exactly opposite
to the position shown in the dimensional drawings.
10.5.2 Models with M10×1 Thread

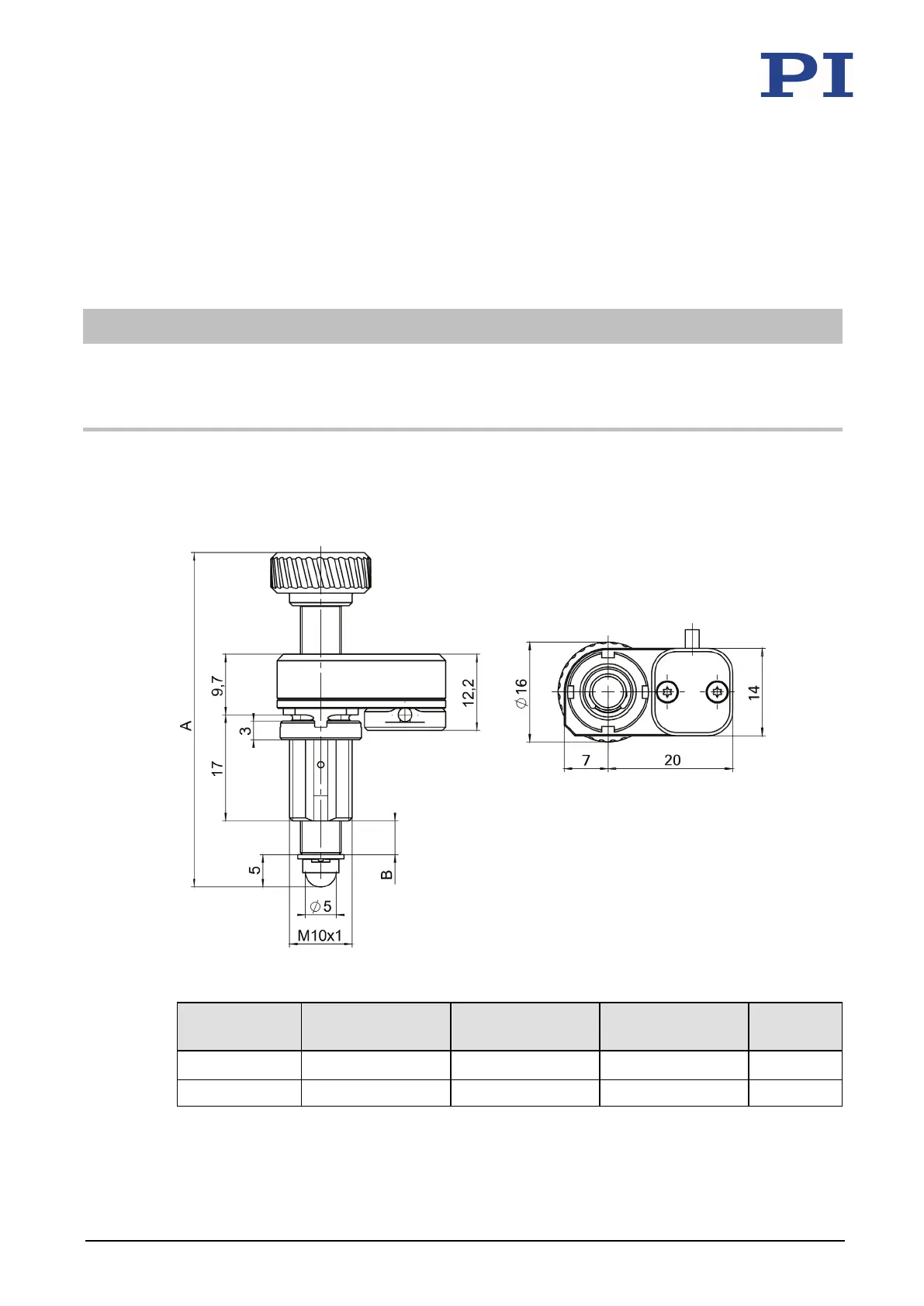

Figure 17: Dimensions N-470.x1x
N-470.11x
N-470.11xY
N-470.21x
N-470.21xY
N-470.41x
N-470.41xY
Unit
A 48 53.5 68.5 mm
B (travel range) 7.5 13 26 mm
