PI N470 Series User Manual

3 Product Description
10 Version: 1.2.0 MP125E N-470 Linear Actuator
3.2 Product View
N-470 models with M10×1 thread
The description of the product components is also valid for models with turned cable exit.

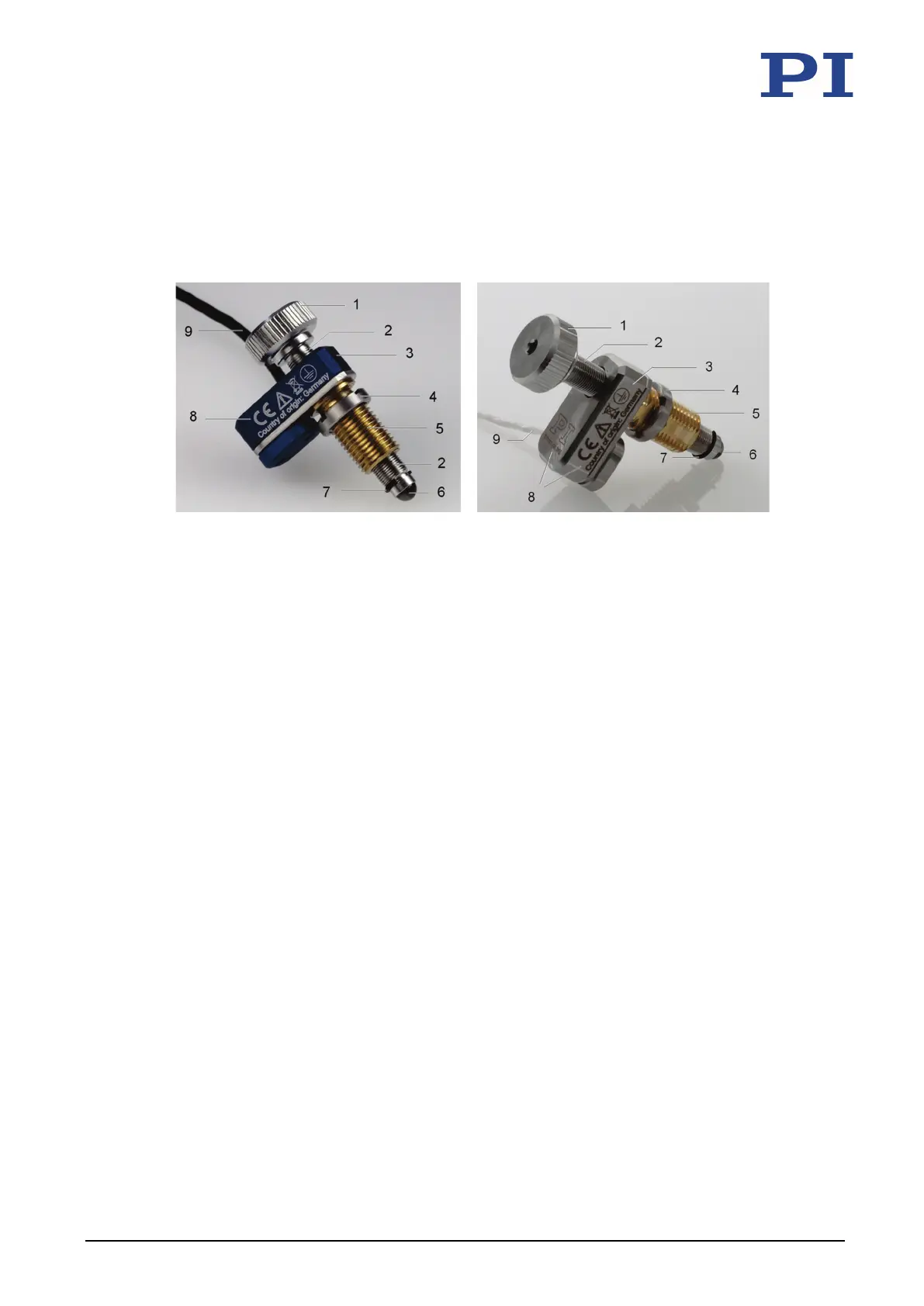

Figure 1: Models with thread and standard cable exit (left: N-470.x10; right: N-470.x1V)
1 Screw head
2 Fine-threaded screw (rotating)
3 Base body
4 M10×1 mounting nut
5 M10×1 mounting thread
6 Ball tip for connecting to the moving part of the mechanical mounting
7 Unscrew lock (circlip) for fine-threaded screw
8 Product labeling
9 Cable for connecting to the electronics
