PI N470 Series User Manual

5 Installation
N-470 Linear Actuator MP125E Version: 1.2.0 19
5.2 Installing the Linear Actuator into a Mechanical Mounting and
Connecting it to the Protective Earth Conductor
INFORMATION
The contact of the N-470 to the protective earth conductor is established via the contact of the
mounting nut or thread or clamping shank to a sufficiently conductive mechanical mounting.
The mechanical mounting must be connected to the protective earth conductor.
INFORMATION
 Pay attention to the applicable standards for connecting the protective earth conductor.

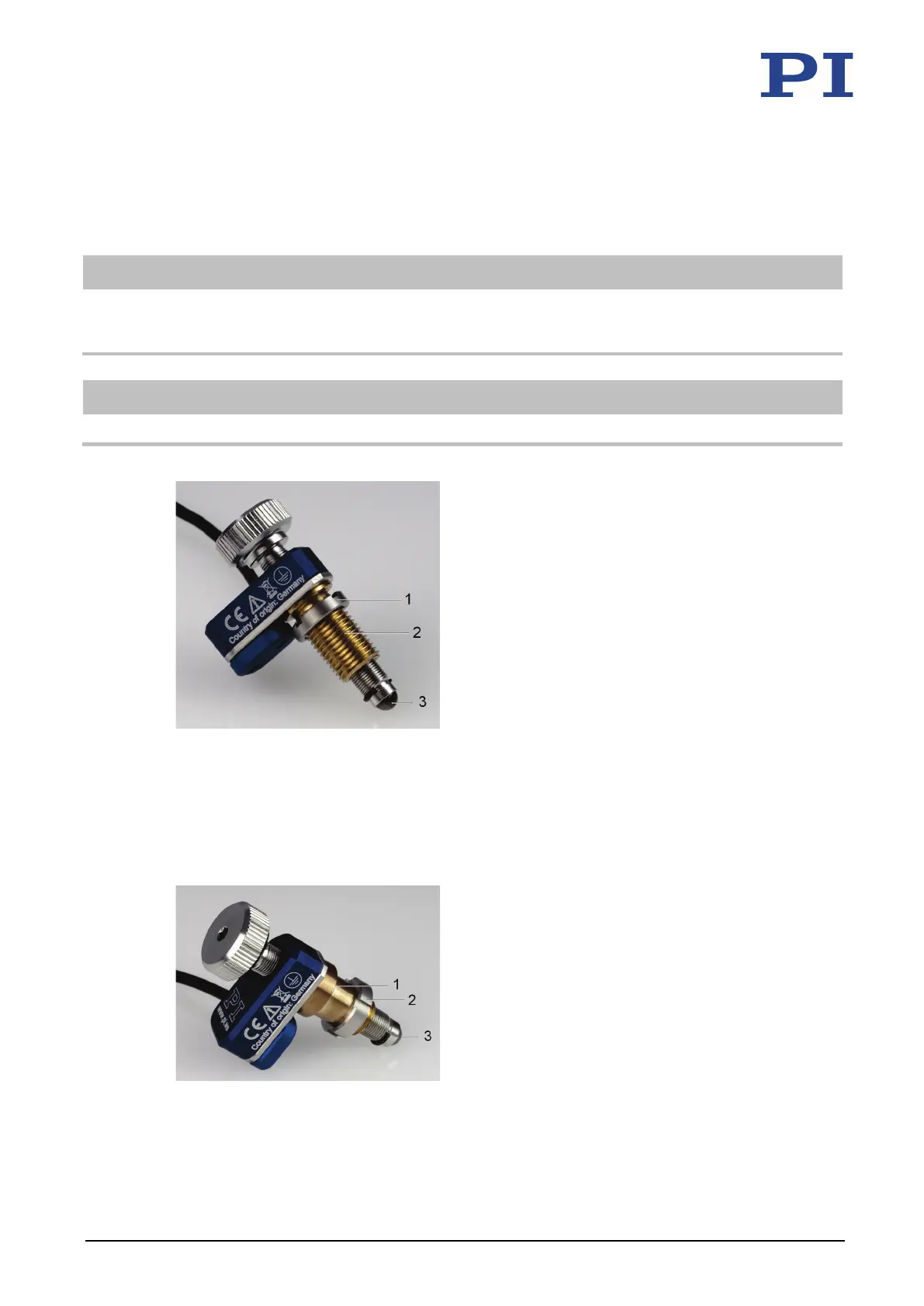

Figure 7: Models with thread: Relevant components for installation in the mechanical mounting
(presently: N-470.x10)
1 M10×1 mounting nut
2 Mounting thread
3 Ball tip
Figure 8: Models with clamping shank: Relevant components for installation in the mechanical
mounting (presently: N-470.x20)
1 Clamping shank, diameter: 9.5 mm, clamping width: 6 mm
2 M9×1 mounting nut
3 Ball tip
