PI PiezoWalk E-712 - Parameters for Piezowalk Drive Performance

User Manual
E712T0010, valid for E-712.N1, E-712.1AM, E-712.1AN, .2AN, .3AN
CMo, BRo, 10/31/2024
Physik Instrumente (PI) SE & Co. KG, Auf der Römerstraße 1, 76228 Karlsruhe, Germany page 24 / 40
Phone +49 721 4846-0, fax +49 721 4846-1019, e-mail info@pi.ws, www.pi.ws
7.2.2 Parameters for PiezoWalk® Drive Performance

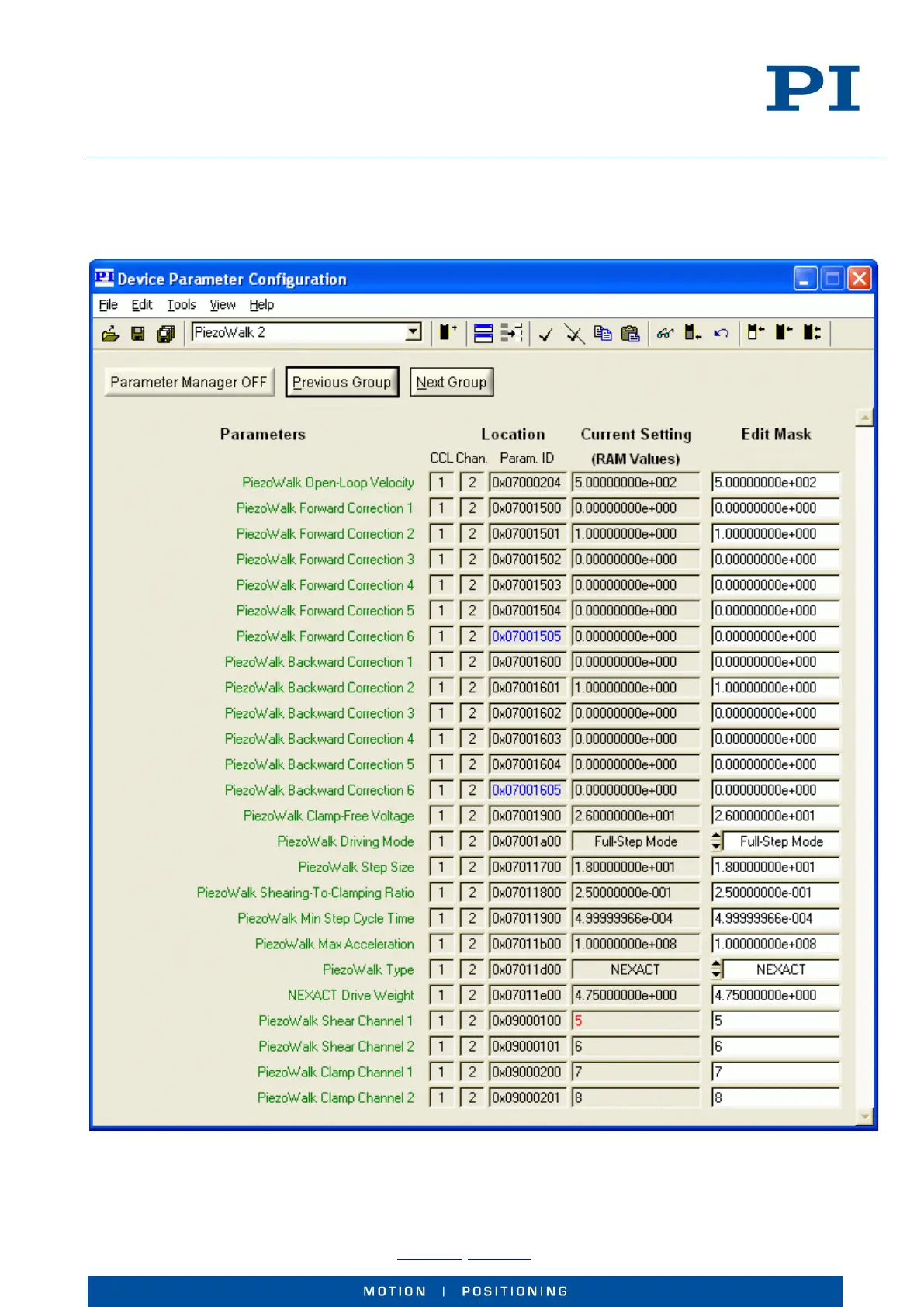

Fig. 15: Parameters for PiezoWalk® drive performance; a NEXACT® drive is connected to PiezoWalk
channel 2
